DAHOMETER AR-250CE Wood Density Tester weighing up to 250g

DAHOMETER AR-250CE Wood Density Tester Maximum weighing 250g, weighing accuracy 0.001g, Density readability 0.0001 g/cm3, measurement range 0.0001~ 99.9999g/cm3, Density measurement platform aluminum alloy forming, the results show wood air dry Density, through drying Density, Basic Density, measurement principle Archimedes principle Buoyancy method

Brand

SKU: NB017845

DahoMeter

Model

AR-250CE

Get Quote

DahoMeter shop

Information

Datasheet

What else did others buy

Genuinegoods

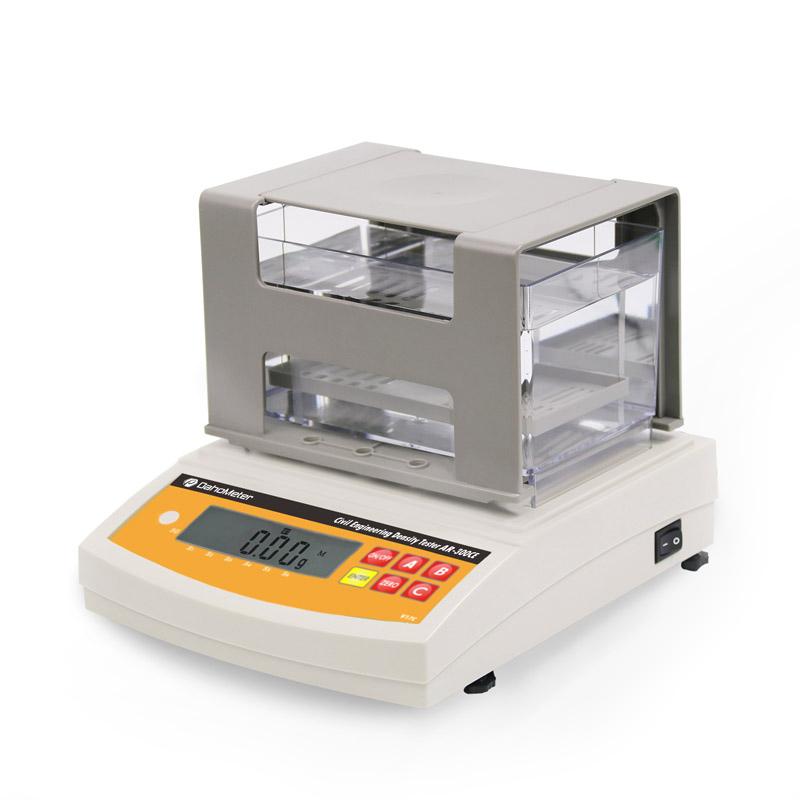

DahoMeter AR-250CE Density TesterOverview
Specifications
Comments
FAQs

AR-250CE

Density Tester

Introduction

AR series density meter is a new series of products launched by Dahometer brand based on years of density measurement technology through simplified functions, optimized structure, and enhanced practicality; it has the characteristics of good measurement repeatability, high precision, and simple operation...etc.

Mainly for

Furniture industry, timber, civil engineering, engineering construction, research laboratories, etc., according to: GB/T1933-2009, ASTM, JIS, ISO standards, can quickly measure the W% air-dry density of wood, 12% air-dry density (standard air dry density), total dry density, and basic density.

Features and Benefits

All kinds of wood can be measured

Anyone can easily operate

 Fast measurement, good stability

Use water as medium, also can use other liquid medium

Large-capacity PC material sink

With actual water temperature compensation function

 Equipped with special windproof and dustproof cover

 Can be adapted to workshops, laboratories and other places

Models

model		AR-300CE	AR-600CE	AR-900CE	AR-1200CE	AR-2000CE	AR-3000CE	AR-150CE	AR-250CE
Maximum weighing		300g	600g	900g	1200g	2000g	3000g	150g	250g
Weighing accuracy		0.01g						0.001g
density	readability	0.001 g/ ^cm3						0.0001 g/ ^cm3
	scope	0.001~99.999g/ ^cm3						0.0001~99.9999g/ ^cm3
	measuring platform	ABS injection molding						Aluminum alloy forming
The results show		Wood air-dry density, full-dry density, basic density
Principle		Archimedes' principle of buoyancy
sink		Conventional: one-piece injection molding professional transparent measuring tank (dimensions: length 16.9 mm × width 9.8 mm × height 8.3mm )
		Customization: Sinks of different sizes can be customized according to the measured product size
parameter setting		Water temperature setting, measurement medium density setting, waterproof treatment medium density setting
Calibration method		One-button calibration, automatic detection

DahoMeter AR-250CE Density TesterSpecifications

LIST	VALUE
Maximum weighing	250g
weighing Accuracy	0.001g
Density readability	0.0001g/cm³
Density Measurement range	0.0001~99.9999g/cm³
Measurement Platform	Aluminum alloy forming
Results show	Wood Air Density, Total Density, Basic Density
Measurement principle	Archimedes principle buoyancy method
sink	Integrated injection molding professional transparent measurement sink
parameter setting	Water temperature setting, measurement medium Density setting, waterproof treatment medium Density setting
Correction method	Single key correction, automatic detection
Power	AC100V~240V 50HZ/60HZ
Gross Weight	4.5kg
Dimensions	425175325mm
Sink size	16.99.88.3mm
Density Measurement range	0.0001~99.9999g/cm³

DahoMeter AR-250CE Density Tester Packing list

Host X1, sink X1, measurement table X1, forceps X1, thermometer X1, weight X1, windproof dust cover X1, floating body accessories X1, power transformer X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Are all Density Testers available for inspection in the GB/T3850 standard?

[A]

Not necessarily, but this AR-250CE Density Tester can be considered.
