LHS-100CA constant temperature and Humidity Test ChamberIntroduction
A constant LHS-100CA constant temperature and Humidity Test Chamber is a vertical constant temperature and Humidity Test Chamber containing a refrigeration system, the input power of LHS-100CA constant temperature and Humidity Test Chamber is 2300W, the temperature control range is -20~85 °C, and the temperature resolution is 0.1 °C. All fluorine-free design, environmental protection and health; Stainless steel liner is durable and anti-corrosion.
Product Applications
LHS-100CA constant temperature and Humidity Test ChamberIt can be widely used in sterility testing, stability testing, and raw material performance, product packaging, and product life testing of industrial products.
Features and advantages
● The new fluorine-free design makes you always walk in front of a healthy life.
● Mirror stainless steel liner is used, the four corners of the semi-circular arc are easy to clean, and the shelf spacing in the box is adjustable.
● Microcomputer temperature and humidity controller, using TMHM balanced temperature and humidity control method, stable operation, accurate temperature and humidity controlSafe and reliable. Controllers, compressors and other key components are imported products.
● It is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment and no accidents.
● There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and temperature measurement.
● It can be equipped with a Recorder to record the temperature and humidity running curve. (Optional)

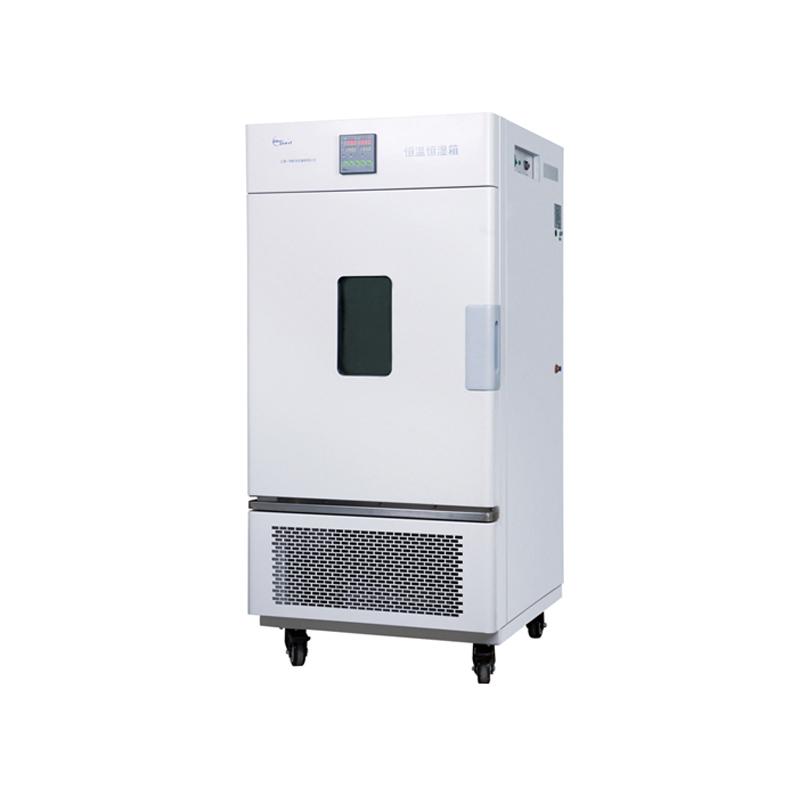

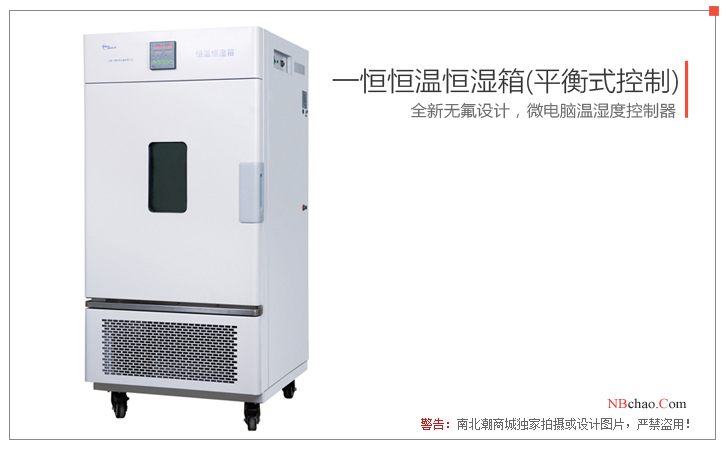

Actual picture of the product
YiHeng Constant Temperature and Humidity ChamberSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | -20~85℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Humidity Control Range | 45~95%R.H |
| Humidity Deviation | ±3%R.H |
| Input Power | 2300W |
| Environmental temperature | 5~30℃ |
| Power supply Voltage | AC220V50HZ, LHS-100CB for: AV380V 50HZ |
| Interior size | 500*400*550mm |
| Dimension | 650*800*1310mm |
| Shelf (std.) | 2pcs |
| Net Weight | 130Kg |
| Gross Weight | 172Kg |
| packing size | 950*770*1580mm |
YiHeng Constant Temperature and Humidity Chamber Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
