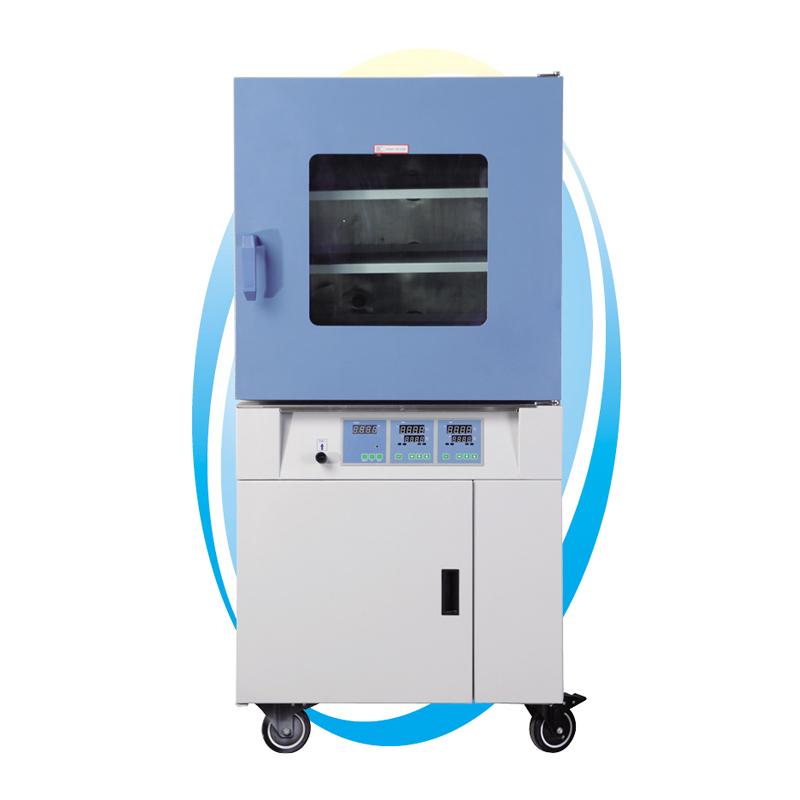

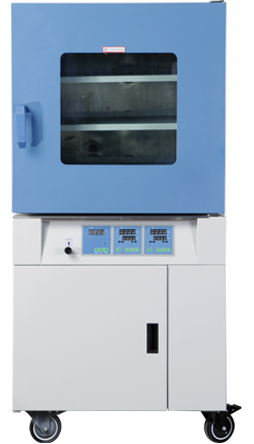

YIHENG BPZ-6063LCB Vacuum Oven imported Vacuum Pump, temperature control up to 200 ℃

The vacuum Drying Oven series produced by Yiheng Instrument has the characteristics of short heating time, accurate control, safety and reliability, and can dry heat-sensitive substances and easily oxidized substances smoothly at the same time. Yiheng Instruments is a manufacturer that uses digital pressure sensors to automatically control vacuum degrees and Vacuum Pumps through microcomputers.

Features

● The cuboid studio makes the utilization rate of the effective volume large, and the microcomputer temperature controller ensures accurate and reliable temperature control.

● Toughened, bulletproof double-layer glass door to observe the objects in the working room at a glance, and inert gas can be filled inside.

● The closed tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ring ensures high vacuum in the box.

● The studio is made of stainless steel plate material to ensure the product is durable and easy to clean.

● Storage, heating, testing and drying can be carried out in an environment without oxygen or filled with inert gas, which will not cause oxidation.

● Shorten the drying time, compared with the traditional vacuum Drying Oven, the drying time is reduced by more than 50%.

Drying process control

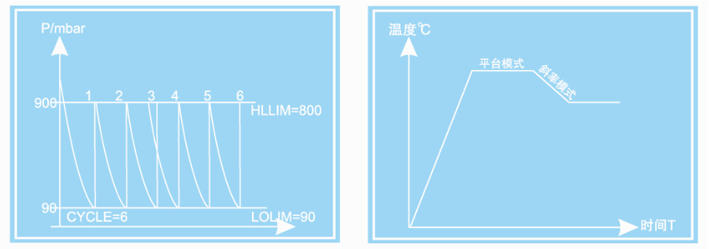

Vacuum drying process control can provide programmable vacuum cycle, only need to set the highest and lowest vacuum value according to your requirements, you can further shorten the drying time. For example: the vacuum cycle is controlled by the program, the minimum vacuum degree is set to 50Pa, the maximum vacuum degree is 900Pa, and the number of cycles is 6 times. The drying process is shown in the figure. With each cycle, the humidity is continuously reduced, and the drying speed is significantly accelerated, and the maximum number of cycles can reach 99 times.

Cyclic program control function

The user-friendly operation interface and programming program save time for customers and ensure a reliable heating or drying process. It can be programmed directly on the operation interface. It can be programmed in 7 groups and 63 steps, and the setting time of each group is 1-99 hours and 59 minutes. , can preset startup and shutdown time.

Vacuum control

The vacuum Drying Oven adopts digital technology to control the vacuum degree. "Manual control" has long been a history. Do you still think that in the 21st century, manual lever-operated valves can precisely control the vacuum degree? The vacuum degree is automatically controlled by the digital display vacuum gauge, providing you with more accurate and effective vacuum degree control. Through the panel, the vacuum degree can be conveniently controlled between any two points or areas within the range of 10~10 5 Pa (minimum vacuum degree 133Pa), and the control accuracy is ±1%. The vacuum gauge uses a resistive silicon tube pressure sensor to ensure a stable pressure value, which is not affected by the air flow and transmits the stable pressure value to the LED display of the vacuum gauge.

Advantages of temperature control

It has 7 groups of 63 steps temperature programmable function: with traditional program control mode, you can also set temperature and constant temperature time, which means "temperature ~ constant temperature time at this temperature", BPZ-LC also includes slope mode program control, use "temperature— Time-temperature" format definition: the time required to rise or fall from a certain temperature to another temperature, so as to accurately realize the rate control of the temperature rise or fall process. So that you can control every process in the whole temperature experiment, no matter heating up, constant temperature or cooling down.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
