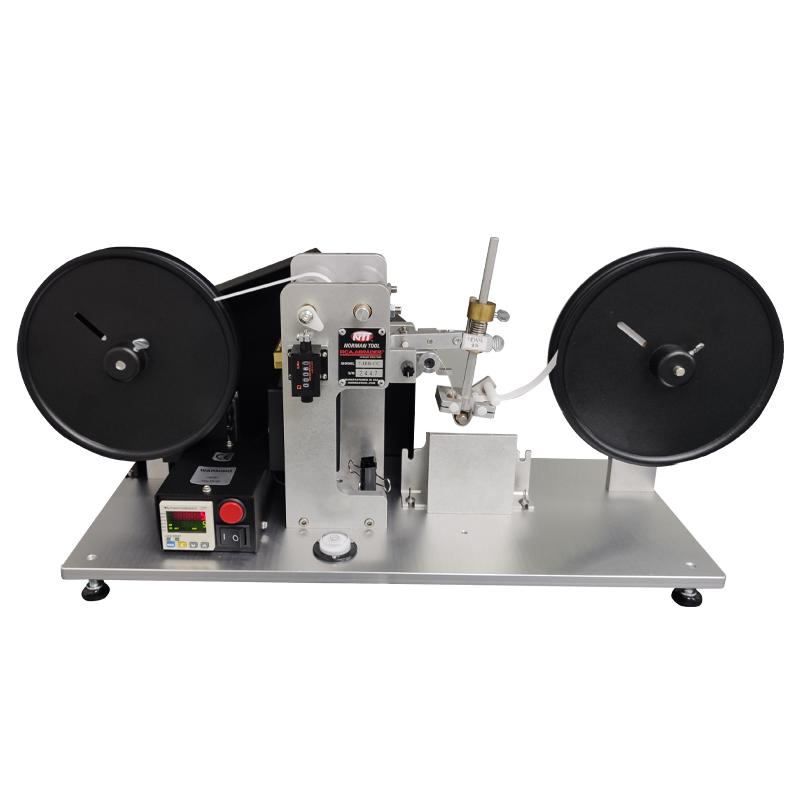

NORMAN RCA7-IBB-CC Paper tape Wear testing machine RCA abrasion Tester

Introduction

The American NORMAN RCA7-IBB paper tape abrasion Tester is mainly used to test the surface abrasion resistance and abrasion. Commonly used in paints, electroplating organic coatings, foils, and ink keyway fonts.

RCA paper tape abrasion testing machine uses a special test paper tape as the friction medium, and acts on the friction head with a fixed load, and the friction head continuously applies force to the surface of the specimen through the fixed diameter roller and the paper tape driven by the fixed-speed motor until the surface substrate is seen or a specific degree of wear is reached, and the wear resistance of the sample is evaluated by the number of motor rotations displayed by the counter.

Features

• Easy to set up and operate

• Automatic shut-off

• Reproducible and consistent results

• 3 load settings

• Wear debris does not affect the test

• Continuously use inexpensive, unused abrasive media

Applications

It is suitable for the abrasion resistance test of plastic surface coating, and is mostly used in mobile phone button printing, mobile phone shells, MP3, CD players, laptops, PDAs, electrical shells and other products.

Meets standards

The RCA7-IBB Paper Tape Abrasion Tester complies with ASTM F2357-04 standard.

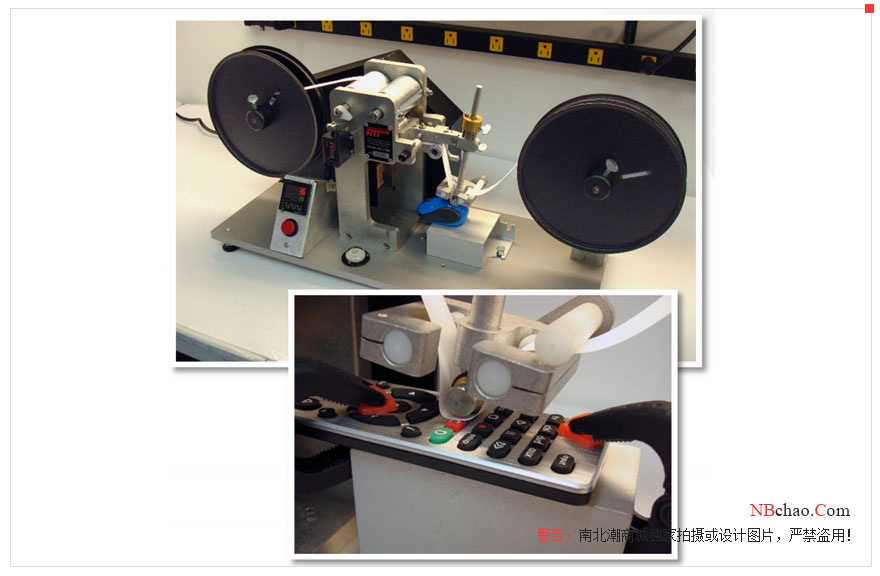

Pictures

Host X1, certificate X1, positive plate surface leveling meter X1, hexagonal key X1, magnifying glass X1, weight reduction X2, O-ring X3, three-dimensional sample holder X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
