PUSHEN NK-2 Iwata Cup
In line with Japanese JIS standards; portable; outlet 3.5mm; volume 50ml; viscosity range 70~370cSt.
Brand
SKU: NB018126
PushenModel
NK-2
VS
What else did others buy
-
TQC VF2228 Zahn Cup No. 3 Zahn Viscosity Cup /3.8mm
$ 434.00 -
TQC VF2025 Viscosity Cup filter, stainless steel 5mm
$ 145.00 -
CSB Zahn Cup YONGLIDA No. 2 Zahn Cup
$ 127.00 -
Rhopoint RL-A-FC-DIN2 DIN Flow Cup (2mm) - DIN 53211
$ 385.00 -
Qiwei TND-4G Benchtop Tu-4 Viscometer Viscosity cup Chrome/4mm
$ 111.00
Genuinegoods
NK-2
Iwata Cup
In line with Japanese JIS standards; portable; outlet 3.5mm; volume 50ml; viscosity range 70~370cSt.

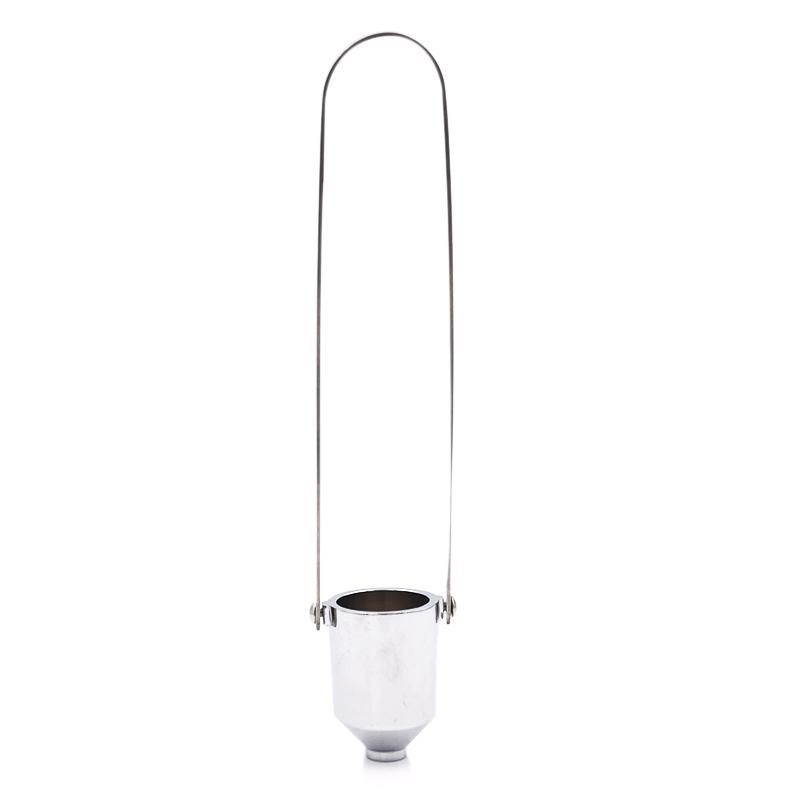

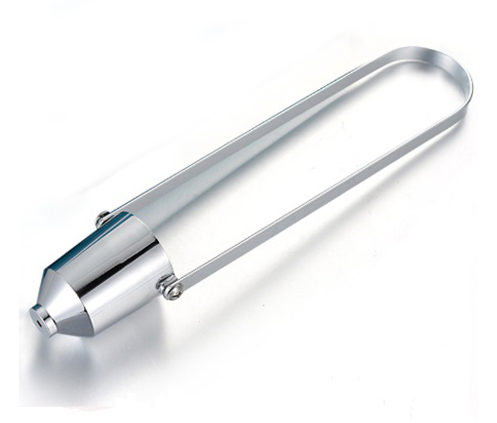

NK-2 Iwata Cup
It is suitable for quickly measuring the viscosity of the product to be sprayed on site.
Widely used in electronic products and plastics and spraying industries.
Specifications
VS

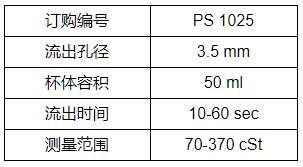

Pushen NK-2 Iwata CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 70~370cSt |
| outflow time | 10~60s |
| Flow hole diameter | 3.5mm |
| Capacity | 50ml |
Pushen NK-2 Iwata Cup Packing list
Iwata Cup X1, Instruction Manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
I want to change the DIN4 cup I am using now to a Ford No. 4 cup, is that okay?
[A]
Hello, the parameters and standards of the DIN4 cup and the Ford No. 4 cup are different. If the standard is changed in the workshop, you can choose according to the standard of the workshop.
[Q]
What is the volume of the NK-2 Iwata cup?
[A]
Hello, 50ml.
[Q]
Do you have the Iwata Cup involved in JJG743?
[A]
The NK-2 Iwata Cup will do.
[Q]
Is the nozzle diameter of the Pushen NK-2 Iwata cup 3mm?
[A]
Hello, the outflow diameter is 3.5mm.
