Defelsko DOLLY14 kit 14mm PosiTestAT 10 pcs
The size of the Defelsko DOLLY14 kit is 14mm, which is a special kit for PosiTestAT drawing adhesion instrument. The minimum pressure of the DOLLY14 kit is 1.4MPa.
Defelsko
DOLLY14
DOLLY14APK100
-
TIANDIXINGHUO TC-A10 Automatic Adhesion Tester with 10mm kit
$ 1983.00 -
TIANDIXINGHUO TC-A14 automatic Pull-off adhesion Tester with 14mm kit
$ 1888.00 -
TIANDIXINGHUO TC-A20 Automatic Adhesion Tester with 20mm kit
$ 1888.00 -
TIANDIXINGHUO TC-M20 Manual Pull-off adhesion Tester kit Diameter 20mm
$ 1414.00 -
TQC SHEEN LD9250 kit adhesion testing drill
$ 1341.00
Introduction

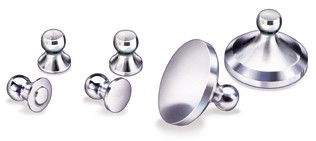

The spindle isAn essential accessory to the PosiTestAT Pull-Off Adhesion Tester, it is available in a variety of different sizes, each with different pull-out strengths.
The size of the Defelsko DOLLY14 spindle is 14mm, and the starting pressure is 1.4MPa.
Tablet pull-out strength
| Spindle size(mm) | Start-up pressure | Maximum pull-out pressure (AT-M) | Maximum pull-out pressure (AT-A) |
| 10mm | 400psi（2.8MPa） | 10000psi（70 MPa） | 14000psi（96 MPa） |
| 14mm | 200psi（1.4MPa） | 6000psi（40 MPa） | 7000psi（50 MPa） |
| 20mm | 100psi（0.7MPa） | 3000psi（20 MPa） | 3500psi（24 MPa） |
| 50mm | 50psi（0.4MPa） | 500psi（3.5 MPa） | 560psi（3.8 MPa） |
Defelsko DOLLY14 KitSpecifications
| LIST | VALUE |
|---|---|
| Kit diameter | 14mm |
| Range | 1.4~40MPa |
| quantity | 10. |

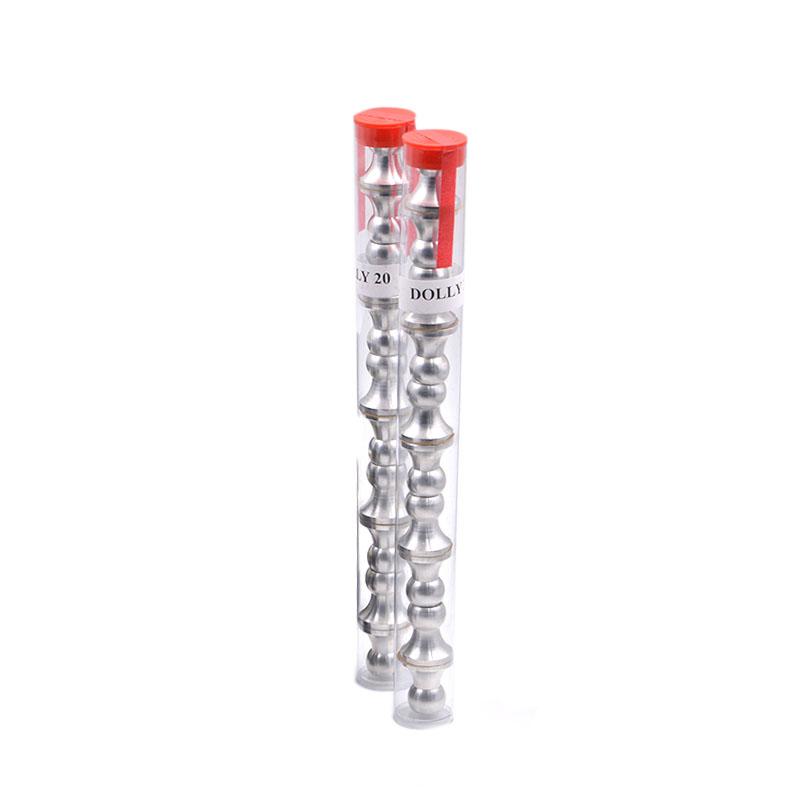

Defelsko DOLLY14 Kit Packing list
Nail x10
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
