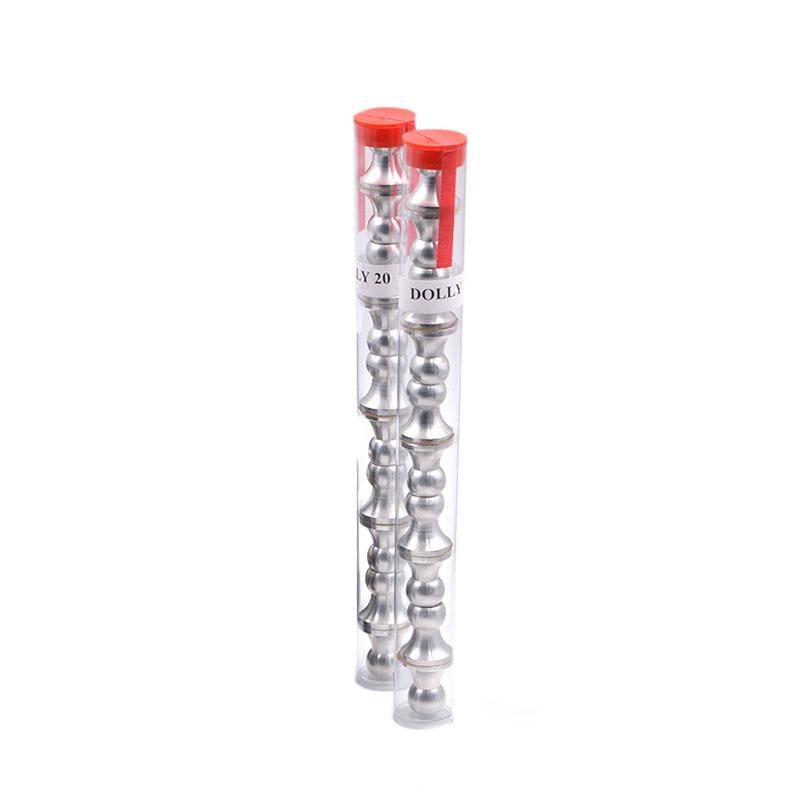

Defelsko DOLLY20 kit 20mm PosiTestAT 10 pcs
The size of the US Defelsko DOLLY20 kit is 20mm, which is a special kit for PosiTestAT drawing adhesion instrument, and the starting pressure of the DOLLY20 kit is 0.7MPa.
Defelsko
DOLLY20
DOLLY20APK100
-
TIANDIXINGHUO TC-A14 automatic Pull-off adhesion Tester with 14mm kit
$ 1888.00 -
TIANDIXINGHUO XH-M Adhesion Tester Pull-off adhesion Detector 20mm
$ 1414.00 -
Defelsko DOLLY10APK100 kit 10mm/box
$ 758.00 -
TQC Sheen LD9200 Hydraulic Adhesion Tester Pat Handy
$ 8534.00 -
RUNJIE RJ-M Adhesion Tester 50mm
$ 1350.00
Introduction

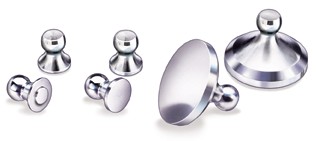

The spindle isAn essential accessory to the PosiTestAT Pull-Off Adhesion Tester, it is available in a variety of different sizes, each with different pull-out strengths.
The size of the Defelsko DOLLY20 spindle is 20mm, and the starting pressure is 0.7MPa.
Tablet pull-out strength
| Spindle size(mm) | Start-up pressure | Maximum pull-out pressure (AT-M) | Maximum pull-out pressure (AT-A) |
| 10mm | 400psi（2.8MPa） | 10000psi（70 MPa） | 14000psi（96 MPa） |
| 14mm | 200psi（1.4MPa） | 6000psi（40 MPa） | 7000psi（50 MPa） |
| 20mm | 100psi（0.7MPa） | 3000psi（20 MPa） | 3500psi（24 MPa） |
| 50mm | 50psi（0.4MPa） | 500psi（3.5 MPa） | 560psi（3.8 MPa） |
Defelsko DOLLY20 KitSpecifications
| LIST | VALUE |
|---|---|
| Kit diameter | 20mm |
| Range | 0.7~24MPa |
| quantity | 10. |
Defelsko DOLLY20 Kit Packing list
Nail x10
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
