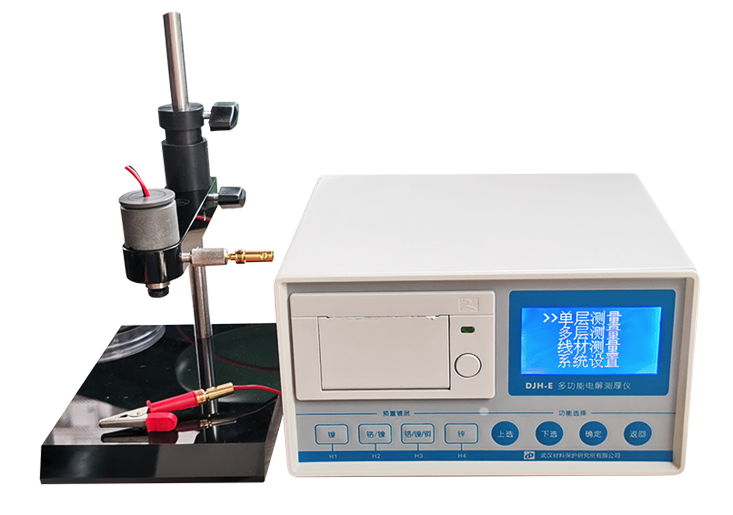

COATTEST INSTRUMENT DJH-E Electrolytic Thickness Gauge platings Thickness measurement instrument
Can measure 0-300μm platings Film thickness, resolution up to 0.01μm, support composite multi-layer measurement, standard micro printer automatic recording test information, the minimum measurable φ 1.7mm small size workpiece.
COATTEST INSTRUMENT
DJH-E
DJH-D
-
COATTEST INSTRUMENT DJH-E Electrolytic Thickness Gauge platings Thickness measurement instrument
$ 1324.00 -
COATTEST INSTRUMENT DJH-G (STEP) Electrolytic Thickness Gauge Multilayer Nickel Potential Difference and Thickness Tester, Stand-alone Connectivity dual-use
$ 2891.00 -
COATTEST INSTRUMENT DJH-D Electrolytic Thickness Gauge platings thickness measurement instrument 0.01 μm resolution
$ 1199.00
Application
Applicable fields: automobile and motorcycle industry, aerospace and navigation industry, bicycle industry, electronic appliance industry, daily hardware industry, sanitary ware industry, plastic electroplating industry, neodymium-iron-boron industry, standard parts industry, technical supervision departments and scientific research institutions.
Product use: electroplating layer thickness and multi-layer nickel potential difference measurement
Additional information
The Thickness Gauge has been calibrated before leaving the factory. If you need a coating calibration plate (made in the United States), you need to purchase it separately.
COATTEST INSTRUMENT DJH-E Electrolytic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement of plating | Standard configuration: chromium, nickel, copper, zinc, tin, silver, gold and other metal platings, composite platings (such as Cr/Ni/Cu), if you need to measure Miscellaneous platings, please ask in advance |
| Platings substrate | Metal, plastic, brass, zinc alloy, NdFeB, Pottery and porcelain (basically not limited by the substrate) |
| Number of coating layers | Single layer and composite multi-layer |
| Minimum measurable size | φ 2.4mm and φ 1.7mm two sizes are standard, the plane is more than 3mm * 3mm, and the diameter of the circular shaft is more than 6mm. If you measure a smaller size workpiece, please submit it in advance. |
| data processing | DJH-E type has a micro printer, which can automatically print the tested plating type, Film thickness value and test time and other information, DJH-D does not have this function |
| measurement range | 0~ 300μm (the use range is 0.03~ 50um, beyond 50um, the error will gradually increase) |
| Indication Error | ≤±10% |
| reproducibility | ≤5% |
| resolution | 0.01μm |
| power supply | AC 220V +/- 10%, 50/60Hz, 30W |
COATTEST INSTRUMENT DJH-E Electrolytic Thickness Gauge Packing list
Host X1, test rack X1, electrolysis solution (120ml) X4, Benchtop micro printer X1, printing paper X3, dropper X10, eraser X1, forceps X1, paper towel X1, test rack fastening wrench X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
