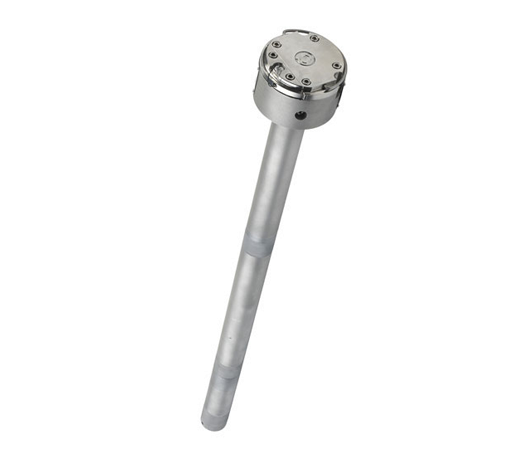

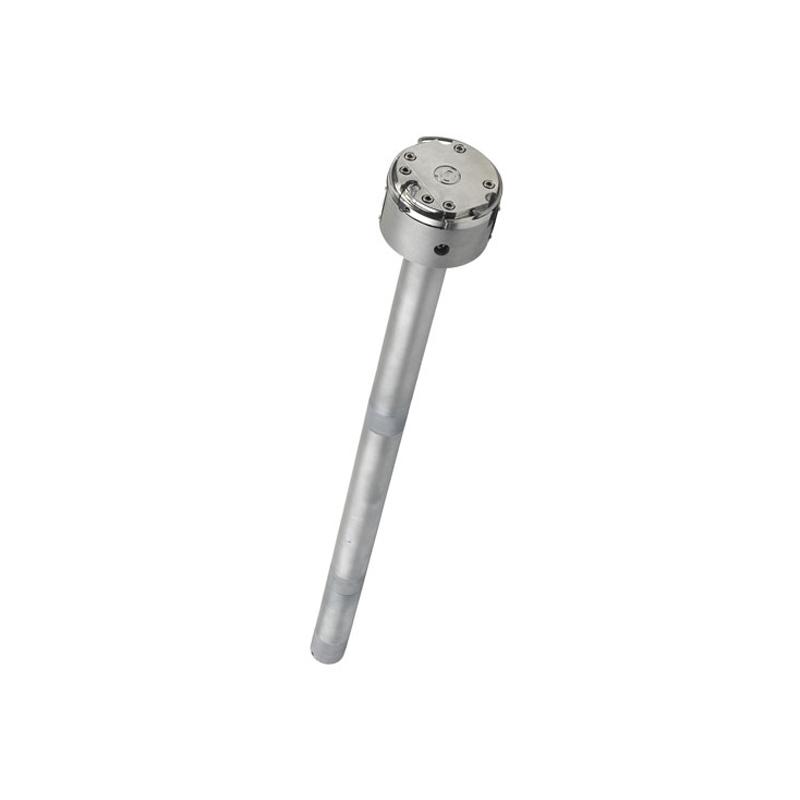

ION SCIENCE ION GasClam Underground gas monitor for CH4/CO2/O2

Introduction

Continuous detection of CH4, O2, CO2, CO, H2S and VOCs (volatile organic compounds) for up to 3 months!

GasClam is the first borehole underground gas monitor to enable unattended data collection. Ideal for monitoring landfill biogas applications, with GasClam providing real trend information under constant monitoring. It's a revolution in gas management and risk forecasting, and informed decisions can now be made.

GasClam measures the concentrations of methane CH4, carbon dioxide CO2 and oxygen O2 as well as atmospheric pressure and temperature. Optional CO, hydrogen sulfide H2S and VOCs, plus water depth, along with the telemetry module for remote, real-time data communication.

The sampling frequency is variable, from two minutes to once a day. The data is downloaded to a PC or viewed remotely using the optional GPRS telemetry system.

Manufactured from stainless steel, the GasClam is intrinsically safe, environmentally sealed and rated for IP-68. battery operation; On the basis of sampling once per hour, it can be powered for up to 1 month.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
