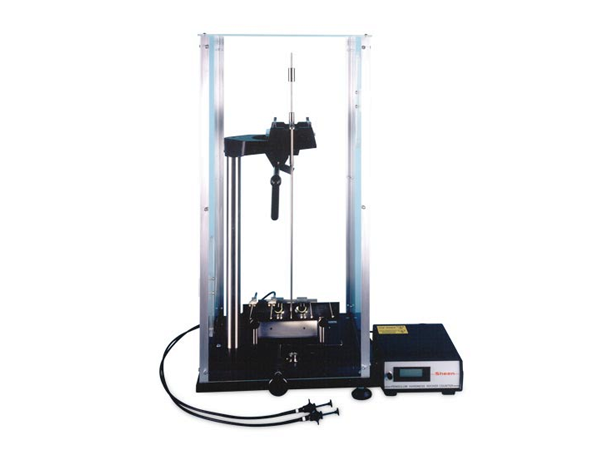

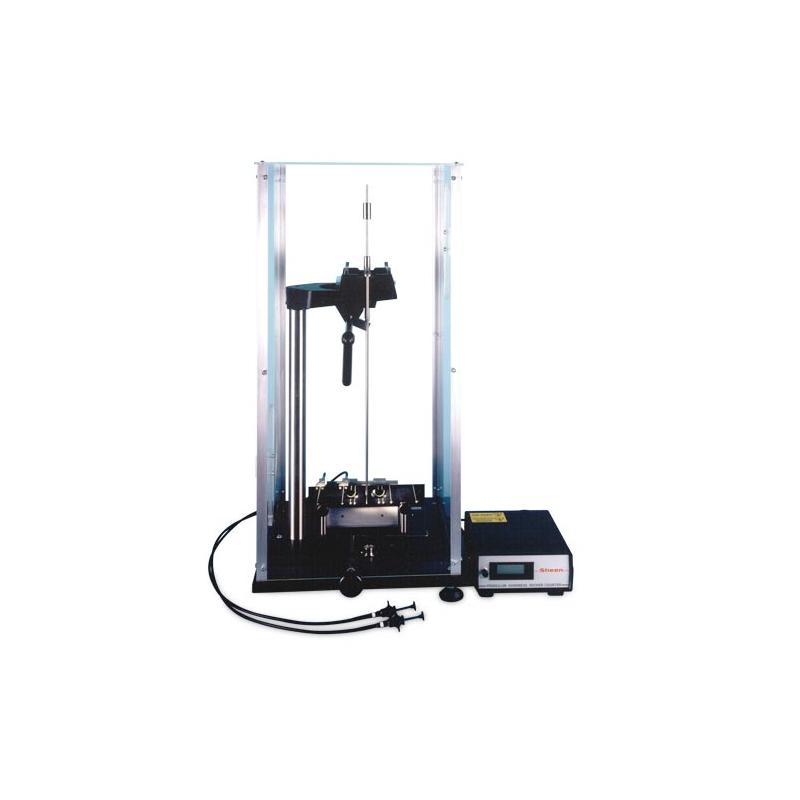

TQC SHEEN SH707K (Ref707K) Koenig swing rod Hardness Tester

Introduction

Equipment internationally approved for coating hardness evaluation. This test consists of measuring the damping time of the pendulum oscillating on the test surface. Hardness is a function of vibration amplitude and is detected by an electron-optical unit from 2 specified pendulum deflection positions. It lowers faster on softer media.

Product Features

High-precision instrumentation, electronic counting and display

High-quality components ensure long-term stability and reliability

Easy to clean and maintain

Standard delivery: adjustable horizontal mainframe, pendulum, ventilation screen, reference plate, spirit level

240V/50 Hz or 110V/60 Hz (please specify when ordering).

Available in 3 versions

KOENIG

200 g triangle pendulum on 2 x 5 mm ball bearings.

Glass Plate Reference:250±10s. (172 to 185 oscillations) with a deflection angle of 6° to 3°.

Pasoz

The 500 gram square pendulum is mounted on 2 x 8 mm ball bearings.

Glass Plate Reference:430±10 s with a deflection angle of 12° to 4°

KOENIG＆PERSOZ

The two methods are combined in a single unit.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
