TQC Sheen ref. 401/4 desktop Viscosity Cup diameter 3.97mm BS3900 standard
TQC SHEEN desktop Viscosity Cup ref.401/4 has an outflow diameter of 3.97mm and a viscosity range of 71~ 455cSt. The ref.401/4 desktop Viscosity Cup meets the BS3900 standard and uses a stainless steel outflow nozzle.
SHEEN
ref.401/4
-
QND-4A coated with 4 Viscometer YONGLIDA bakelite material
$ 106.00 -
Ander LND-1 Coating-4 Cup, Aperture 4mm Suitable for 150S Coating Viscosity Determination
$ 121.00 -
Japan TOYO TOYO 3 #Viscosity Cup Stainless steel Coating paints viscosity measurement cup Zahn Zahn Cup
$ 184.00 -
TQC VF2049 desktop 4 Viscosity Cup 4mm filter
$ 452.00 -
TQC VF2073 immersion Viscosity Cup 4mm filter
$ 364.00

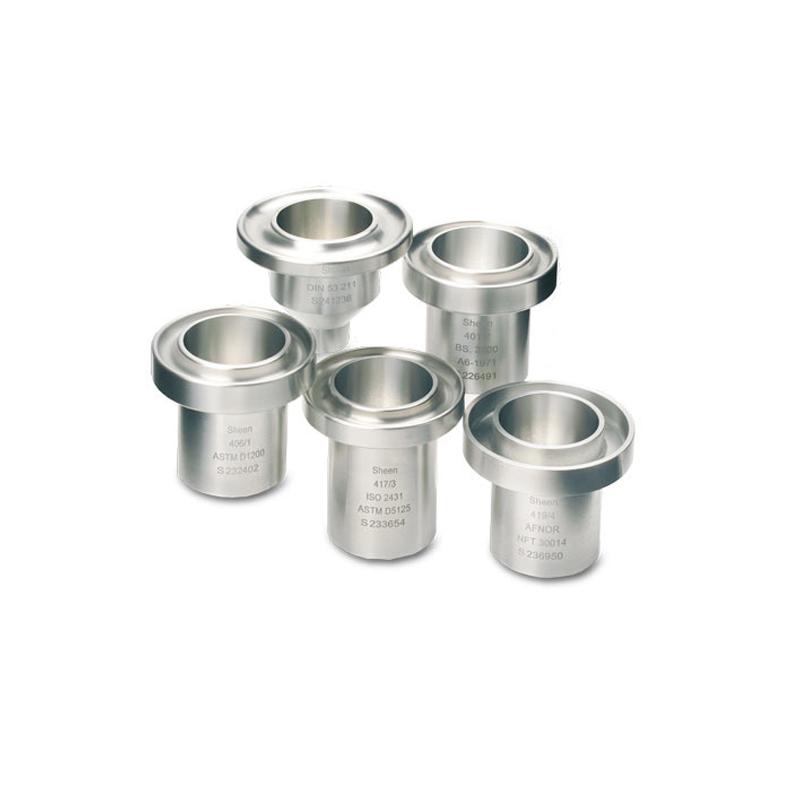

Introduction
ASTM, BS, DIN, EN ISO cups
These good, high-precision cups cover a wide range of viscosities according to the corresponding international standards.
Most can be certified and calibrated using the specified outflow/viscosity conversion equations, otherwise an internal standard reference cup can be controlled using a calibration test fluid.
Features
Made of good aluminium and fitted with stainless steel nozzle insert (depending on specifications)
It is manufactured by high-precision computer processing
Mirror-polished and smoothed for high outflow accuracy and ease of maintenance
Strict quality and compliance checks.
Note:
Flow cup holder for cups is not included, see optional accessories.
A calibration certificate was not specified at the time of ordering, see optional accessories.
BRITISH SHEEN DESKTOP VISCOSITY CUP SERIES PARAMETERS
| SKU | Name |
|---|---|
| 401/2 | Viscosity cups according to BS3900: A6 1971 (B2) |
| 401/3 | Viscosity cups according to BS3900: A6 1971 (B3) |
| 401/4 | Viscosity cups according to BS3900: A6 1971 (B4) |
| 401/5 | Viscosity cups according to BS3900: A6 1971 (B5) |
| 401/6 | Viscosity cups according to BS3900: A6 1971 (B6) |
SHEEN ref.401/4 Desktop Viscosity CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 71~455cSt |
| outflow time | 30~300s |
| flow hole diameter | 3.97mm |
| Cup body material | Aluminum |
| Filter material | stainless steel |
| Applicable standards | BS3900 |
SHEEN ref.401/4 Desktop Viscosity Cup Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
