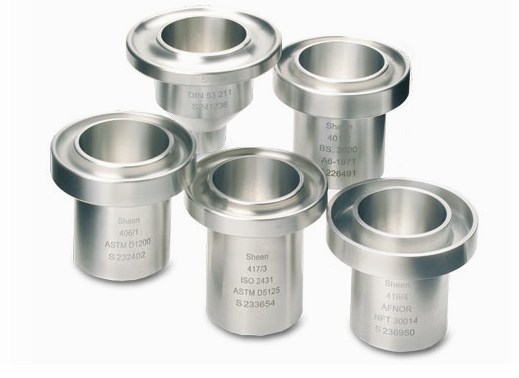

TQC Sheen ref. 401/5 BS Viscosity Cup diameter 4.76mm BS3900 standard
TQC SHEEN BS Viscosity Cup ref.401/5 has an outflow diameter of 4.76mm and a viscosity range of 299~ 781cSt. The ref.401/4 BS Viscosity Cup meets the BS3900 standard and adopts a stainless steel outflow nozzle.
SHEEN
ref.401/5
-
TQC VF2026 Viscosity Cup filter, stainless steel 6mm
$ 146.00 -
Ander LND-2 (4 #) No. 4 ISO cup with bracket Viscosity range 35~ 135cst
$ 190.00 -
TQC VF2001 DIN cup, aluminum alloy Viscosity Cup 3mm
$ 410.00 -
TQC VF2022 Viscosity Cup filter, stainless steel 2mm
$ 151.00 -
YONGLIDA QNB-5 ISO flow Viscosity Cup 5mm aperture Measurement range 91~ 326cSt
$ 142.00
Introduction
ASTM, BS, DIN, EN ISO cups
These good, high-precision cups cover a wide range of viscosities according to the corresponding international standards.
Most can be certified and calibrated using the specified outflow/viscosity conversion equations, otherwise an internal standard reference cup can be controlled using a calibration test fluid.
Features
Made of good aluminium and fitted with stainless steel nozzle insert (depending on specifications)
It is manufactured by high-precision computer processing
Mirror-polished and smoothed for high outflow accuracy and ease of maintenance
Strict quality and compliance checks.
Note:
Flow cup holder for cups is not included, see optional accessories.
A calibration certificate was not specified at the time of ordering, see optional accessories.
BRITISH SHEEN DESKTOP VISCOSITY CUP SERIES PARAMETERS
| SKU | Name |
|---|---|
| 401/2 | Viscosity cups according to BS3900: A6 1971 (B2) |
| 401/3 | Viscosity cups according to BS3900: A6 1971 (B3) |
| 401/4 | Viscosity cups according to BS3900: A6 1971 (B4) |
| 401/5 | Viscosity cups according to BS3900: A6 1971 (B5) |
| 401/6 | Viscosity cups according to BS3900: A6 1971 (B6) |
SHEEN ref.401/5 Desktop Viscosity CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 299~781cSt |
| outflow time | 30~300s |
| flow hole diameter | 4.76mm |
| Cup body material | Aluminum |
| Filter material | stainless steel |
| Applicable standards | BS3900 |
SHEEN ref.401/5 Desktop Viscosity Cup Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
