        Qnix 7500 Fe/Nfe2mm probe

        Nix Fe/NFE2mm Thickness Gauge Probe QNix7500 Thickness Gauge Special

        The German QNix Fe/Nfe2mm Thickness Gauge probe is the matching probe of the QNix7500 anti-corrosion layer Thickness Gauge, the thickness measurement range is 0~2000 microns, and the Fe/Nfe2mm Thickness Gauge probe is a magnetic eddy current dual function.

        Brand
        SKU: NB018495
        Germany Qnix
        Service
        VS
        QnixLOGO

        Qnix shop

        Information
        Datasheet
        What else did others buy
        Genuinegoods

        • Qnix 7500 Fe/Nfe2mm probeOverview

        • Specifications
        • Comments
        • FAQs
        7500 Fe/Nfe2mm
        probe

        Introduction

        The German QNix Nix Fe/Nfe2mm Thickness Gauge probe is a magnetic induction and eddy current dual-purpose coating Thickness Gauge, with a thickness measurement range of 0~2000 microns, and the Fe/Nfe2mm Thickness Gauge probe is a supporting probe of QNix7500 anti-corrosion layer Thickness Gauge, with a measurement accuracy of 0-50μm: ≤±1μm, 50-1000μm: ≤±1.5%, 1000-2000μm: ≤±2%.

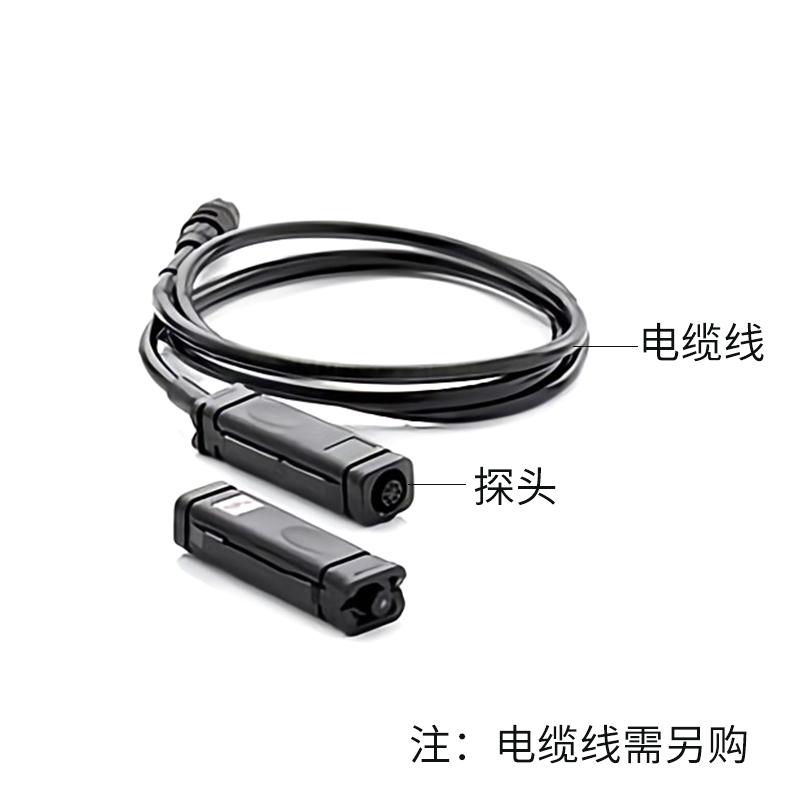

        Detail Figure 1 of the QNIX 7500 FE/NFE2mm probe

        Qnix 7500 Probe Model Chart

        ModelFe-2000Fe-5000Nfe-2000Nfe-5000Fe/Nfe-2000Fe/Nfe-5000
        matrixironironNon-ironNon-ironIron/non-ferrousIron/non-ferrous
        Probe formOne/SplitOne/SplitOne/SplitOne/SplitOne/SplitOne/Split
        Measuring range0~2000μm0~5000μm0~2000μm0~5000μm0~2000μm0~5000μm
        Measurement accuracy0~1999μm：±(1μm+2％)

        0~1999μm：±(1μm+2％);

        2000~5000μm：±3.5％

        		0~1999μm：±(1μm+2％)

        0~1999μm：±(1μm+2％);

        2000~5000μm：±3.5％

        		0~1999μm：±(1μm+2％)

        0~1999μm：±(1μm+2％);

        2000~5000μm：±3.5％

        Minimum measuring surfaceFe：φ25mm；NFe：φ25mm
        Minimum radius of curvatureConvex φ5mm, concave φ25mm
        Minimum substrate thicknessFe：200μm；NFe：50μm


        VS

        Qnix 7500 Fe/Nfe2mm probeSpecifications

        LIST VALUE
        Measurement principle Magnetic Induction + eddy Current
        Measurement range 0~2000μm
        margin of error ±2％
        Minimum measurement surface Φ25mm
        Minimum radius of curvature Convex: 5mm; Concave: 25mm
        thinnest substrate Fe：200μm；NFe：50μm
        Interface USB or RS232

        Qnix 7500 Fe/Nfe2mm probe Packing list

        Probe X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
