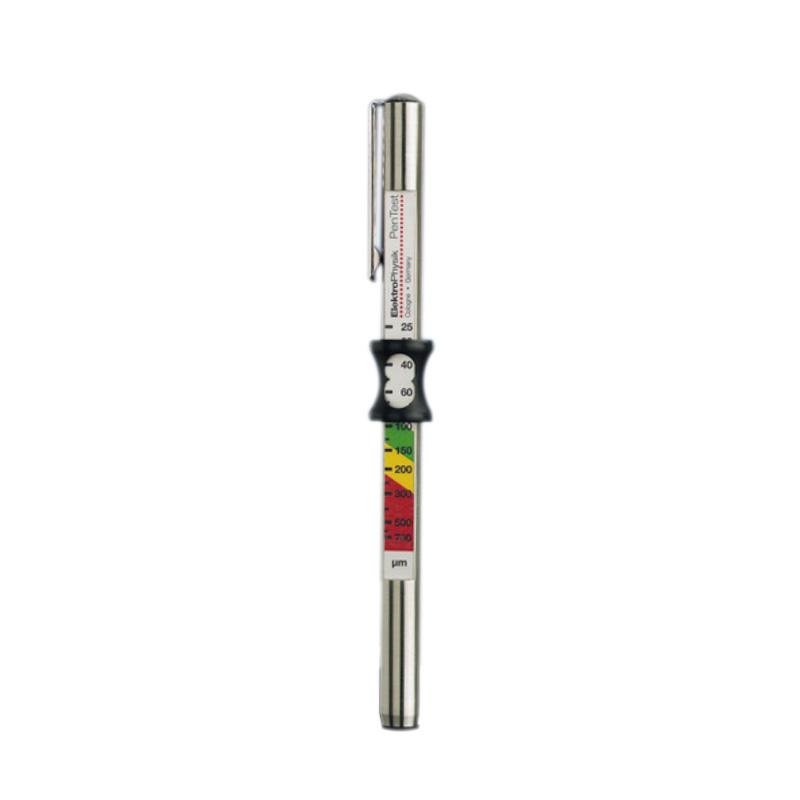

German EPK PenTest pen coating Thickness Gauge, thickness range: 25~ 700μm
Pen Thickness Gauge, using the principle of magnetic attraction, is used for the measurement of nonmagnetic coating on iron substrates, measuring the thickness of 25~ 700 μm, mainly used in steel structures, painted steel plates and various steel baseplates for rapid inspection and measurement.
ElektroPhysik
PenTest
-
Defelsko coating platings Thickness Gauge PosiTector 6000 N3 non-ferrous metal substrate (such as copper and aluminum) nonconductive coating
$ 1418.00 -
German EPK F20 Thickness Gauge probe, thickness measurement range 0~20000um
$ 1554.00 -
QNix 9500Pro Coating Thickness Gauge
$ 1226.00 -
DONGRU DR120 Coating Thickness Gauge
$ 167.00 -
PHYNIX Surfix SX-N1.5 non-ferrous paints Thickness Gauge 1500μm
Login
Introduction

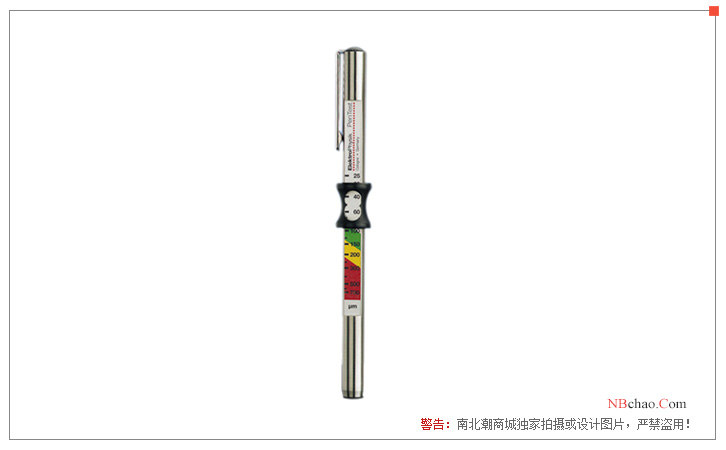

The German EPK PenTest pen coating Thickness Gauge has a HOLD mechanism. This dry Film Thickness Gauge will maintain the thickness indication position for easy reading. Mainly used for rapid inspection and measurement of steel structures, painted steel plates and various steel base plates.
Features
1. Measurement of non-magnetic coatings on iron substrates
2. Economical and practical
3. Accurate measurement
4. Apply the principle of magnetic attraction
5. Permanent magnetic head
6. The scale is displayed in different colored areas for quick quality assessment
7. Can be used for measurement of flat surfaces and depressions
Standards compliant
PenTest pen coating Thickness Gauge complies with DIN EN ISO2178 standard.
plan
ElektroPhysik PenTest Pen coating Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction |
| Measurement range | 25~700μm |
| margin of error | ±10% |
| Minimum measurement surface | 25mm |
| probe | Integrated probe |
| Calibrated Certificate | without |
| Calibrated mode | No need to calibrate |
| Unit display | μm |
| statistical function | without |
| icon function | without |
| Interface | without |
| Data storage | without |
| Power | No power required |
| Display screen | Scale |
| Operating temperature | -10~80℃ |
| Machine size | Length 151mm, diameter 10mm |
ElektroPhysik PenTest Pen coating Thickness Gauge Packing list
PenTest Pen Thickness Gauge × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
