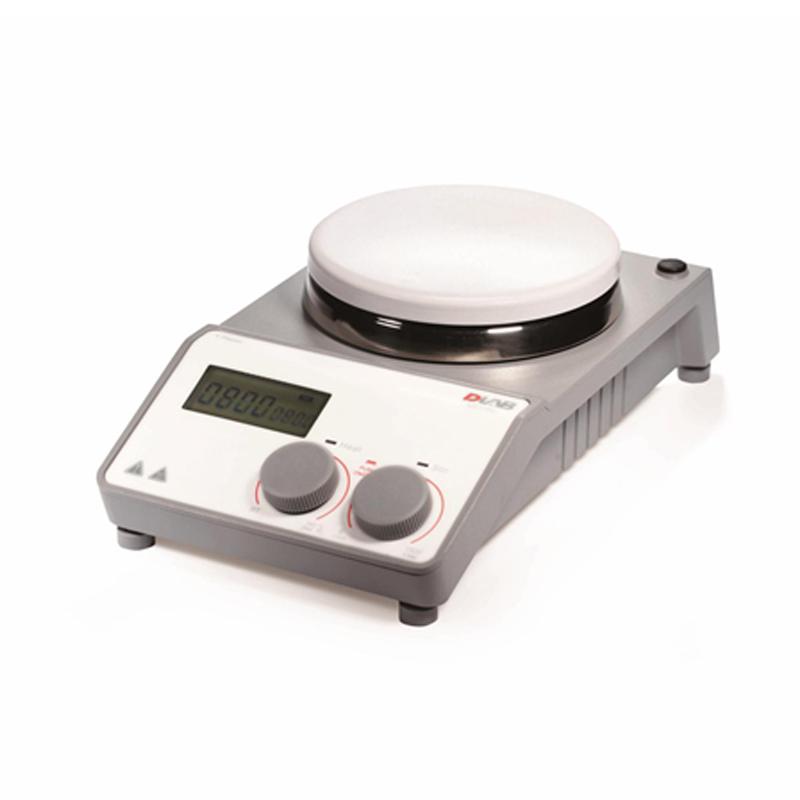

DLAB MS7-H550-S Magnetic Stirrer for low viscosity liquids or solid-liquid mixtures
The DLAB MS7-H550-S Magnetic Stirrer has a Stir capacity of 20L and is a heated disc Magnetic Stirrer. The MS7-H550-S can use an external PT1000 temperature transducer and the working disc size is φ 135mm.
DLAB
MS7-H550-S (set)
-
CHIJIU SH21-2 thermostatic Magnetic Stirrer Aluminum Alloy Housing 10L/150 ℃
$ 240.00 -
QIWEI WC-CL Mini Rechargeable Magnetic Stirrer Stepless Speed Adjustable Portable
$ 92.00 -
RONGHUA DF-4 Thermal Magnetic Stirrer 4 station independent temperature control, anti-dry burning/Oil Bath/Water Bath
$ 581.00 -
CHIJIU MYP13-2S Single Stir Magnetic Stirrer LED Speed Display
$ 179.00 -
RONGHUA CJ-1 Magnetic Stirrer
$ 105.00
Introduction
Dalong Xingchuang MS-H-Pro+ is an LCD CNC heating disc magnetic stirrer, using international plugs, the maximum stirring capacity of MS-H-Pro+ heating magnetic stirrer is 20L, the working plate is stainless steel ceramic coating, and the heating power is 500W.
Features
The new heating stirrer has new rapid heating and stirring technology and precise temperature control technology, which is suitable for unmanned operation;
Heated magnetic stirrer with safe temperature control for unmanned operation;
Two independent safety loops;
Independent temperature sensor detection, protection temperature can be set;
External PT1000 temperature sensor can be used;
At the end of the experiment, the heat warning screen shows the residual temperature of the Heating Plate;
A variety of operating modes ensure that the stirring and heating functions are not altered by external factors.

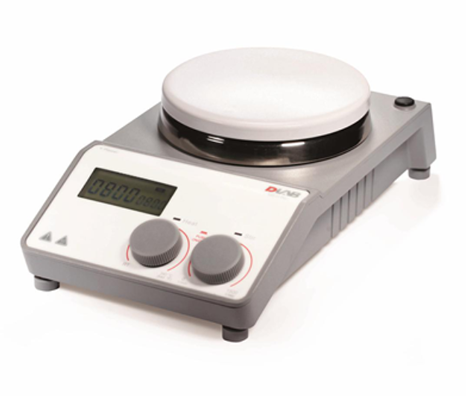

Pictures
DLAB MS7-H550-S (set) Magnetic StirrerSpecifications
| LIST | VALUE |
|---|---|
| Max. Capacity of stirring | 10L |
| Stirring speed | 0~1500rpm |
| input power | 1030W |
| Temperature range | RT+~550℃ |
| Stir size | 80mm |
| Pan size | 184*184mm |
| Dimensions | 215*360*112mm |
| Machine Weight | 4.5kg |
| Panel Material | Glass Pottery and porcelain |
| Motor type | shaded pole motor |
| input power | 15W |
| output power | 1.5w |
| Power Supply | 100~120/200~240V 50/60Hz |
| Rated frequency | 50/60Hz |
| station number | 1 station |
| display mode | Scale |
| Heating power | 1000W |
| Temperature control Accuracy | ±10℃ |
| Safety protection temperature | 580℃ |
| Temperature display | LED |
| Temperature display resolution | ±1℃ |
| Temperature transducer | PT1000 |
| External temperature transducer temperature control Accuracy | ±0.5 |
| Waste heat warning function | 50℃ |
| Data Interface | N/A |
| Protection level | IP21 |
| Allowable environment temperature | 5~40℃ |
| Allowable Relative Humidity | 80% |
DLAB MS7-H550-S (set) Magnetic Stirrer Packing list
Host X1, external temperature probe X1, PT1000 temperature probe support assembly X1, quality assurance card X1, certificate of conformity X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
