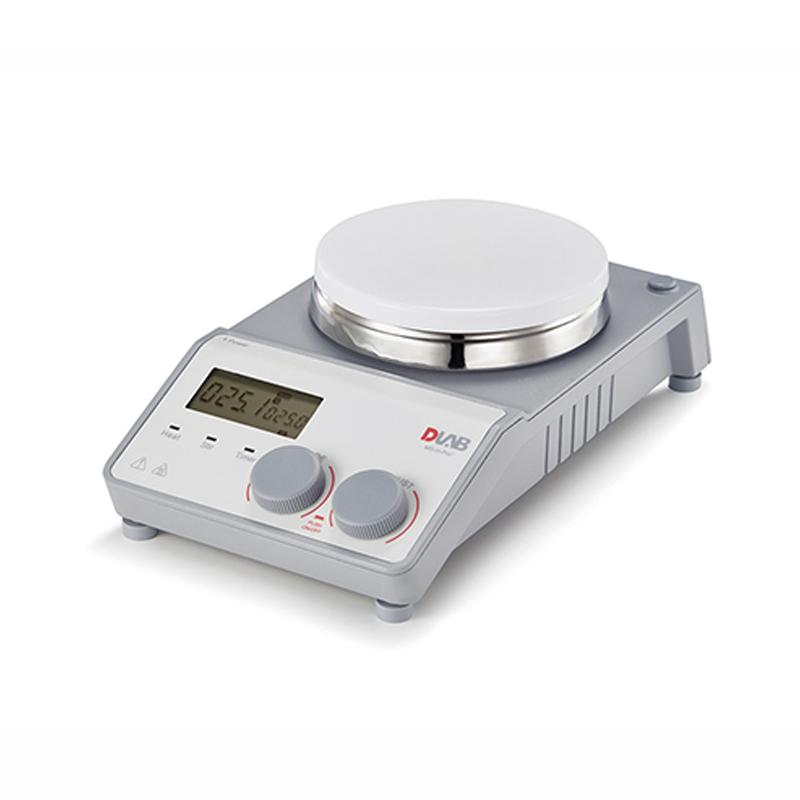

DLAB LCD numerical control timing heating Magnetic Stirrer MS-H-ProT
Numerical control timing heating Magnetic Stirrer MS-H-ProT Max. Stirring Capacity 20L, stirring speed 100~1500rpm, Temperature range RT +~ 340 ℃, Timer Range 1~ 5999min, heating power 500w, safety protection temperature 360 ℃.
DLAB
MS-H-ProT (set)
-
SILE B11-3 constant temperature magneticstirrer 5L/1700rpm
$ 287.00 -
CHIJIU 524G thermostatic Magnetic Stirrer 4 station Stir capacity is 3000mlx4
$ 790.00 -
HUXI HMS-5E Magnetic Stirrer 5L/1800rpm
$ 164.00 -
Guohua 99-1 high power magneticstirrer
$ 207.00 -
SILE 85-2 constant temperature magneticstirrer 10L/2000rpm
$ 179.00
Description
LCD CNC heating disc timing magnetic stirrer, stainless steel ceramic coated disc surface, national standard plug, 200-240V, 50Hz/60Hz.
Features
The new heating stirrer has new rapid heating and stirring technology and precise temperature control technology, which is suitable for unmanned operation;
Heated magnetic stirrer with safe temperature control for unmanned operation;
Two independent safety loops;
Independent temperature sensor detection, protection temperature can be set;
External PT1000 temperature sensor can be used;
At the end of the experiment, the heat warning screen shows the residual temperature of the Heating Plate;
With timing function, after the time is reached, it can automatically stop working;
Timing range: 1 minute to 99 hours and 59 minutes;
A variety of operating modes ensure that the stirring and heating functions are not altered by external factors.

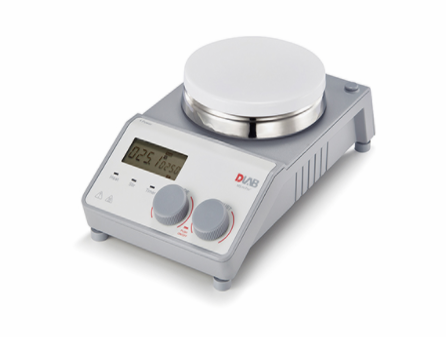

Pictures
DLAB MS-H-ProT (set) Magnetic StirrerSpecifications
| LIST | VALUE |
|---|---|
| Max. Capacity of stirring | 20L |
| Stirring speed | 100~1500rpm |
| Temperature range | RT+~340℃ |
| Timer Range | 1~5999min |
| Stir size | 80mm |
| Dimensions | 160*280*85mm |
| Machine Weight | 2.8kg |
| Panel Material | Pottery and porcelain coatings |
| Motor type | DC brushless motor |
| input power | 18W |
| output power | 10W |
| Heating power | 550W |
| Power Supply | 100~120/200~240V |
| Rated frequency | 50/60Hz |
| station number | 1 station |
| display mode | LCD |
| RPM display resolution | ±1 |
| Heating power | 500w |
| Temperature control Accuracy | ±1（＜100℃）±1%（＞100℃） |
| Safety protection temperature | 360℃ |
| Temperature display resolution | ±0.1℃ |
| Temperature transducer | PT1000 |
| External temperature transducer temperature control Accuracy | Pt1000:±0.2℃ |
| Waste heat warning function | 50℃ |
| Data Interface | RS-232 |
| Protection level | IP42 |
| Allowable environment temperature | 5~40℃ |
| Allowable Relative Humidity | 80% |
DLAB MS-H-ProT (set) Magnetic Stirrer Packing list
Host X1, external temperature probe X1, PT1000 temperature probe support assembly X1, quality assurance card X1, certificate of conformity X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
