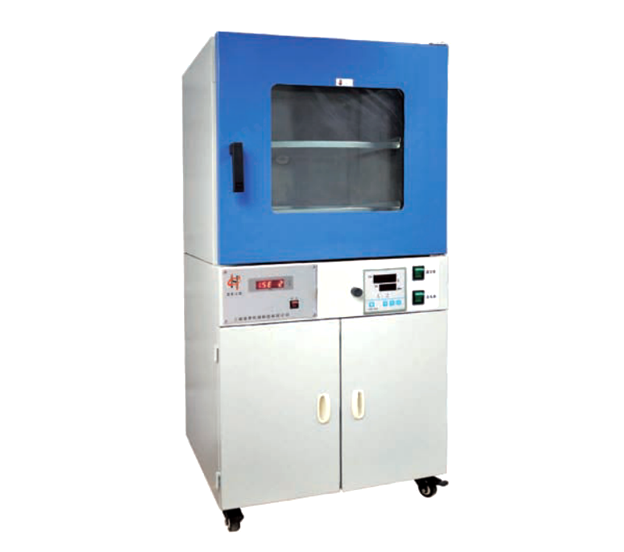

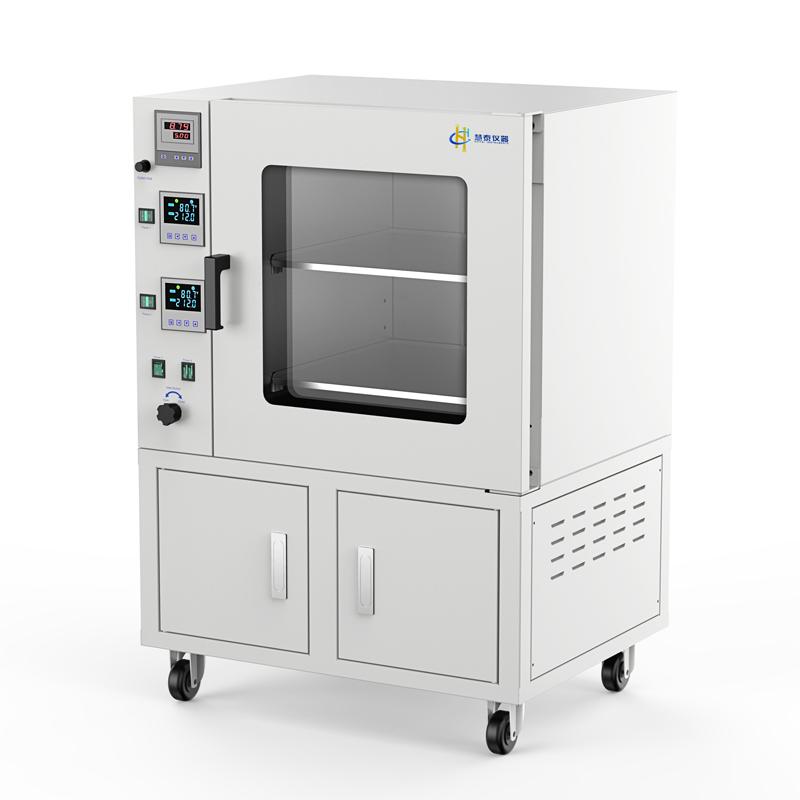

HUITAI HTZ-6020L Vacuum degree digital drying oven volume 20L

Overview

Widely used in biochemistry, chemical and pharmaceutical, medical and health, agricultural scientific research, environmental protection and other research and Applications, for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and effective drying of heat-sensitive, easily decomposed, easily oxidized substances and complex composition items.

Advantages of vacuum drying technology

 The vacuum environment greatly reduces the boiling point of the liquid that needs to be expelled, so vacuum drying can be easily applied to heat-sensitive substances;

 For samples that are not easy to dry, such as powder or granular samples, vacuum drying can effectively shorten the drying time;

 Various mechanical parts or other porous samples with complex structures are cleaned and then vacuum-dried, leaving no participating substances after complete drying;

 Safer to use - under vacuum or inert conditions, the possibility of thermal explosion of oxides is completely eliminated;

 Compared with ordinary drying that relies on air circulation, powdery samples will not be blown or moved by the flowing air.

Features

1) Vacuum degree control

The digital display vacuum gauge automatically controls the vacuum degree, providing you with more accurate and effective vacuum degree control. The vacuum degree can be conveniently controlled through the panel, and the vacuum degree can be easily controlled between any two points or areas within the range of 1.0×10 to 1.0×105 (Pa)-1, and the control accuracy is ±1%. The vacuum gauge uses a resistance silicon tube pressure sensor to ensure a stable pressure value and provide you with more accurate and effective vacuum control

2) The heating element is located on the inner partition of the box, and the heating time is shortened by 50% compared with the traditional vacuum drying box.

3) The aluminum shelf stamped by special process has high temperature non-oxidation and fast heat conduction. Minimize heat loss

4) The cuboid studio makes the effective volume utilization rate large, and the microcomputer temperature controller ensures accurate and reliable temperature control.

5) Toughened, bulletproof double-layer glass door to observe the objects in the working room at a glance, and can fill the interior with inert gas.

6) The closing tightness of the box door can be adjusted arbitrarily by the user, and the integrally formed silicone rubber door seal ensures high vacuum in the box.

7) The working room is made of stainless steel plate, enclosure is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

8) Storage, heating, testing and drying are carried out in an environment without oxygen or filled with inert gas, which will not cause oxidation.

Host X1, Shelf X1 (non-extractable), manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
