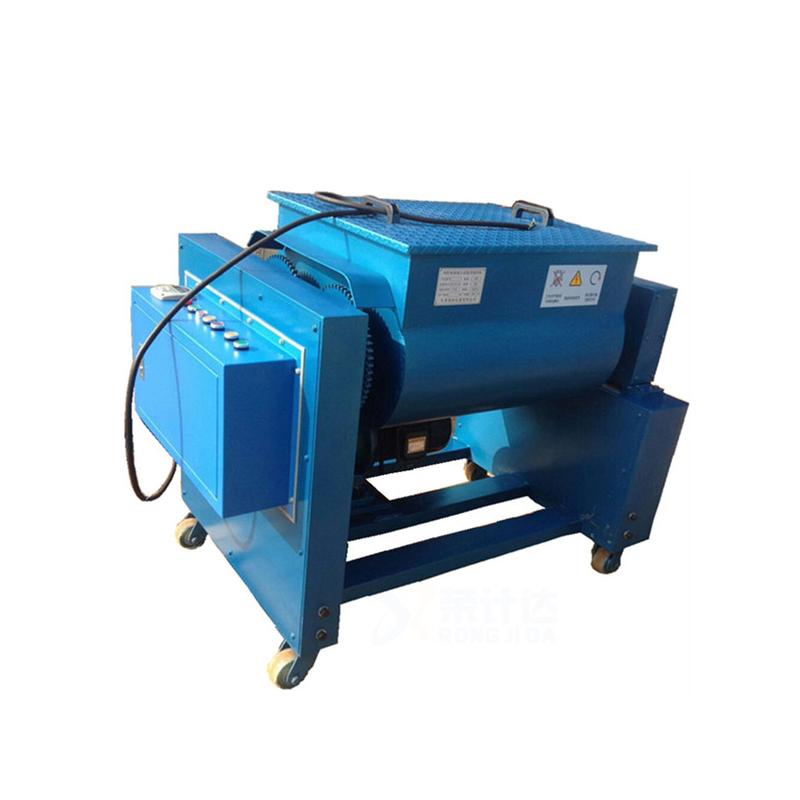

RONGJIDA HJS-60 double horizontal shaft concrete Stirrer

Introduction

Mortar multifunctional testing machine is a professional testing instrument, please read the instruction carefully before use. And it is operated by professional experimenters to avoid injury caused by improper operation. The product performance of the twin-shaft concrete mixer meets and exceeds the standard requirements. Due to the scientific and reasonable design, strict quality control and its unique structure, the twin-shaft mixer has the characteristics of high mixing efficiency, more uniform mixture, and cleaner discharge. It is suitable for institutional building materials or concrete laboratories such as scientific research institutes, mixing stations, and testing units. The twin-shaft concrete mixing mechanism has been included in the national industry mandatory standard - "Concrete Test Mixer" (JG244-2009).

product structure

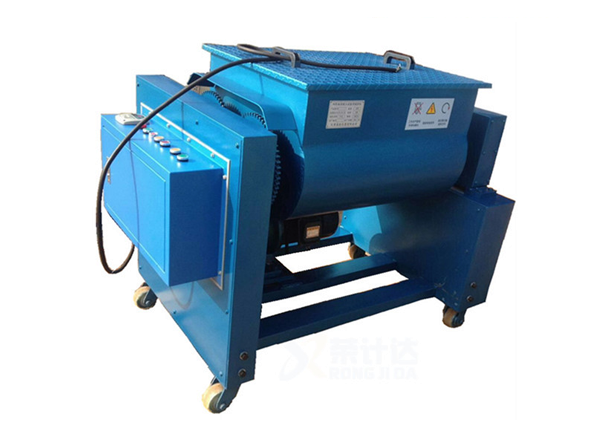

This machine is composed of frame, stirring device, transmission system, limit device and electrical control system. The frame is the supporting part of the whole equipment, which is welded by channel steel. The stirring device is composed of a mixing drum, a stirring shaft, and a stirring shovel. The stirring shovel is fixed on the stirring arm, and is integrated with the stirring shaft to form two sets of spirals. The direction is opposite, but the lead and the helix angle are the same as the spiral ribbon mixing shovel, the gap between the mixing shovel and the inner arm of the mixing drum can be adjusted slightly. The transmission mechanism is composed of a speed reducer and a coupling. The cylinder limit device is composed of a locking pin and a positioning hole. The electrical control system has the functions of starting, jogging, stopping and timing.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
