Introduction

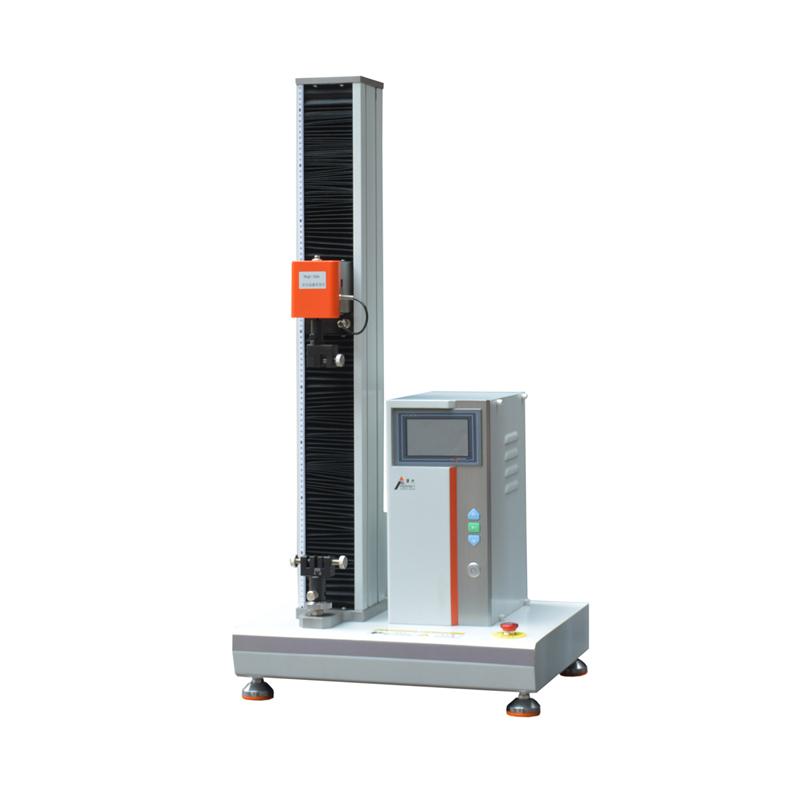

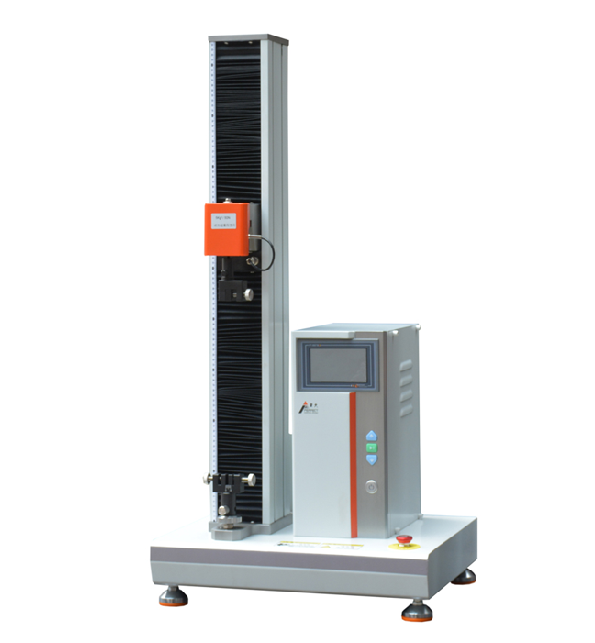

Application: PT-6086S dual-display double-control peel Strength Tester is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, which is used for peel strength testing of various adhesive products in different ways. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength.
Perfect PT-6086S Peel strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 2, 5, 10, 20, 50, 100kg choose one |
| Measurement and control software | Professional testing software under Windows platform |
| Force Precision | <±0.5% |
| force resolution | 1/500000 |
| Measurement range | 0.5~100%F.S |
| Precision indication | Better than +/- 0.5% |
| Test speed range | 0.001~1000mm/min |
| effective travel | ≤ 650mm (without fixture) |
| Test space | Φ120mm |
| Force unit | Measurement units including SI units, users can also customize the required units |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing |
| test project | Can do tension, pressure and fatigue test (optional function) |
| Dimensions | 570*470*1200mm |
| Weight | Approx. 70kg |
| Power system | AC servo motor |
| Power supply Voltage | 1PH，AC220V，50Hz，10A或指定 |
Perfect PT-6086S Peel strength Tester Packing list
Host X1, 180 ° disbonding fixture X1, disbonding steel plate 50 * 150mmX3, PT-6020 manual rolling roller X1, 232 data cable X1, instrument power cord X1, CD manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
