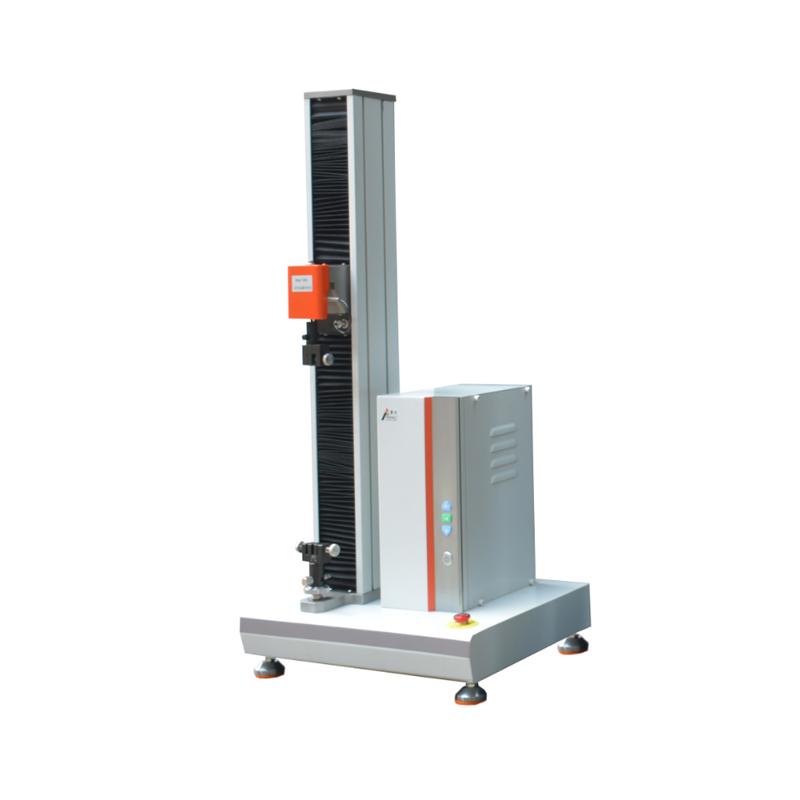

PERFECT PT-6081B Computer Peel strength Tester
Perfect
PT-6081B
-
JINGHUAYIQI LD-BL-A (180 °/50kg) 180 ° Peel strength tester
$ 1585.00 -
Jinan HORIZON BLJ-100 electronic disbonding Tester 100N
$ 2033.00 -
JINGHUAYIQI LD-BL-A (180 °/200kg) 180 ° Peel strength tester Adhesive tape disbonding force test
$ 1585.00 -
CHENCHI WDB-05 Tensile Tester 500N stroke 400mm
$ 1544.00 -
CHENCHI WDB-010 Peel strength Tester 1000N stroke 400mm
$ 1544.00
Introduction

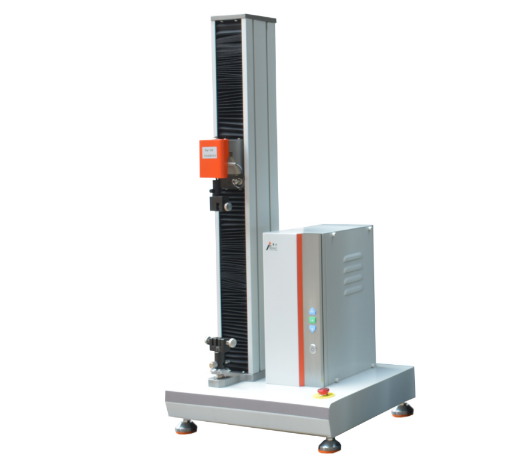

Application: PT-6081B Computerized Peel Strength Tester is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, which is used for peel strength testing of various adhesive products in different ways. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength.
Perfect PT-6081B Peel strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 2, 5, 10, 20, 50, 100kg choose one |
| Force Precision | <±1% |
| force resolution | 1/500000 |
| force resolution | 1/10000 |
| Measurement range | 1~100%F.S |
| Precision indication | Better than +/- 1% |
| Test speed range | 0.5~500mm/min |
| effective travel | ≤ 650mm (without fixture) |
| Test space | Φ120mm |
| Force unit | Measurement units including SI units, users can also customize the required units |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing |
| test project | Can do tension, pressure and fatigue test (optional function) |
| Dimensions | 570*470*1200mm |
| Weight | Approx. 70kg |
| Power system | Stepping motor |
| Power supply Voltage | 1PH，AC220V，50Hz，10A或指定 |
Perfect PT-6081B Peel strength Tester Packing list
Host X1, 180 ° disbonding fixture X1, disbonding steel plate 50 * 150mmX3, PT-6020 manual rolling roller X1, instrument power cord X1, CD manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
