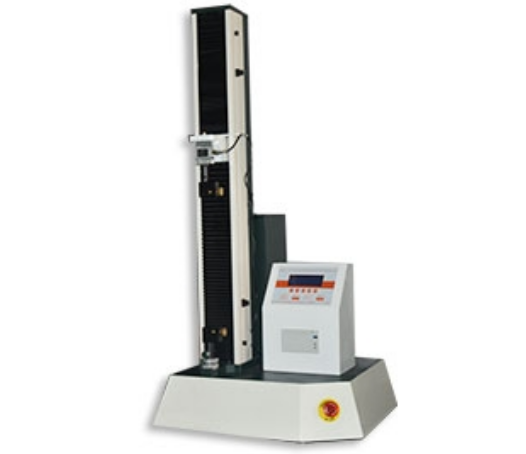

PERFECT PT-6081 Electronic Peel strength Tester
Perfect
PT-6081
-
CHENCHI WDB-05 180 ° Peel strength Tester 500N
$ 1544.00 -
JINGHUAYIQI LD-BL-A (180 °/100kg) 180 ° Peel strength tester
$ 1585.00 -
JINGHUAYIQI LD-BL-A (180 °/2kg) 180 ° Peel strength tester Adhesive tape disbonding force tester
$ 1585.00 -
CHENCHI WDB-01 Peel strength Tester 100N stroke 400mm
$ 1544.00 -
JINGHUAYIQI LD-BL-A (180 °/5kg) 180 ° Peel strength tester Adhesive tape disbonding force tester
$ 1585.00
Introduction
Product peel Strength Tester application: PT-6081 peel Strength Tester is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, and used for peel strength testing in different ways of various adhesive products. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength.

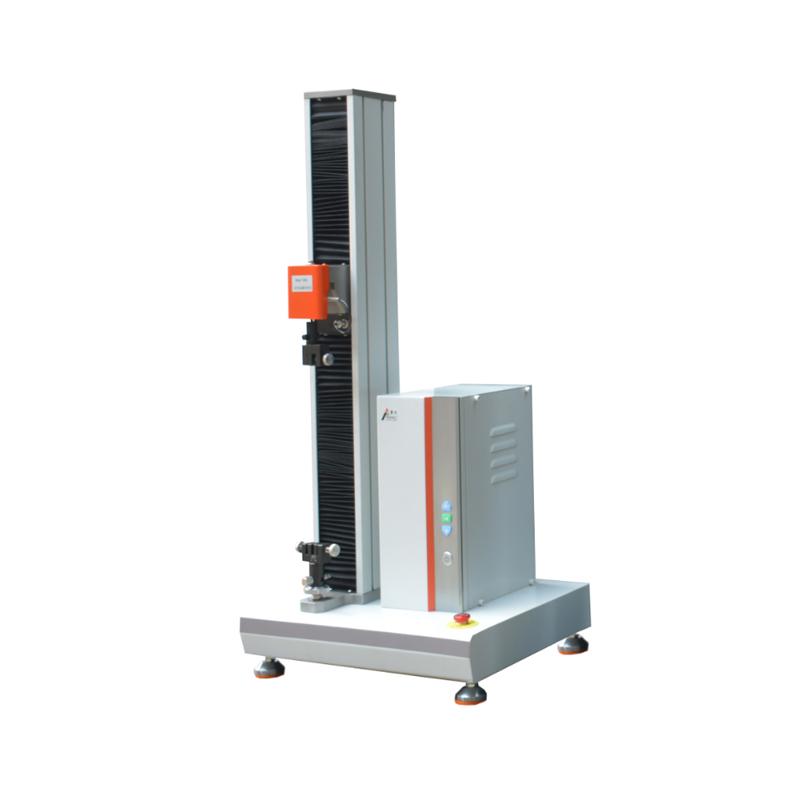

Perfect PT-6081 Peel strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 2, 5, 10, 20, 50, 100kg choose one |
| monitor | Strength and extension display |
| Force Precision | <±1.0% |
| force resolution | 1/10000 |
| Measurement range | 1~100%F.S |
| Precision indication | Better than +/- 1% |
| Test speed range | 1~400mm/min |
| effective travel | ≤ 550mm (without fixture) |
| Test space | Front and rear 120mm, left and right < unk > |
| Force unit | kgf，gf，N，kN，Ibf |
| stress unit | MPa，kPa，kgf/cm2，Ibf/in2 |
| Unit switch | mm，cm，in |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing |
| Pick up method | Manual pick-up and preset pick-up (20 points) functions during the test |
| Dimensions | 570*470*1200mm |
| Weight | About 45kg |
| Power system | Stepping motor |
| Power supply Voltage | 1PH，AC220V，50/60Hz，10A或指定 |
Perfect PT-6081 Peel strength Tester Packing list
Host X1, 180 ° disbonding fixture X1, disbonding steel plate 50 * 150mmX3, PT-6020 manual rolling roller X1, instrument power cord X1, CD manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
