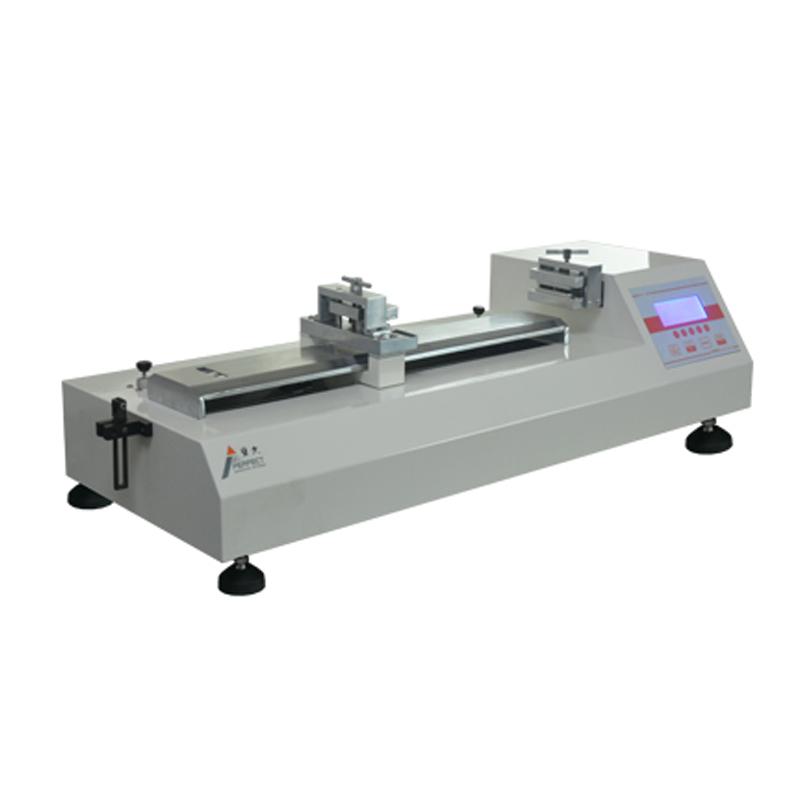

PERFECT PT-6082 horizontal Peel strength Tester
Perfect
PT-6082
-
Jinan HORIZON BLJ-100 electronic disbonding Tester 50N
$ 2033.00 -
JINGWEN JW103CW02-50N horizontal heat seal Peel strength Tester 0.5 grade/50N
$ 1532.00 -
CHENCHI WDB-02 Tape Peel strength Tester 200N Stroke 400mm
$ 1544.00 -
CHENCHI WDB-02 Peel strength Tester 200N
$ 1544.00 -
Jinan HORIZON BLJ-100 electronic disbonding Tester 100N
$ 2033.00
Introduction
Product use: This product is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, and is used for peel strength testing of various adhesive products in different ways. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength tests.
Perfect PT-6082 Horizontal Peel strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 2, 5, 10, 20, 50, 100kg choose one |
| monitor | Strength and extension display |
| Strength and extension display | Better than +/- 1.0% |
| force resolution | 1/10000 |
| Measurement range | 1~100%F.S |
| Precision indication | Better than +/- 1% |
| Test speed range | 1~400mm/min |
| effective travel | ≤ 500mm (without fixture) |
| Force unit | kgf，gf ，N，kN，Ibf |
| stress unit | MPa，kPa，kgf/cm2，Ibf/in2 |
| Unit switch | mm，cm，in |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing |
| Pick up method | Manual pick-up and preset pick-up (20 points) functions during the test |
| Dimensions | About 96 * 36 * 30cm |
| Weight | About 25kg |
| Power system | Stepping motor |
| Power supply Voltage | 1PH，AC220V，50/60Hz，10A 或指定 |
Perfect PT-6082 Horizontal Peel strength Tester Packing list
Host X1, 180 ° disbonding fixture X1, 3 disbonding steel plate 50 * 150mmX3, PT-6020 manual rolling roller X1, instrument power cord X1, CD manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
