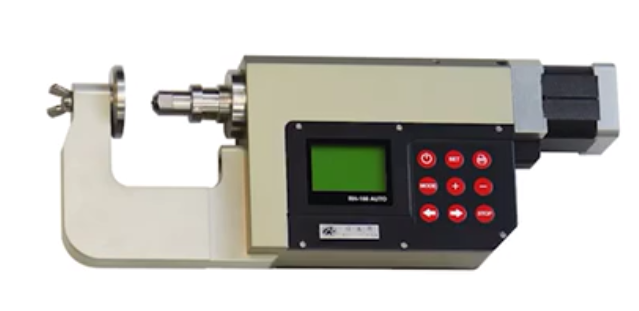

G & R TECH G & R TECH RH-150 AUTOPlus-A Portable Rockwell Hardness Tester

Introduction

It is a high-precision, fully automatic Rockwell Hardness Tester. It is widely used in major industrial countries in Europe and the United States.

Application scope

For hardness testing of various metal materials, according to user needs, instrument modules are combined into special instruments to meet the hardness testing needs of parts of various shapes and materials. Suitable for users of large batch testing or single piece testing. Including aviation, aerospace industry, military industry, railway locomotive industry, automobile industry, metal smelting, machining, mold manufacturing industry, etc. RH-AUTO has National Institute of Standards and Technology (NIST) traceability. Product inspection suitable for international trade.

Features

1) High precision, 0.1 HR resolution and repetition rate. RH-AUTO adopts G&R's patented loading system and displacement measurement system to ensure the testing accuracy of RH-AUTO. The resolution and repetition rate of traditional Rockwell Hardness Testers are 0.5 to 1.5HR.

2) The screw is progressively loaded and controlled by force sensor feedback. The force applied to the pressure head has an error of only +-0.1Kg. The traditional Rockwell Hardness Tester loading system consists of a set of enamel codes, such as 15Kg, which is amplified to 150Kg by a lever and applied to the indenter. Due to the accuracy and wear of the lever fulcrum, the force applied to the indenter may have an error of +-2Kg. .

3) Using G&R's patented displacement sensor, the measurement accuracy is 0.1μm. The traditional Rockwell Hardness Tester uses an inductive displacement sensor or a mechanical dial indicator, and the measurement accuracy is 1μm to 2μm.

4) RH-AUTO adopts a building block modular structure, which consists of a measuring head and a set of different aluminum alloy frames. It can be combined into various Hardness Testers according to user requirements.

5) Adopting G & R's patented loading system and displacement measurement system, the RH-AUTO can work vertically, lying down or sideways without affecting the measurement accuracy. This feature is suitable for testing requirements of large workpieces and workpieces with special shapes. The traditional Rockwell Hardness Tester can only be placed vertically due to the loading method.

It can also form a portable Hardness Tester to measure parts of various shapes in various Operating Environments.

6) RH-AUTO has the function of measuring thin-walled tubes and spherical parts, which is impossible for traditional Rockwell Hardness Testers.

7) It is an automated measuring instrument that can complete high-precision testing by just pressing a button. The test results display is easy to read and can be output wirelessly to devices such as printers and computers via Bluetooth 2.0. Suitable for large-volume parts testing or small-batch parts testing. RH-150AUTO is simple to operate and easy to learn. This is unmatched by traditional Rockwell Hardness Testers.

8) There are 9 switch keys to complete various settings, including automatic conversion of HR hardness scale into HB, HV, etc. according to ASTM standard E140.

9) Comply with ASTM standards E18 and E140.

Host X1, 0-25mm bow body X1, diamond probe X1, 1/16 "carbide ball probe X1, positioning sleeve X1, self-centering flat anvil X1, self-centering V-shaped anvil X1, flat anvil X1, V-shaped anvil X1, rockwell hardness block X3, rechargeable battery X1, charger X1, hexagonal wrench X1, plastic suitcase X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
