        Home> Thickness Gauge> LiuLing> LiuLing CH-12.7-STSX Plastic film desktop thickness gauge

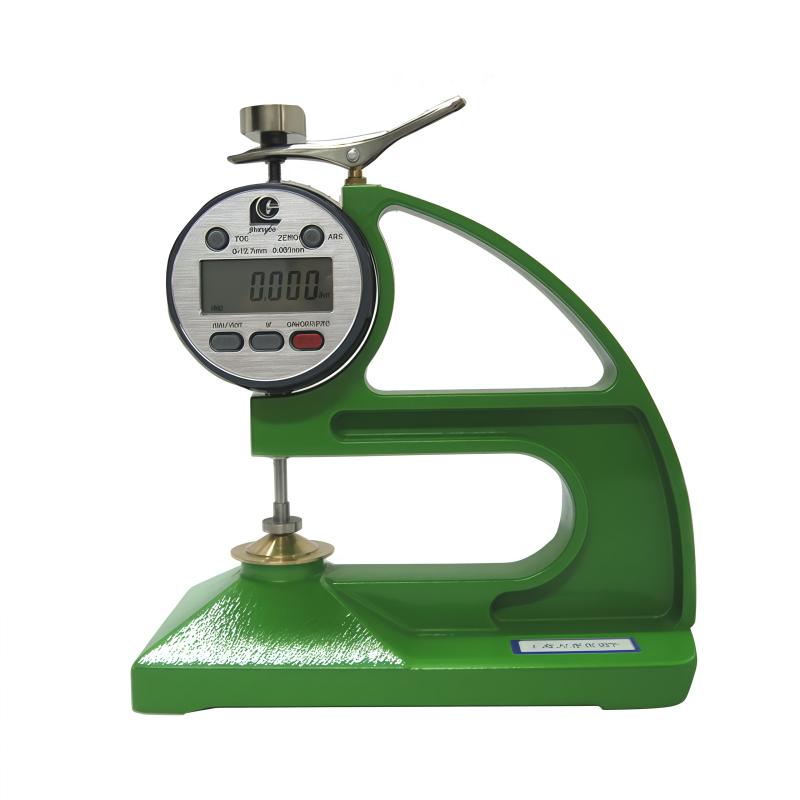

        LiuLing CH-12.7-STSX Plastic film desktop thickness gauge

        LIULING CH-12.7-STSX Plastic film sheet desktop thickness gauge, desktop thickness gauge

        Measurement range 0~ 12.7mm, accuracy ≤ 0.005mm, Graduation 0.001mm, probe diameter φ 5mm, in line with the international standard ISO4593-1993, suitable for Plastic film Film thickness accurate measurement.

        Brand
        SKU: NB019848
        China LiuLing
        Stock
        Loading…
        Price
        $ 490.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          LiuLingLOGO

          LiuLing shopSE

          Information
          Datasheet RFQ Contract Catalog Manual
          What else did others buy
          Genuinegoods

          • LiuLing CH-12.7-STSX Plastic film desktop thickness gaugeOverview

          • Specifications
          • Comments
          • FAQs
          CH-12.7-STSX
          Plastic film desktop thickness gauge
          • LIULING CH-12.7-STSX Plastic film sheet desktop thickness gauge, desktop thickness gauge
          Measurement range 0~ 12.7mm, accuracy ≤ 0.005mm, Graduation 0.001mm, probe diameter φ 5mm, in line with the international standard ISO4593-1993, suitable for Plastic film Film thickness accurate measurement.

          Introduction

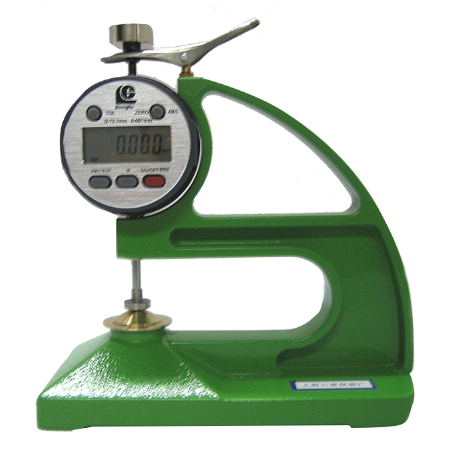

          Liuling CH-12.7-STSX Digital Display Thickness Gauge for Thin Films and Sheets of Plastic Thickness Gauge This Thickness Gauge is an instrument for measuring the thickness of plastic films and sheets by mechanical measurement, but it is not suitable for embossed films and sheets. It refers to the implementation of the national standard GB/T6672-2001 "Determination of Thickness of Plastic Films and Sheets-Mechanical Measurement Method". ".



          VS

          LiuLing CH-12.7-STSX Plastic film desktop thickness gaugeSpecifications

          LIST VALUE
          Measurement range 0~12.7mm
          Measurement accuracy ≤0.005mm
          reading display digital display
          Graduation 0.001mm
          Force at the end of the probe When the upper measurement surface is SR15mm-SR50mm radius of curvature and the lower probe is flat, the force exerted by the probe on the sample is 0.1-0.5N; equivalent to 10.2gf-51gf
          Probe diameter φ 5mm (flat surface)
          Meet the standard GB/T6672-2001 MOD ISO 4593-1993

          LiuLing CH-12.7-STSX Plastic film desktop thickness gauge Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          What is the difference between CH-12.7-STSX and BTSX?
          [A]
          One for film, one for latex.
          [Q]
          Plastic film with CH-12.7-STSX this thickness gauge?
          [A]
          Yes!
          [Q]
          Can all digital display plastic film sheet desktop thickness gauges be used for inspection in the JJG (Light Industry) 50.2 standard?
          [A]
          Not necessarily, but this CH-12.7-STSX digital display plastic film sheet desktop thickness gauge can be considered.
