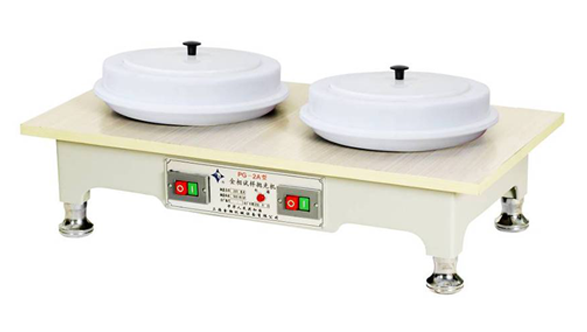

YUZHOU PG-2A metallographic sample polishing machine, double disc independent control 230mm throwing disc
Double disc independent control for double person operation at the same time, 230mm large throwing plate to adapt to a variety of materials, Rotation speed 900r/min transmission smooth low noise, easy maintenance.
YuZhou
PG-2A
-
SuJie ZJ-900 Mobile Air Self-purifier 820 * 610 * 120mm
$ 1197.00 -
JINGXIN JL-A301 Carr Angle of Repose Tester, powder Angle of repose meter
$ 478.00 -
Dingsheng XR-14 latex high-speed mechanical stability Tester, high-speed mechanical stability Tester
$ 2311.00 -
AMITTARI AT-136PC Multifunctional Rotation speed meter, photoelectric contact dual-use Rotation speed Measurement Instrument
$ 173.00 -
SuJie ZJ-1200 Mobile Air Self-purifier 820 * 610 * 120mm
$ 1575.00
Introduction

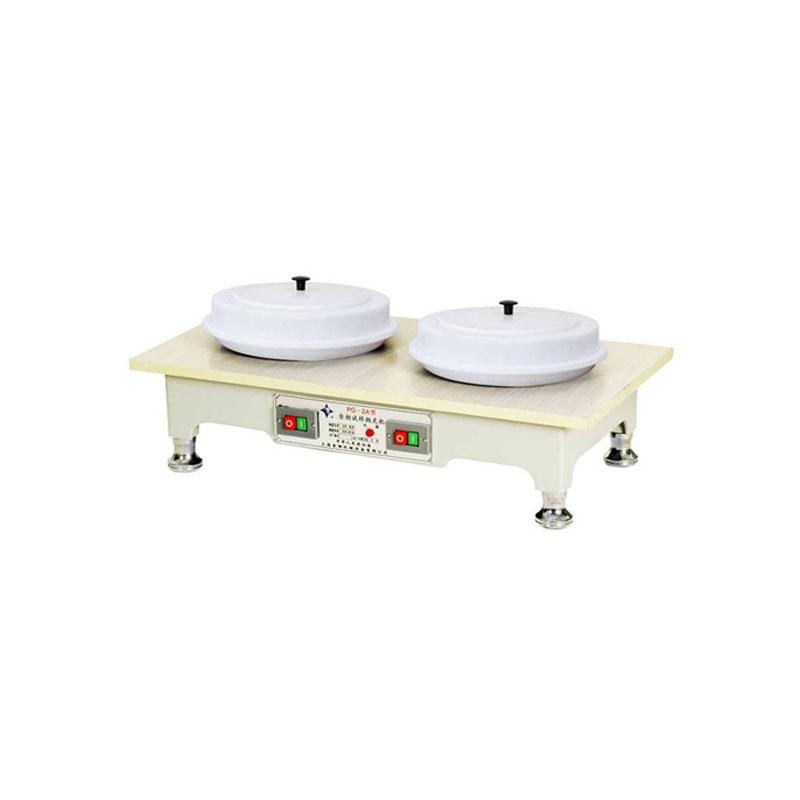

In the preparation process of metallographic samples, polishing of the samples is a major process. After polishing the polished samples on a polishing machine, a bright mirror-like surface can be obtained. The PG-2A metallographic sample polishing machine is a classic product. The two discs are independently controlled and can be operated by two people at the same time. It has the advantages of smooth transmission, low noise, easy operation and maintenance, etc. The diameter of the polishing disc is large and suitable for a variety of materials. polishing requirements. This product is divided into desktop and floor-standing models for customers to choose from.
YuZhou PG-2A Metallographic sample polishing machineSpecifications
| LIST | VALUE |
|---|---|
| Toss diameter | 230mm |
| Throwing cloth diameter | 230mm |
| Rotation speed | 900r/min(1400r/min 定 Model) |
| Motor Power | 0.2kW |
| Input power | 380V, 50Hz, 4A, three-phase four-wire |
| Dimensions | 800*420*200mm |
| Net Weight | 33kg |
YuZhou PG-2A Metallographic sample polishing machine Packing list
host X1, throwing plate (230mm) X2, ferrule X2, adhesive-backed polishing cloth (230mm) X2, manual X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
