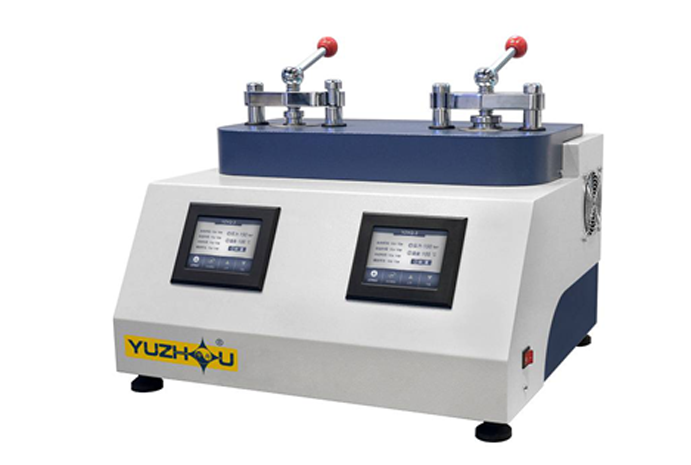

YUZHOU YZXQ-3 Automatic metallographic sample inlay machine, double head inlay machine

Introduction

Mounting is a very important step in the preparation process of metallographic specimens, especially for some tiny samples that are difficult to hold, irregularly shaped specimens that require edge protection, or specimens that require automatic grinding and polishing. The inlay is the required process. The YZXQ-3 automatic double-head inlay machine is a professional hydraulic water-cooled automatic sample inlay equipment. The inlay process is controlled by a single-chip microcomputer program, which realizes the integration of heating, pressurization, pressure maintaining, cooling, pressure relief and other inlay processes. Key-type operation, no need for operator supervision, and sample inlaying is automatically completed. The machine is pressurized by a hydraulic pump, with greater pressure and tighter inlaid samples; the specifications of the double-head mold sets can be selected at will, with independent control and operation; the unique hot and cold separation design makes the operation safer and more stable; high-definition touch screen display and control, real-time display Pressure and temperature, the inlay plan can be saved and easily retrieved; equipped with a water cooling system, the sample preparation speed is fast, and one machine can be used as two machines, making the sample preparation work easier and less labor-intensive, and the inlay quality is better and more stable. (Limited to thermosetting materials, such as bakelite powder, electric jade powder, etc.)

Host X1, swirl/spin handle X2, upper module X2, oil pump breathing cover X1, water inlet pipe X1, water outlet pipe (< unk > 10mm) X2, water inlet filtrate net X1, clamp X1, inlaid powder (500g) X1, glassgraduates with scale X1, product manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
