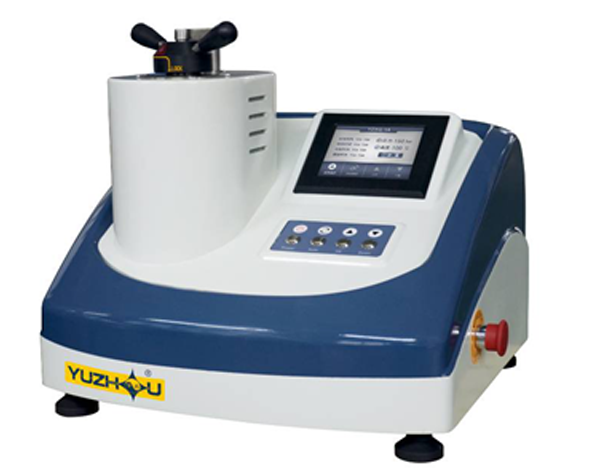

YUZHOU YZXQ-1A Automatic Metallographic Sample Inlay Machine, Automatic Hydraulic Inlay Machine

Introduction

Mounting is a very important step in the preparation process of metallographic specimens, especially for some tiny samples that are difficult to hold, irregularly shaped specimens that require edge protection, or specimens that require automatic grinding and polishing. The inlay is the required process. The YZXQ-1A automatic mounting machine is a professional hydraulic water-cooled automatic sample mounting equipment. The mounting process is controlled by the microcontroller program, realizing one-click mounting processes such as heating, pressurization, pressure maintaining, cooling, and pressure relief. Operation, no operator is required to be on duty, and the sample mounting is automatically completed. The machine is pressurized by a hydraulic pump, with greater pressure and tighter inlaid samples; the mold cavity is lengthened, and the isolation block can be used to produce two samples at the same time; the unique hot and cold separation design makes the operation safer and more stable; high-definition touch screen and physical With dual button control, the inlay plan can be saved and easily retrieved; equipped with a water cooling system, the sample preparation speed is fast, and two sample inlays can be completed in as fast as 7 minutes, making the sample preparation work easier and more labor-saving, and the inlay quality is better and more reliable. Stablize. (Limited to thermosetting materials, such as bakelite powder, electric jade powder, etc.)

Host X1, middle block X1, oil pump breathing cover X1, water inlet pipe X1, water outlet pipe (< unk > 10mm) X1, water inlet filtrate net X1, clamp X1, inlaid powder (500g) X1, glassgraduates with scale X1, inner hexagonal wrench X1, brush X1, product manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
