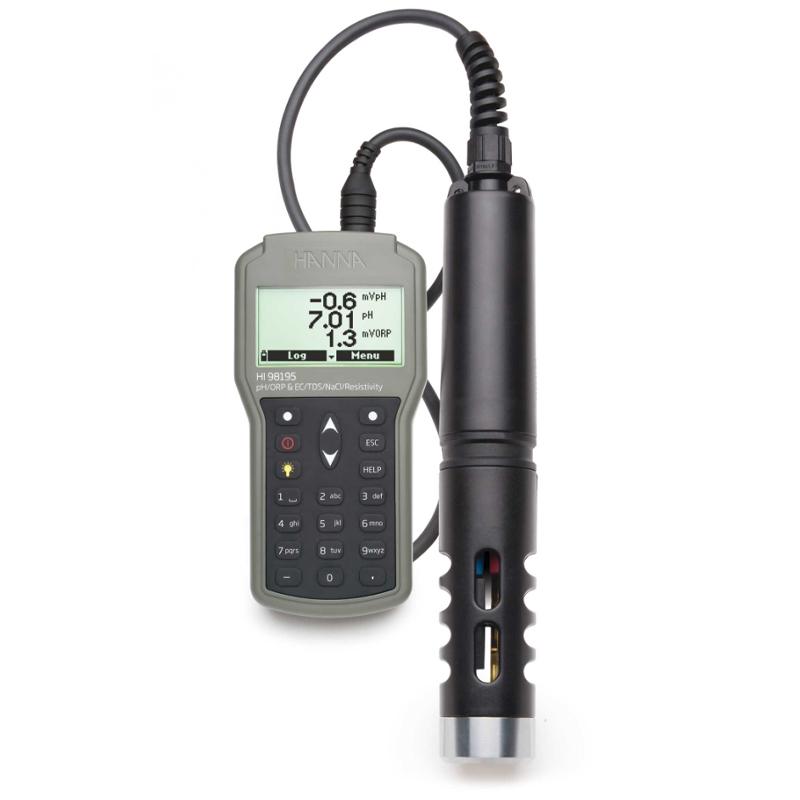

HANNA HI98195/10 10-parameter water quality analysis Tester 10 meters long
The HI98195/10 multiparameter Water Quality Analyzer is equipped with a 10-meter electrode, suitable for deep water quality monitoring. With IP67 waterproof performance, it can quickly measure 10 water quality indicators such as pH, ORP, conductivity, etc. Support 45,000 Data storage, USB interface and GLP function, suitable for long-term data collection and analysis in complex wild environments.
HANNA
HI98195/10
HI98195/40
HI98195/20
HI98195
Portable high-precision professional multi-parameter analysis and Tester, in line with IP67 international waterproof standard, acidity pH-pH-mV conversion - redox ORP - conductivity EC - resistivity - total dissolved solids TDS - salinity - seawater specific gravity - atmospheric pressure - temperature and other conventional important 10 items [including 5 kinds of measured values and 5 kinds of calculated values] water quality indicators are quickly and accurately measured, and the range and unit conversion are automatically identified; New design, on-screen calibration operation step prompt, GLP function, quick query of relevant data, acidity verification function, automatic identification calibration and user-defined calibration, automatic endpoint lock function, USB data interface, large-capacity data storage, good data management.
peculiarity
The new ergonomic design, large background light, chart display function, good cost performance
The main body is IP67 waterproof and anti-slip design, and the electrode is IP68 waterproof standard, which can meet the measurement of harsh environments such as pipelines or deep wells
Multi-parameter integrated electrode design, intelligent electrode holder built-in microprocessor and temperature sensor, can be installed pH (ORP) and EC electrodes at the same time
Electrode position is color-coded for easy installation and automatic identification
The water quality indicators of 9 items are quickly measured at the same time, and the full-screen display is clear at a glance
Unique quick calibration function, automatic error diagnosis function, automatic recognition of measuring range, easy replacement of measurements
Powerful GLP management, large-capacity 45,000 data storage functions, USB data interface, data analysis and management software
Good anti-electromagnetic signal interference ensures measurement reliability, accuracy, and a wide range of applications
HANNA HI98195/10 Multiparameter DetectorSpecifications
| LIST | VALUE |
|---|---|
| pH-mV range | 0.00~14.00pH/±600.0mV |
| pH-mV resolution | 0.01PH/0.1mV |
| pH-mV Measurement Accuracy | ±0.02pH/±0.5mV |
| pH-mV calibrated mode | Up to three points of automatic calibrate recognition and one custom calibrate, built-in five standard calibrate points 4.01, 6.86, 7.01, 9.18, 10.01 pH parameters |
| ORP Measurement range | ±2000mV |
| ORP resolution | 0.1mV |
| Measurement Accuracy of ORP | ±1.0mV |
| ORP calibrated mode | Single point custom calibrated (relative mV) |
| Conductivity range | 0~200mS/cm (Absolute Conductivity Detector up~ 400mS/cm) |
| EC resolution | 1μS/cm、0.001ms/cm、0.01mS/cm、0.1mS/cm、1mS/cm |
| Measurement Accuracy of conductivity | Readings +/- 1% or +/- 1mg/L (ppm), whichever is the largest |
| Conductivity calibrated mode | Automatic recognition of single point calibrate, user-defined calibrate, built-in six Conductivity Detector standard calibrate points 84 μS/cm, 1413 μS/cm, 5.00mS/cm, 12.88mS/cm, 80.0mS/cm, 111.8mS/cm |
| TDS range | 0~400000Mg/Lorppm (MAX Maximum depends on TDS coefficient) |
| TDS resolution | 1mg/L(ppm)、0.001g/L（ppt）、0.01g/L（ppt）、0.1g/L（ppt）、1g/L（ppt） |
| TDS Measurement Accuracy | Readings +/- 1% or +/- 1mg/L (ppm), whichever is the largest |
| TDS calibrated mode | To calibrate conductivity or salinity |
| Resistivity range | 0~999999Ω·cm；0~1000.0kΩ·cm；0~1.0000MΩ·cm； |
| resistivity resolution | Depending on the reading |
| Resistivity calibrated mode | To calibrate conductivity or salinity |
| Salinity range | 0.00~70.00PSU |
| Salinity resolution | 0.01PSU |
| Measurement Accuracy of salinity | Reading +/- 2% or +/- 0.01PUS, whichever is the largest |
| Salinity calibrated mode | To calibrate conductivity |
| Measurement range of seawater specific gravity | 0.0~50.0σt，σ0，σ15 |
| Seawater specific gravity resolution | 0.1σt，σ0，σ15 |
| Measurement Accuracy of seawater specific gravity | ±1.0σt，σ0，σ15 |
| Seawater specific gravity calibrated mode | To calibrate conductivity |
| Measurement range | -5.00~55.00℃；23.00~131.00℉；268.15~328.15K |
| temperature resolution | 0.01℃;0.01℉;0.01K |
| Measurement Accuracy | ±0.15℃;±0.27℉;±0.15K |
| Temperature calibrated mode | Single point user calibrated |
| temperature compensation | Automatic temperature compensation, -5.00~55.00 ℃, 23.00~131.00 ° F |
| Data storage | 45000 measurement Data storage, (continuous automatic storage or manual storage) |
| recording interval | Can be set from 1 second to 3 hours |
| Interface | USB Interface (HI9298194 data management software is recommended) |
| Operating Environment | 0~50℃(32~122℉);RH100%IP67 |
| Battery operated | 1.5VAA battery * 4, about 360 hours of continuous use |
| Weight/Size | 185x93x35.2mm（7.3x3.6x1.4“）/400g（14.2oz） |
HANNA HI98195/10 Multiparameter Detector Packing list
Host, HI7698195-10 built-in pH-EC multiparameter electrode, 10 meters long, HI9828-20 fast comprehensive calibrating liquid (specification: 230mL), HI7698290 fast calibrating measurement cup, HI920015 data transmission cable [USB interface], Chinese and English user manual, HI720194 instrument carrying case
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
