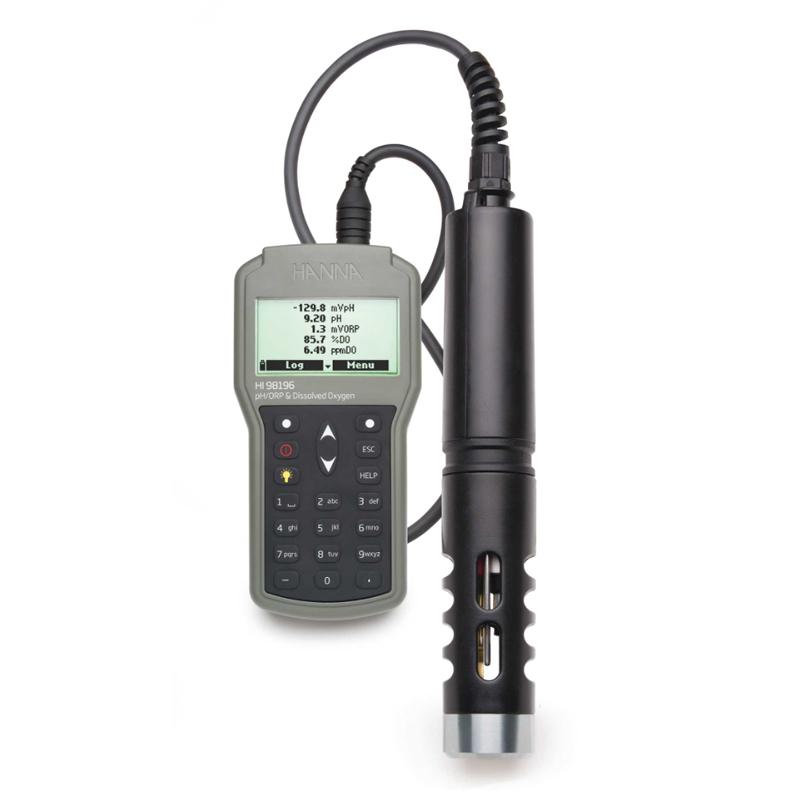

HANNA HI98196/10 Water Quality Analyzer 10 meters long
Equipped with 10 meters of cable. Its IP67 waterproof and anti-skid body and IP68 waterproof electrode ensure Reliability in harsh environments. The instrument can simultaneously measure seven key water quality indicators, and is easy to operate. It has a large-screen LCD display, on-screen operation prompts, and multi-language support.
HANNA
HI98196/10
HI98196/40
HI98196/20
HI98196
-
HANNA HI8424 Portable pH/ORP/temperature Water Quality Meter
$ 602.00 -
![HANNA HI97733 Ammonia Nitrogen [HR] Portable Photometer, Detection of Ammonia Nitrogen in Water](//img.nbchao.com/imgs/200/2024/03/29/1428160307966234.jpg)
HANNA HI97733 Ammonia Nitrogen [HR] Portable Photometer, Detection of Ammonia Nitrogen in Water
$ 540.00 -
DDKSIC DO100 laboratory Dissolved Oxygen Meter (polarographic type) dissolved oxygen concentration/dissolved oxygen saturation/℃
$ 570.00 -
![HANNA HI97746 Iron [LR] Portable Photometer](//img.nbchao.com/imgs/200/2024/03/29/1404350792406455.jpg)
HANNA HI97746 Iron [LR] Portable Photometer
$ 540.00 -
TONGAO TR 6900CP Benchtop STIP-scan detection of COD/Total phosphorus/turbidity/suspended solids (SS)
$ 2807.00
![HANNA HI97733 Ammonia Nitrogen [HR] Portable Photometer, Detection of Ammonia Nitrogen in Water](http://img.nbchao.com/imgs/200/2024/03/29/1428160307966234.jpg)
![HANNA HI97746 Iron [LR] Portable Photometer](http://img.nbchao.com/imgs/200/2024/03/29/1404350792406455.jpg)
HI98196 New appearance design, large-screen LCD display, backlight, on-screen operation step prompts, a variety of optional languages, while meeting 7 important indicators of water quality analysis, IP67 excellent waterproof design, easy and fast electrode replacement, for field field measurement. HI98196 meet the needs of 45,000 data continuous storage or manual storage. Customize the storage interval (1 second to 3 hours). Cooperate with HI920015 USB cable and data processing software to transfer data with PC. The GLP management function records the calibration information in detail. Easily press the HELP button to enter the help menu to get on-screen help information and an introduction to the functions of each button.
peculiarity
The new ergonomic design, large background light, chart display function, good cost performance
The main body is IP67 waterproof and anti-slip design, and the electrode is IP68 waterproof standard, which can meet the measurement of harsh environments such as pipelines or deep wells
Multi-parameter integrated electrode design, intelligent electrode holder built-in microprocessor and temperature sensor, can be installed pH (ORP) and EC electrodes at the same time
Electrode position is color-coded for easy installation and automatic identification
The important water quality indicators of 7 items are quickly measured at the same time, and the full-screen display is clear at a glance
Unique quick calibration function, automatic error diagnosis function, automatic recognition of measuring range, easy replacement of measurements
Powerful GLP management, large-capacity 45,000 data storage functions, USB data interface, professional data analysis and management software
Good anti-electromagnetic signal interference ensures measurement reliability, accuracy, and a wide range of applications
HANNA HI98196/10 Multiparameter DetectorSpecifications
| LIST | VALUE |
|---|---|
| PH range | 0.00~14.00 pH/±600.0 mV |
| PH Measurement Accuracy | ±0.02 pH/±0.5mV |
| PH calibrated mode | Up to three-point automatic calibrate recognition and one custom calibrate, built-in five standard calibrate points 4.01, 6.86, 7.01, 9.18, 10.01 pH |
| ORP Measurement range | ±2000.0mV |
| ORP resolution | 0.1 mV |
| Measurement Accuracy of ORP | ±1.0 mV |
| ORP calibrated mode | Single point custom calibrated (relative mV) |
| Measurement range of dissolved oxygen | 0.0~500.0%; 0.00~50.00 ppm |
| Resolution of dissolved oxygen | 0.1%；0.01 ppm |
| Measurement Accuracy of dissolved oxygen | 0.0-300%: reading +/- 1.5% or +/- 1.0%, whichever is the largest; 300.0-500%: reading +/- 3%; 0.00-30: reading +/- 1.5% or +/- 0.10ppm whichever is the largest; 30.00-50 |
| Dissolved oxygen calibrating mode | Single or double point calibrated Automatic calibration, zero or air automatic 100% calibrated |
| Measurement range of atmospheric pressure | 450.0~850.0 mm Hg；17.72~33.46 in Hg；600.0~1133.2 mbar；8.702~16.436 psi； 0.5921 to 1.1184atm；60.00~113.32 kPa |
| atmospheric pressure resolution | 0.1mm Hg;0.01 in Hg；0.1mbar；0.001 psi；0.0001 am；0.01kPa |
| Measurement Accuracy of atmospheric pressure | ±3 mm Hg @±15℃ |
| Atmospheric pressure calibrated mode | Single point user calibrated |
| Measurement range | -5.00~55.00℃；23.00~131.00℉；268.15 to 328.15K |
| temperature resolution | 0.01℃；0.01℉；0.01K |
| Measurement Accuracy | ±0.15℃;±0.27℉;±0.15K |
| Temperature calibrated mode | Single point user calibrated |
| Temperature temperature compensation | Automatic temperature compensation, -5.00~55.00 ℃, 23.00~131.00 ° F |
| Temperature Data storage | 45000 measurement Data storage, (continuous automatic storage or manual storage) |
| Temperature recording interval | Can be set from 1 second to 3 hours |
| Temperature Interface | USB Interface (HI9 2000-15 data management software recommended) |
| Operating Environment | 0~50℃(32~122 ℉)；RH 100% IP67 |
| Battery operated | 1.5V AA battery * 4, about 360 hours of continuous use |
| Weight/Size | 185x93x35.2 mm/400g |
HANNA HI98196/10 Multiparameter Detector Packing list
Host, built-in pH-DO multiparameter electrode, 10 meters long, fast comprehensive calibrating liquid (specification: 230mL), dissolved Oxygen electrode maintenance accessories set, fast calibrating measurement cup, data transmission line, Chinese and English user manual, carrying box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
