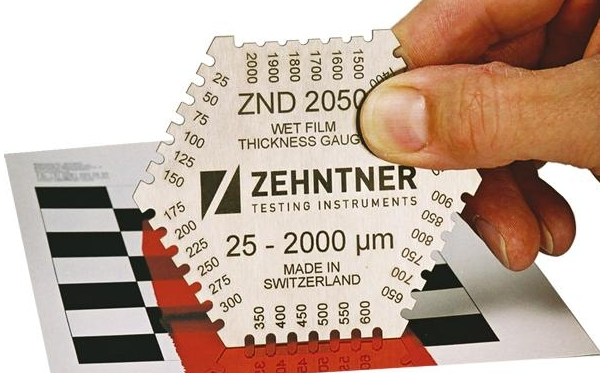

Zehntner ZND2050 Wet Film Comb Wet Film Thickness Gauge
Zehntner ZND2050 Wet Film Comb wet film thickness Measurement range 25~ 2000um, shape hexagonal type, material stainless steel, application standard DIN EN ISO 2808, ASTM D-4414.
Zehntner By Proceq
-
JINGKELIAN QUL WFT gauge 0~150μm
$ 122.00 -
TRUIT TR 5501/950 single-sided wet film 500~950μm
$ 99.00 -
PUSHEN YQH-100 Roller type WFT gauge, thickness measurement 10-90μm
$ 179.00 -
Germany Erichsen 234 R/VII wet-film thickness measuring wheel WFT wheel
$ 926.00 -
TRUIT TR 5502/1200 Double-sided wet-film gauge WFT gauge comb type 50~1200μm
$ 110.00
Product name: Wet film comb, wet film thickness meter
Model ZND2050, ZND2051, ZND2052, ZND2053, ZND2054
Brand: Swiss Zehntner
Introduction of Zehntner ZND2050-2054 wet film comb wet film thickness meter
ZND2050-2054 Wet Film Comb Wet Film Thickness Meter is used to measure the thickness of the corrugated film of paint that is still damp. It can check the coating quality of the product and reduce unnecessary cost and waste. Suitable for paint, enamel, glazing, glue, and other wet coating applications. Simple to use and easy to clean. Original imported from Switzerland (ZEHNTNER brand)
Swiss Zehntner ZND2050-2054 wet film comb wet Film Thickness Gauge meets the standards:
DIN EN ISO2808, ASTM D-4414
Swiss Zehntner ZND2050-2054 wet film comb wet film thickness meter product specifications
Model Measuring range Appearance Material
ZND2050 25â¦2000um hexagonal stainless steel
ZND2050.A 25â¦2000um hexagonal aluminum
ZND2051 5...150um hexagonal stainless steel
ZND2052 100...950um pentagonal stainless steel
ZND2053 2...10mm pentagonal stainless steel
ZND2054 accepts customization stainless steel
Zehntner By Proceq ZND2050 Wet Film Comb Wet Film Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Range | 25~2000um |
| shape | hexagon |
| material | stainless steel |
| Application standard | DIN EN ISO 2808、ASTM D-4414 |
Zehntner By Proceq ZND2050 Wet Film Comb Wet Film Thickness Gauge Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
