Introduction
Digital display precision electric agitator, reasonable in design, novel in structure, adopts DC motor, stepless speed regulation, cites professional power-increasing and stable speed circuit, has stable speed, large torque, low noise, intuitive digital display, easy and safe operation; Basic equipment required by universities, colleges, scientific research institutes, chemical industry and other units.
Models
| model | Total power |
| JJ-1A(25W) | 25W |
| JJ-1A(40W) | 40W |
| JJ-1A(60W) | 60W |
| JJ-1A(90W) | 90W |
| JJ-1A(100W) | 100W |
| JJ-1A(160W) | 160W |
| JJ-1A(200W) | 200W |
| JJ-1A(300W) | 300W |
| Other parameters | |
| Speed range | Start~3000rpm stepless speed regulation |
| Timer Range | 0～120min |
| power supply | 220V 50HZ |
Instructions
First, fasten the stirring rod on the motor shaft fixture, and adjust the speed control knob to the lowest speed position, place the solution to be stirred at the center of the stirring rod, turn on the power switch, and adjust the speed control knob to your desired stirring Speed, when timing operation is required, select desired time or normally open.
Precautions
1. Be sure to ground the wire when using it.
2. If you find that the stirring rod is not concentric and the stirring is unstable during work, please turn off the power and adjust the clamp to make the stirring rod concentric.
3.Medium-speed stirring can reduce vibration and prolong service life. The instrument should be kept dry and clean.

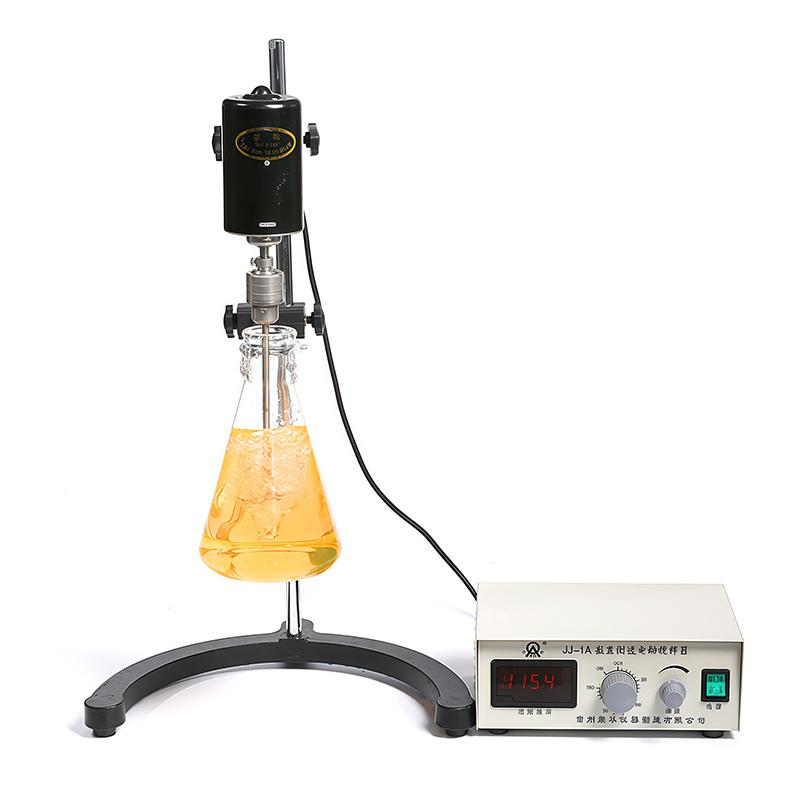

RONGHUA JJ-1A(40W) Precision Overhead StirrerSpecifications
| LIST | VALUE |
|---|---|
| Speed regulation | stepless speed regulation |
| Timer | 0~120min |
| Power | 220V 50HZ |
| Motor power | 40W |
| Speed range | 0~3000rpm |
RONGHUA JJ-1A(40W) Precision Overhead Stirrer Packing list
host X1, certificate X1, manual X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
