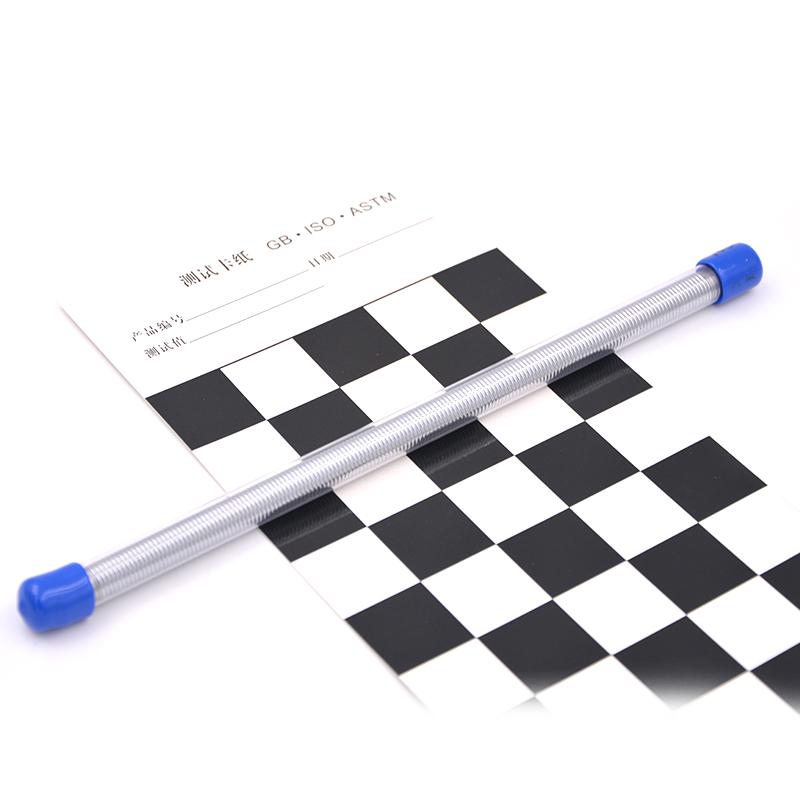

CCT CCT056-L0240 Extrusion coating rod 56μm/240mm
D10-CCT056-L0240 extrusion coating rod formed process, the Total length of 240mm, the application width 210mm, CCT056 for the prepative 56um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials.
CCT
D10-CCT056-L0240
-
RDS 55 #3/8 "Mayer Rods WFT 125.7μm Length 400mm
$ 162.00 -
Japan OSP OSP-230T L60 Applicator rod wire-wound drawdown Bar WFT 230μm Length 60mm
$ 116.00 -
CHINA Formed Coating-Rod Rod 60 micron thickness of wet film Easy to clean stainless steel scraper
$ 110.00 -
Japan OSP-100/250 hand-coated bar WFT 100μm length 250mm
$ 153.00 -
RK K101.10.9 coater special rod No. 9 WFT 120μm
$ 178.00
CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.
Benefits:High precision,No worries,Easy to clean
Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.
Product specifications: two different lengths are available: laboratory L400mm and L240mm
Serial models
| Model | Stick number | Wet film thickness | |
| 240L | 400L | （μm） | |
| D10-CCT004-L0240 | D10-CCT004-L0400 | CCT-04 | 04 |
| D10-CCT006-L0240 | D10-CCT006-L0400 | CCT-06 | 06 |
| D10-CCT008-L0240 | D10-CCT008-L0400 | CCT-08 | 08 |
| D10-CCT010-L0240 | D10-CCT010-L0400 | CCT-10 | 10 |
| D10-CCT012-L0240 | D10-CCT012-L0400 | CCT-12 | 12 |
| D10-CCT014-L0240 | D10-CCT014-L0400 | CCT-14 | 14 |
| D10-CCT016-L0240 | D10-CCT016-L0400 | CCT-16 | 16 |
| D10-CCT018-L0240 | D10-CCT018-L0400 | CCT-18 | 18 |
| D10-CCT020-L0240 | D10-CCT020-L0400 | CCT-20 | 20 |
| D10-CCT022-L0240 | D10-CCT022-L0400 | CCT-22 | 22 |
| D10-CCT024-L0240 | D10-CCT024-L0400 | CCT-24 | 24 |
| D10-CCT026-L0240 | D10-CCT026-L0400 | CCT-26 | 26 |
| D10-CCT028-L0240 | D10-CCT028-L0400 | CCT-28 | 28 |
| D10-CCT030-L0240 | D10-CCT030-L0400 | CCT-30 | 30 |
| D10-CCT032-L0240 | D10-CCT032-L0400 | CCT-32 | 32 |
| D10-CCT034-L0240 | D10-CCT034-L0400 | CCT-34 | 34 |
| D10-CCT036-L0240 | D10-CCT036-L0400 | CCT-36 | 36 |
| D10-CCT040-L0240 | D10-CCT040-L0400 | CCT-40 | 40 |
| D10-CCT044-L0240 | D10-CCT044-L0400 | CCT-44 | 44 |
| D10-CCT046-L0240 | D10-CCT046-L0400 | CCT-46 | 46 |
| D10-CCT048-L0240 | D10-CCT048-L0400 | CCT-48 | 48 |
| D10-CCT050-L0240 | D10-CCT050-L0400 | CCT-50 | 50 |
| D10-CCT052-L0240 | D10-CCT052-L0400 | CCT-52 | 52 |
| D10-CCT056-L0240 | D10-CCT056-L0400 | CCT-56 | 56 |
| D10-CCT060-L0240 | D10-CCT060-L0400 | CCT-60 | 60 |
| D10-CCT064-L0240 | D10-CCT064-L0400 | CCT-64 | 64 |
| D10-CCT068-L0240 | D10-CCT068-L0400 | CCT-68 | 68 |
| D10-CCT070-L0240 | D10-CCT070-L0400 | CCT-70 | 70 |
| D10-CCT072-L0240 | D10-CCT072-L0400 | CCT-72 | 72 |
| D10-CCT074-L0240 | D10-CCT074-L0400 | CCT-74 | 74 |
| D10-CCT076-L0240 | D10-CCT076-L0400 | CCT-76 | 76 |
| D10-CCT080-L0240 | D10-CCT080-L0400 | CCT-80 | 80 |
| D10-CCT084-L0240 | D10-CCT084-L0400 | CCT-84 | 84 |
| D10-CCT088-L0240 | D10-CCT088-L0400 | CCT-88 | 88 |
| D10-CCT094-L0240 | D10-CCT094-L0400 | CCT-94 | 94 |
| D10-CCT096-L0240 | D10-CCT096-L0400 | CCT-96 | 96 |
| D10-CCT098-L0240 | D10-CCT098-L0400 | CCT-98 | 98 |
| D10-CCT100-L0240 | D10-CCT100-L0400 | CCT-100 | 100 |
| D10-CCT110-L0240 | D10-CCT110-L0400 | CCT-110 | 110 |
| D10-CCT120-L0240 | D10-CCT120-L0400 | CCT-120 | 120 |
| D10-CCT130-L0240 | D10-CCT130-L0400 | CCT-130 | 130 |
| D10-CCT140-L0240 | D10-CCT140-L0400 | CCT-140 | 140 |
| D10-CCT150-L0240 | D10-CCT150-L0400 | CCT-150 | 150 |
| D10-CCT160-L0240 | D10-CCT160-L0400 | CCT-160 | 160 |
| D10-CCT170-L0240 | D10-CCT170-L0400 | CCT-170 | 170 |
| D10-CCT180-L0240 | D10-CCT180-L0400 | CCT-180 | 180 |
| D10-CCT190-L0240 | D10-CCT190-L0400 | CCT-190 | 190 |
Optional
|
|
|
CCT D10-CCT056-L0240 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 56μm |
| diameter | 10mm |
| Total length | 240mm |
| application width | 210mm |
| grip width | 15+15mm |
| material | 304 stainless steel |
CCT D10-CCT056-L0240 coating rod Packing list
Wire rod X1, Transparent Encasement hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
