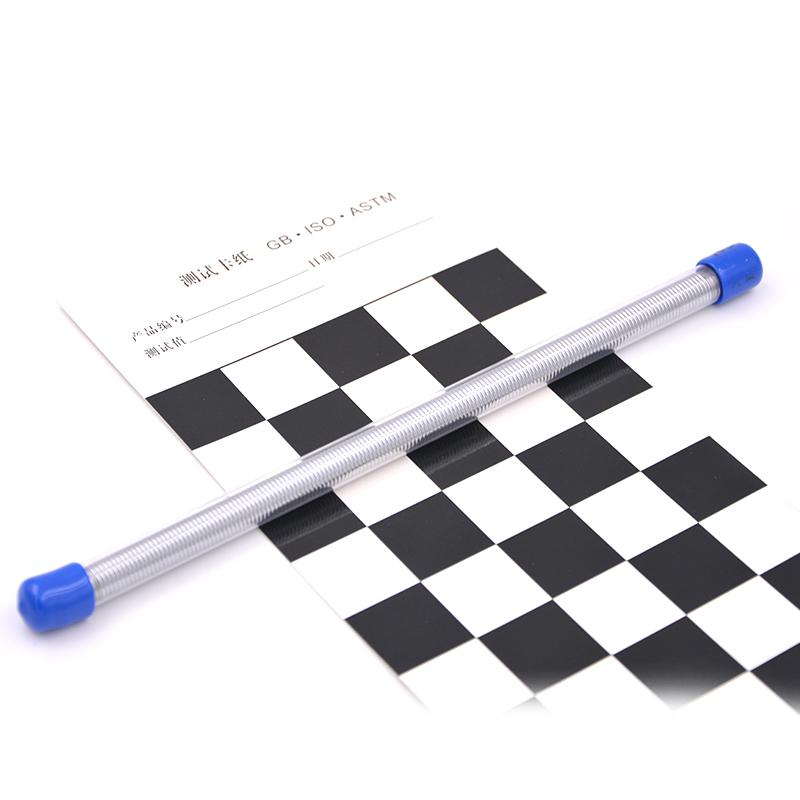

CCT CCT068-L0240 Wire rod Film Applicator 68μm/240mm
D10-CCT068-L0240 wire rod Film Applicator using a formed process, the Total length of 240mm, application width 210mm, CCT068 can be prepared 68um thickness film, in the paint, inks, printing/paper/Encasement, lithium, New materials and other fields.
CCT
D10-CCT068-L0240
-
Coating Proofing rod 40μm Printing Proofing rod Stainless steel Coloring Applicator rod
$ 95.00 -
CHINA formed Applicator rod ASP 400μm film thickness Stainless steel Coating Applicator Metering rod length 250mm
$ 117.00 -
Pushen XB-I 150μm wire rod, length 240mm
$ 97.00 -
RDS 19 #3/8 "Gravure Applicator rod WFT 43.4μm Length 400mm
$ 161.00 -
RK K202.10.7 7 wire rod K202 coater special WFT 60μm
$ 176.00
CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.
Benefits:High precision,No worries,Easy to clean
Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.
Product specifications: two different lengths are available: laboratory L400mm and L240mm
Serial models
| Model | Stick number | Wet film thickness | |
| 240L | 400L | （μm） | |
| D10-CCT004-L0240 | D10-CCT004-L0400 | CCT-04 | 04 |
| D10-CCT006-L0240 | D10-CCT006-L0400 | CCT-06 | 06 |
| D10-CCT008-L0240 | D10-CCT008-L0400 | CCT-08 | 08 |
| D10-CCT010-L0240 | D10-CCT010-L0400 | CCT-10 | 10 |
| D10-CCT012-L0240 | D10-CCT012-L0400 | CCT-12 | 12 |
| D10-CCT014-L0240 | D10-CCT014-L0400 | CCT-14 | 14 |
| D10-CCT016-L0240 | D10-CCT016-L0400 | CCT-16 | 16 |
| D10-CCT018-L0240 | D10-CCT018-L0400 | CCT-18 | 18 |
| D10-CCT020-L0240 | D10-CCT020-L0400 | CCT-20 | 20 |
| D10-CCT022-L0240 | D10-CCT022-L0400 | CCT-22 | 22 |
| D10-CCT024-L0240 | D10-CCT024-L0400 | CCT-24 | 24 |
| D10-CCT026-L0240 | D10-CCT026-L0400 | CCT-26 | 26 |
| D10-CCT028-L0240 | D10-CCT028-L0400 | CCT-28 | 28 |
| D10-CCT030-L0240 | D10-CCT030-L0400 | CCT-30 | 30 |
| D10-CCT032-L0240 | D10-CCT032-L0400 | CCT-32 | 32 |
| D10-CCT034-L0240 | D10-CCT034-L0400 | CCT-34 | 34 |
| D10-CCT036-L0240 | D10-CCT036-L0400 | CCT-36 | 36 |
| D10-CCT040-L0240 | D10-CCT040-L0400 | CCT-40 | 40 |
| D10-CCT044-L0240 | D10-CCT044-L0400 | CCT-44 | 44 |
| D10-CCT046-L0240 | D10-CCT046-L0400 | CCT-46 | 46 |
| D10-CCT048-L0240 | D10-CCT048-L0400 | CCT-48 | 48 |
| D10-CCT050-L0240 | D10-CCT050-L0400 | CCT-50 | 50 |
| D10-CCT052-L0240 | D10-CCT052-L0400 | CCT-52 | 52 |
| D10-CCT056-L0240 | D10-CCT056-L0400 | CCT-56 | 56 |
| D10-CCT060-L0240 | D10-CCT060-L0400 | CCT-60 | 60 |
| D10-CCT064-L0240 | D10-CCT064-L0400 | CCT-64 | 64 |
| D10-CCT068-L0240 | D10-CCT068-L0400 | CCT-68 | 68 |
| D10-CCT070-L0240 | D10-CCT070-L0400 | CCT-70 | 70 |
| D10-CCT072-L0240 | D10-CCT072-L0400 | CCT-72 | 72 |
| D10-CCT074-L0240 | D10-CCT074-L0400 | CCT-74 | 74 |
| D10-CCT076-L0240 | D10-CCT076-L0400 | CCT-76 | 76 |
| D10-CCT080-L0240 | D10-CCT080-L0400 | CCT-80 | 80 |
| D10-CCT084-L0240 | D10-CCT084-L0400 | CCT-84 | 84 |
| D10-CCT088-L0240 | D10-CCT088-L0400 | CCT-88 | 88 |
| D10-CCT094-L0240 | D10-CCT094-L0400 | CCT-94 | 94 |
| D10-CCT096-L0240 | D10-CCT096-L0400 | CCT-96 | 96 |
| D10-CCT098-L0240 | D10-CCT098-L0400 | CCT-98 | 98 |
| D10-CCT100-L0240 | D10-CCT100-L0400 | CCT-100 | 100 |
| D10-CCT110-L0240 | D10-CCT110-L0400 | CCT-110 | 110 |
| D10-CCT120-L0240 | D10-CCT120-L0400 | CCT-120 | 120 |
| D10-CCT130-L0240 | D10-CCT130-L0400 | CCT-130 | 130 |
| D10-CCT140-L0240 | D10-CCT140-L0400 | CCT-140 | 140 |
| D10-CCT150-L0240 | D10-CCT150-L0400 | CCT-150 | 150 |
| D10-CCT160-L0240 | D10-CCT160-L0400 | CCT-160 | 160 |
| D10-CCT170-L0240 | D10-CCT170-L0400 | CCT-170 | 170 |
| D10-CCT180-L0240 | D10-CCT180-L0400 | CCT-180 | 180 |
| D10-CCT190-L0240 | D10-CCT190-L0400 | CCT-190 | 190 |
Optional
|
|
|
CCT D10-CCT068-L0240 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 68μm |
| diameter | 10mm |
| Total length | 240mm |
| application width | 210mm |
| grip width | 15+15mm |
| material | 304 stainless steel |
CCT D10-CCT068-L0240 coating rod Packing list
Wire rod X1, Transparent Encasement hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
