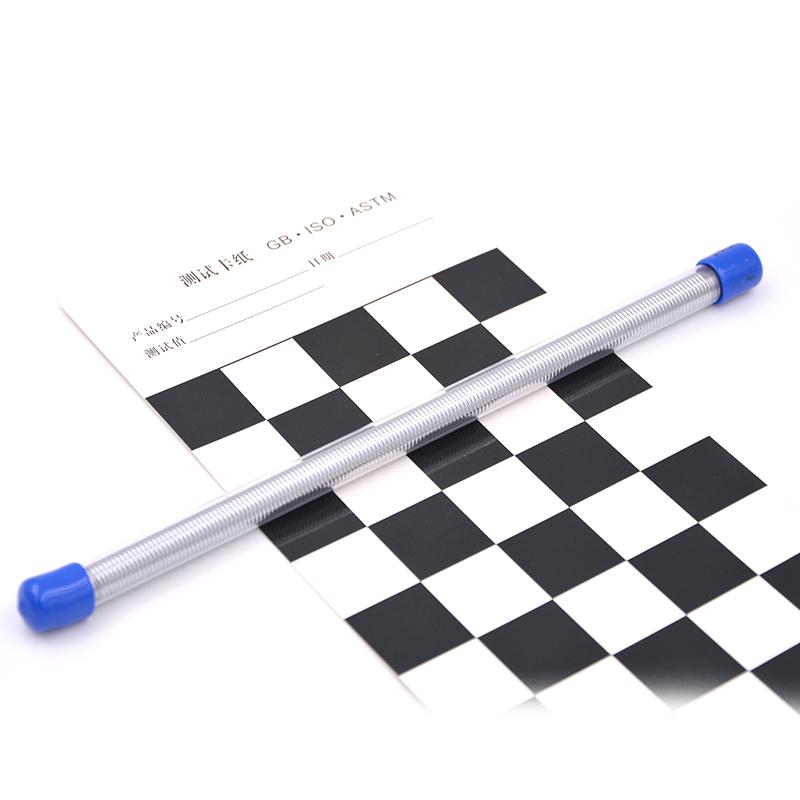

CCT CCT072-L0240 coating rod 72μm/240mm
D10-CCT072-L0240 laboratory coating rod formed process, 240mm Total length, application width 210mm, CCT072 for the prepative 72um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials.
CCT
D10-CCT072-L0240
-
RK K303.10.8 coater rod K303 coater special film thickness 100μm
$ 192.00 -
RDS 20 #1/4 "paints rod film thickness 45.7μm rod diameter 6.35mm
$ 155.00 -
RDS 250G #3/8 "High viscosity Spreader, super thick film 571.5μm
$ 172.00 -
Japan OSP-22/60 Applicator rod WFT 22μm length 60mm
$ 115.00 -
RDS 65 #3/8 "Film Applicator 148.6μm formed Moulding device
$ 161.00
CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.
Benefits:High precision,No worries,Easy to clean
Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.
Product specifications: two different lengths are available: laboratory L400mm and L240mm
Serial models
| Model | Stick number | Wet film thickness | |
| 240L | 400L | （μm） | |
| D10-CCT004-L0240 | D10-CCT004-L0400 | CCT-04 | 04 |
| D10-CCT006-L0240 | D10-CCT006-L0400 | CCT-06 | 06 |
| D10-CCT008-L0240 | D10-CCT008-L0400 | CCT-08 | 08 |
| D10-CCT010-L0240 | D10-CCT010-L0400 | CCT-10 | 10 |
| D10-CCT012-L0240 | D10-CCT012-L0400 | CCT-12 | 12 |
| D10-CCT014-L0240 | D10-CCT014-L0400 | CCT-14 | 14 |
| D10-CCT016-L0240 | D10-CCT016-L0400 | CCT-16 | 16 |
| D10-CCT018-L0240 | D10-CCT018-L0400 | CCT-18 | 18 |
| D10-CCT020-L0240 | D10-CCT020-L0400 | CCT-20 | 20 |
| D10-CCT022-L0240 | D10-CCT022-L0400 | CCT-22 | 22 |
| D10-CCT024-L0240 | D10-CCT024-L0400 | CCT-24 | 24 |
| D10-CCT026-L0240 | D10-CCT026-L0400 | CCT-26 | 26 |
| D10-CCT028-L0240 | D10-CCT028-L0400 | CCT-28 | 28 |
| D10-CCT030-L0240 | D10-CCT030-L0400 | CCT-30 | 30 |
| D10-CCT032-L0240 | D10-CCT032-L0400 | CCT-32 | 32 |
| D10-CCT034-L0240 | D10-CCT034-L0400 | CCT-34 | 34 |
| D10-CCT036-L0240 | D10-CCT036-L0400 | CCT-36 | 36 |
| D10-CCT040-L0240 | D10-CCT040-L0400 | CCT-40 | 40 |
| D10-CCT044-L0240 | D10-CCT044-L0400 | CCT-44 | 44 |
| D10-CCT046-L0240 | D10-CCT046-L0400 | CCT-46 | 46 |
| D10-CCT048-L0240 | D10-CCT048-L0400 | CCT-48 | 48 |
| D10-CCT050-L0240 | D10-CCT050-L0400 | CCT-50 | 50 |
| D10-CCT052-L0240 | D10-CCT052-L0400 | CCT-52 | 52 |
| D10-CCT056-L0240 | D10-CCT056-L0400 | CCT-56 | 56 |
| D10-CCT060-L0240 | D10-CCT060-L0400 | CCT-60 | 60 |
| D10-CCT064-L0240 | D10-CCT064-L0400 | CCT-64 | 64 |
| D10-CCT068-L0240 | D10-CCT068-L0400 | CCT-68 | 68 |
| D10-CCT070-L0240 | D10-CCT070-L0400 | CCT-70 | 70 |
| D10-CCT072-L0240 | D10-CCT072-L0400 | CCT-72 | 72 |
| D10-CCT074-L0240 | D10-CCT074-L0400 | CCT-74 | 74 |
| D10-CCT076-L0240 | D10-CCT076-L0400 | CCT-76 | 76 |
| D10-CCT080-L0240 | D10-CCT080-L0400 | CCT-80 | 80 |
| D10-CCT084-L0240 | D10-CCT084-L0400 | CCT-84 | 84 |
| D10-CCT088-L0240 | D10-CCT088-L0400 | CCT-88 | 88 |
| D10-CCT094-L0240 | D10-CCT094-L0400 | CCT-94 | 94 |
| D10-CCT096-L0240 | D10-CCT096-L0400 | CCT-96 | 96 |
| D10-CCT098-L0240 | D10-CCT098-L0400 | CCT-98 | 98 |
| D10-CCT100-L0240 | D10-CCT100-L0400 | CCT-100 | 100 |
| D10-CCT110-L0240 | D10-CCT110-L0400 | CCT-110 | 110 |
| D10-CCT120-L0240 | D10-CCT120-L0400 | CCT-120 | 120 |
| D10-CCT130-L0240 | D10-CCT130-L0400 | CCT-130 | 130 |
| D10-CCT140-L0240 | D10-CCT140-L0400 | CCT-140 | 140 |
| D10-CCT150-L0240 | D10-CCT150-L0400 | CCT-150 | 150 |
| D10-CCT160-L0240 | D10-CCT160-L0400 | CCT-160 | 160 |
| D10-CCT170-L0240 | D10-CCT170-L0400 | CCT-170 | 170 |
| D10-CCT180-L0240 | D10-CCT180-L0400 | CCT-180 | 180 |
| D10-CCT190-L0240 | D10-CCT190-L0400 | CCT-190 | 190 |
Optional
|
|
|
CCT D10-CCT072-L0240 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 72μm |
| diameter | 10mm |
| Total length | 240mm |
| application width | 210mm |
| grip width | 15+15mm |
| material | 304 stainless steel |
CCT D10-CCT072-L0240 coating rod Packing list
Wire rod X1, Transparent Encasement hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
