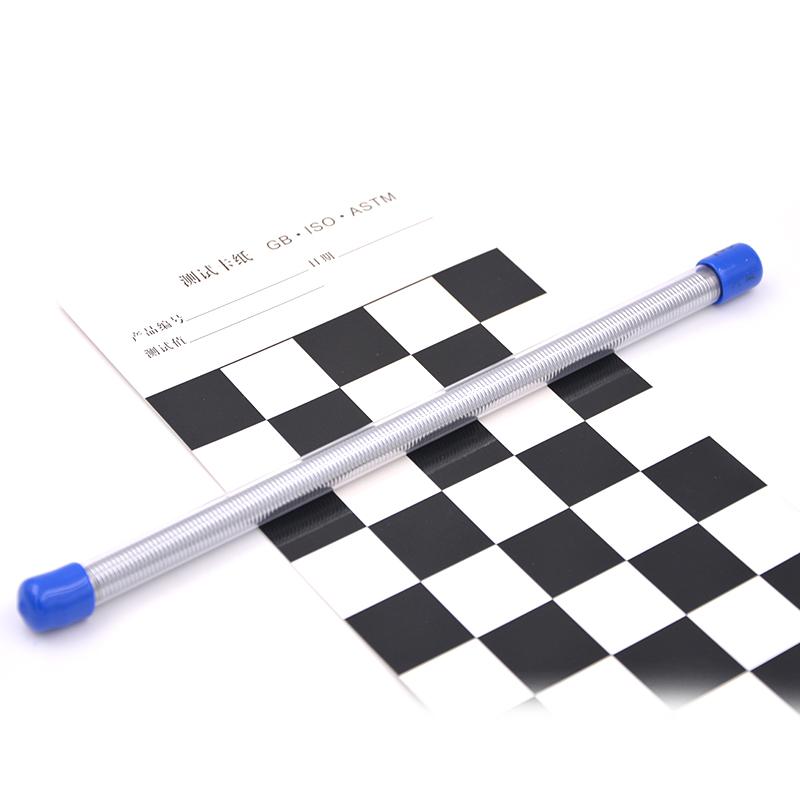

CCT CCT120-L0240 paint scraper 120μm/240mm

D10-CCT120-L0240 formed the Total length of the paint scraper 240mm, the application width 210mm, CCT120 for the prepative 4um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials.

Brand

SKU: NB020526

CCT

Model

D10-CCT120-L0240

Service

CCT shop

Information

Datasheet Video Catalog

What else did others buy

RDS #95 Mayer Rods WFT 217.2μm Length 400mm

$ 155.00
CHINA Formed Coating-Rod Rod 60 micron thickness of wet film Easy to clean stainless steel scraper

$ 110.00
RDS 38 #3/8 "Mayer Rods WFT 86.9μm Length 400mm

$ 161.00
Japan OSP OSP-250T L400 laboratory Coating Applicator film coating rod 250μm

$ 172.00
Japan OSP-1.5/400 A-Bar WFT 1.5μm length 400mm

$ 172.00

Genuinegoods

CCT D10-CCT120-L0240 coating rodOverview
Specifications
Comments
FAQs

D10-CCT120-L0240

coating rod

CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.

Benefits:High precision,No worries,Easy to clean

Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.

Product specifications: two different lengths are available: laboratory L400mm and L240mm

Serial models

Model		Stick number	Wet film thickness
240L	400L	Stick number	（μm）
D10-CCT004-L0240	D10-CCT004-L0400	CCT-04	04
D10-CCT006-L0240	D10-CCT006-L0400	CCT-06	06
D10-CCT008-L0240	D10-CCT008-L0400	CCT-08	08
D10-CCT010-L0240	D10-CCT010-L0400	CCT-10	10
D10-CCT012-L0240	D10-CCT012-L0400	CCT-12	12
D10-CCT014-L0240	D10-CCT014-L0400	CCT-14	14
D10-CCT016-L0240	D10-CCT016-L0400	CCT-16	16
D10-CCT018-L0240	D10-CCT018-L0400	CCT-18	18
D10-CCT020-L0240	D10-CCT020-L0400	CCT-20	20
D10-CCT022-L0240	D10-CCT022-L0400	CCT-22	22
D10-CCT024-L0240	D10-CCT024-L0400	CCT-24	24
D10-CCT026-L0240	D10-CCT026-L0400	CCT-26	26
D10-CCT028-L0240	D10-CCT028-L0400	CCT-28	28
D10-CCT030-L0240	D10-CCT030-L0400	CCT-30	30
D10-CCT032-L0240	D10-CCT032-L0400	CCT-32	32
D10-CCT034-L0240	D10-CCT034-L0400	CCT-34	34
D10-CCT036-L0240	D10-CCT036-L0400	CCT-36	36
D10-CCT040-L0240	D10-CCT040-L0400	CCT-40	40
D10-CCT044-L0240	D10-CCT044-L0400	CCT-44	44
D10-CCT046-L0240	D10-CCT046-L0400	CCT-46	46
D10-CCT048-L0240	D10-CCT048-L0400	CCT-48	48
D10-CCT050-L0240	D10-CCT050-L0400	CCT-50	50
D10-CCT052-L0240	D10-CCT052-L0400	CCT-52	52
D10-CCT056-L0240	D10-CCT056-L0400	CCT-56	56
D10-CCT060-L0240	D10-CCT060-L0400	CCT-60	60
D10-CCT064-L0240	D10-CCT064-L0400	CCT-64	64
D10-CCT068-L0240	D10-CCT068-L0400	CCT-68	68
D10-CCT070-L0240	D10-CCT070-L0400	CCT-70	70
D10-CCT072-L0240	D10-CCT072-L0400	CCT-72	72
D10-CCT074-L0240	D10-CCT074-L0400	CCT-74	74
D10-CCT076-L0240	D10-CCT076-L0400	CCT-76	76
D10-CCT080-L0240	D10-CCT080-L0400	CCT-80	80
D10-CCT084-L0240	D10-CCT084-L0400	CCT-84	84
D10-CCT088-L0240	D10-CCT088-L0400	CCT-88	88
D10-CCT094-L0240	D10-CCT094-L0400	CCT-94	94
D10-CCT096-L0240	D10-CCT096-L0400	CCT-96	96
D10-CCT098-L0240	D10-CCT098-L0400	CCT-98	98
D10-CCT100-L0240	D10-CCT100-L0400	CCT-100	100
D10-CCT110-L0240	D10-CCT110-L0400	CCT-110	110
D10-CCT120-L0240	D10-CCT120-L0400	CCT-120	120
D10-CCT130-L0240	D10-CCT130-L0400	CCT-130	130
D10-CCT140-L0240	D10-CCT140-L0400	CCT-140	140
D10-CCT150-L0240	D10-CCT150-L0400	CCT-150	150
D10-CCT160-L0240	D10-CCT160-L0400	CCT-160	160
D10-CCT170-L0240	D10-CCT170-L0400	CCT-170	170
D10-CCT180-L0240	D10-CCT180-L0400	CCT-180	180
D10-CCT190-L0240	D10-CCT190-L0400	CCT-190	190

Optional

CCT D10-CCT120-L0240 coating rodSpecifications

LIST	VALUE
Production process	formed
WFT	120μm
diameter	10mm
Total length	240mm
application width	210mm
grip width	15+15mm
material	304 stainless steel

CCT D10-CCT120-L0240 coating rod Packing list

Wire rod X1, Transparent Encasement hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
