CCT CCT036-L0400 coating bar 36μm/400mm

D10-CCT036-L0400 coating bar is a formed coating bar, the Total length of the rod is 400mm, the application width 300mm, CCT036 for the prepative 36um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials.

Brand

SKU: NB020551

CCT

Model

D10-CCT036-L0400

Service

CCT shop

Information

Datasheet Video Catalog

What else did others buy

Genuinegoods

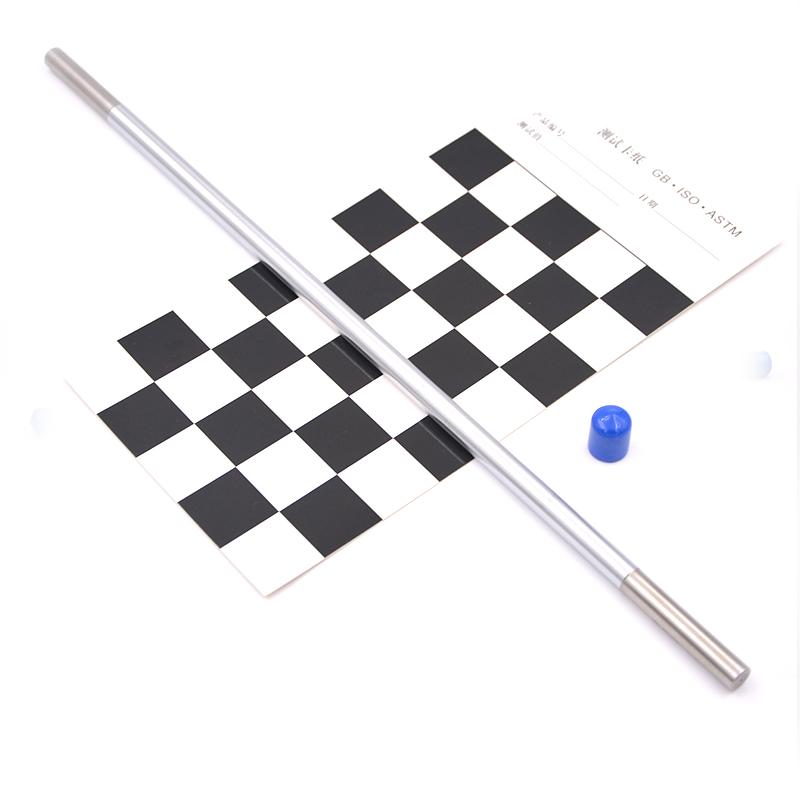

CCT D10-CCT036-L0400 coating rodOverview
Specifications
Comments
FAQs

D10-CCT036-L0400

coating rod

CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.

Benefits:High precision,No worries,Easy to clean

Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.

Product specifications: two different lengths are available: laboratory L400mm and L240mm

Serial models

Model		Stick number	Wet film thickness
240L	400L	Stick number	（μm）
D10-CCT004-L0240	D10-CCT004-L0400	CCT-04	04
D10-CCT006-L0240	D10-CCT006-L0400	CCT-06	06
D10-CCT008-L0240	D10-CCT008-L0400	CCT-08	08
D10-CCT010-L0240	D10-CCT010-L0400	CCT-10	10
D10-CCT012-L0240	D10-CCT012-L0400	CCT-12	12
D10-CCT014-L0240	D10-CCT014-L0400	CCT-14	14
D10-CCT016-L0240	D10-CCT016-L0400	CCT-16	16
D10-CCT018-L0240	D10-CCT018-L0400	CCT-18	18
D10-CCT020-L0240	D10-CCT020-L0400	CCT-20	20
D10-CCT022-L0240	D10-CCT022-L0400	CCT-22	22
D10-CCT024-L0240	D10-CCT024-L0400	CCT-24	24
D10-CCT026-L0240	D10-CCT026-L0400	CCT-26	26
D10-CCT028-L0240	D10-CCT028-L0400	CCT-28	28
D10-CCT030-L0240	D10-CCT030-L0400	CCT-30	30
D10-CCT032-L0240	D10-CCT032-L0400	CCT-32	32
D10-CCT034-L0240	D10-CCT034-L0400	CCT-34	34
D10-CCT036-L0240	D10-CCT036-L0400	CCT-36	36
D10-CCT040-L0240	D10-CCT040-L0400	CCT-40	40
D10-CCT044-L0240	D10-CCT044-L0400	CCT-44	44
D10-CCT046-L0240	D10-CCT046-L0400	CCT-46	46
D10-CCT048-L0240	D10-CCT048-L0400	CCT-48	48
D10-CCT050-L0240	D10-CCT050-L0400	CCT-50	50
D10-CCT052-L0240	D10-CCT052-L0400	CCT-52	52
D10-CCT056-L0240	D10-CCT056-L0400	CCT-56	56
D10-CCT060-L0240	D10-CCT060-L0400	CCT-60	60
D10-CCT064-L0240	D10-CCT064-L0400	CCT-64	64
D10-CCT068-L0240	D10-CCT068-L0400	CCT-68	68
D10-CCT070-L0240	D10-CCT070-L0400	CCT-70	70
D10-CCT072-L0240	D10-CCT072-L0400	CCT-72	72
D10-CCT074-L0240	D10-CCT074-L0400	CCT-74	74
D10-CCT076-L0240	D10-CCT076-L0400	CCT-76	76
D10-CCT080-L0240	D10-CCT080-L0400	CCT-80	80
D10-CCT084-L0240	D10-CCT084-L0400	CCT-84	84
D10-CCT088-L0240	D10-CCT088-L0400	CCT-88	88
D10-CCT094-L0240	D10-CCT094-L0400	CCT-94	94
D10-CCT096-L0240	D10-CCT096-L0400	CCT-96	96
D10-CCT098-L0240	D10-CCT098-L0400	CCT-98	98
D10-CCT100-L0240	D10-CCT100-L0400	CCT-100	100
D10-CCT110-L0240	D10-CCT110-L0400	CCT-110	110
D10-CCT120-L0240	D10-CCT120-L0400	CCT-120	120
D10-CCT130-L0240	D10-CCT130-L0400	CCT-130	130
D10-CCT140-L0240	D10-CCT140-L0400	CCT-140	140
D10-CCT150-L0240	D10-CCT150-L0400	CCT-150	150
D10-CCT160-L0240	D10-CCT160-L0400	CCT-160	160
D10-CCT170-L0240	D10-CCT170-L0400	CCT-170	170
D10-CCT180-L0240	D10-CCT180-L0400	CCT-180	180
D10-CCT190-L0240	D10-CCT190-L0400	CCT-190	190

Optional

CCT D10-CCT036-L0400 coating rodSpecifications

LIST	VALUE
Production process	formed
WFT	36μm
diameter	10mm
Total length	400mm
application width	300mm
grip width	50mm+50mm
material	304 stainless steel

CCT D10-CCT036-L0400 coating rod Packing list

Wire rod X1, Transparent Encasement hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
