CCT CCT180-L0400 Scraping Mayer Rods 180μm/400mm
D10-CCT180-L0400 Mayer Rods using formed process, 400mm Total length, application width 300mm, CCT180 for the preparation of 180um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials.
CCT
D10-CCT180-L0400
-
UK RK KHC.02.S Long coating rod Drawdown Plate set, choose 8 models from 0 to 9 wire rods
$ 895.00 -
Japan OSP-100/400 hand coated bar WFT 100μm length 400mm
$ 172.00 -
UK RK KHC.10.2 + KHC.20 Applicator rod Drawdown Plate set, red handle
$ 249.00 -
Gravure scraping rod No. 100, developing color scraping rod 100μm film coating bar
$ 95.00 -
RDS 17 #1/4 "wire-wound Applicator rod film thickness 25.1μm
$ 155.00
CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.
Benefits:High precision,No worries,Easy to clean
Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.
Product specifications: two different lengths are available: laboratory L400mm and L240mm
Serial models
| Model | Stick number | Wet film thickness | |
| 240L | 400L | （μm） | |
| D10-CCT004-L0240 | D10-CCT004-L0400 | CCT-04 | 04 |
| D10-CCT006-L0240 | D10-CCT006-L0400 | CCT-06 | 06 |
| D10-CCT008-L0240 | D10-CCT008-L0400 | CCT-08 | 08 |
| D10-CCT010-L0240 | D10-CCT010-L0400 | CCT-10 | 10 |
| D10-CCT012-L0240 | D10-CCT012-L0400 | CCT-12 | 12 |
| D10-CCT014-L0240 | D10-CCT014-L0400 | CCT-14 | 14 |
| D10-CCT016-L0240 | D10-CCT016-L0400 | CCT-16 | 16 |
| D10-CCT018-L0240 | D10-CCT018-L0400 | CCT-18 | 18 |
| D10-CCT020-L0240 | D10-CCT020-L0400 | CCT-20 | 20 |
| D10-CCT022-L0240 | D10-CCT022-L0400 | CCT-22 | 22 |
| D10-CCT024-L0240 | D10-CCT024-L0400 | CCT-24 | 24 |
| D10-CCT026-L0240 | D10-CCT026-L0400 | CCT-26 | 26 |
| D10-CCT028-L0240 | D10-CCT028-L0400 | CCT-28 | 28 |
| D10-CCT030-L0240 | D10-CCT030-L0400 | CCT-30 | 30 |
| D10-CCT032-L0240 | D10-CCT032-L0400 | CCT-32 | 32 |
| D10-CCT034-L0240 | D10-CCT034-L0400 | CCT-34 | 34 |
| D10-CCT036-L0240 | D10-CCT036-L0400 | CCT-36 | 36 |
| D10-CCT040-L0240 | D10-CCT040-L0400 | CCT-40 | 40 |
| D10-CCT044-L0240 | D10-CCT044-L0400 | CCT-44 | 44 |
| D10-CCT046-L0240 | D10-CCT046-L0400 | CCT-46 | 46 |
| D10-CCT048-L0240 | D10-CCT048-L0400 | CCT-48 | 48 |
| D10-CCT050-L0240 | D10-CCT050-L0400 | CCT-50 | 50 |
| D10-CCT052-L0240 | D10-CCT052-L0400 | CCT-52 | 52 |
| D10-CCT056-L0240 | D10-CCT056-L0400 | CCT-56 | 56 |
| D10-CCT060-L0240 | D10-CCT060-L0400 | CCT-60 | 60 |
| D10-CCT064-L0240 | D10-CCT064-L0400 | CCT-64 | 64 |
| D10-CCT068-L0240 | D10-CCT068-L0400 | CCT-68 | 68 |
| D10-CCT070-L0240 | D10-CCT070-L0400 | CCT-70 | 70 |
| D10-CCT072-L0240 | D10-CCT072-L0400 | CCT-72 | 72 |
| D10-CCT074-L0240 | D10-CCT074-L0400 | CCT-74 | 74 |
| D10-CCT076-L0240 | D10-CCT076-L0400 | CCT-76 | 76 |
| D10-CCT080-L0240 | D10-CCT080-L0400 | CCT-80 | 80 |
| D10-CCT084-L0240 | D10-CCT084-L0400 | CCT-84 | 84 |
| D10-CCT088-L0240 | D10-CCT088-L0400 | CCT-88 | 88 |
| D10-CCT094-L0240 | D10-CCT094-L0400 | CCT-94 | 94 |
| D10-CCT096-L0240 | D10-CCT096-L0400 | CCT-96 | 96 |
| D10-CCT098-L0240 | D10-CCT098-L0400 | CCT-98 | 98 |
| D10-CCT100-L0240 | D10-CCT100-L0400 | CCT-100 | 100 |
| D10-CCT110-L0240 | D10-CCT110-L0400 | CCT-110 | 110 |
| D10-CCT120-L0240 | D10-CCT120-L0400 | CCT-120 | 120 |
| D10-CCT130-L0240 | D10-CCT130-L0400 | CCT-130 | 130 |
| D10-CCT140-L0240 | D10-CCT140-L0400 | CCT-140 | 140 |
| D10-CCT150-L0240 | D10-CCT150-L0400 | CCT-150 | 150 |
| D10-CCT160-L0240 | D10-CCT160-L0400 | CCT-160 | 160 |
| D10-CCT170-L0240 | D10-CCT170-L0400 | CCT-170 | 170 |
| D10-CCT180-L0240 | D10-CCT180-L0400 | CCT-180 | 180 |
| D10-CCT190-L0240 | D10-CCT190-L0400 | CCT-190 | 190 |
Optional
|
|
|

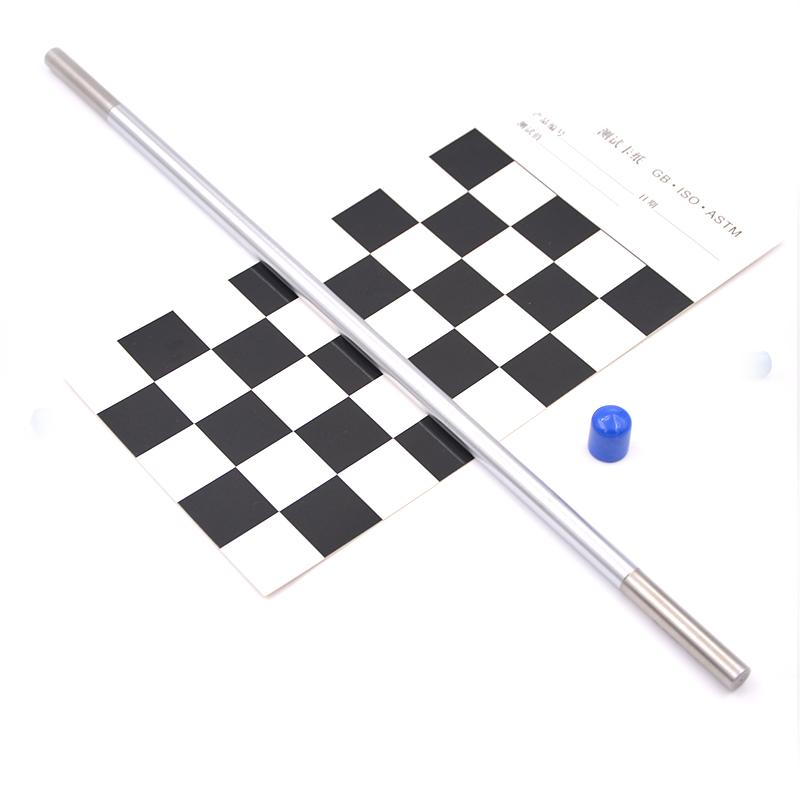

CCT D10-CCT180-L0400 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 180μm |
| diameter | 10mm |
| Total length | 400mm |
| application width | 300mm |
| grip width | 50mm+50mm |
| material | 304 stainless steel |
CCT D10-CCT180-L0400 coating rod Packing list
Wire rod X1, Transparent Encasement hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
