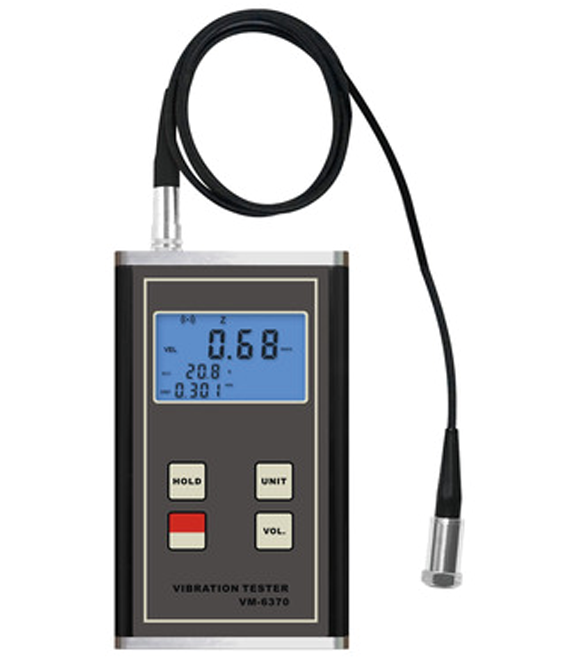

LANDTEK VM-6370 Vibration Meter (Enhanced)
LANDTEK VM-6370 Vibration Meter is an enhanced portable vibratIon Meter, measurement Acceleration Frequency 10Hz~ 10kHz, VM-6370 Vibration Meter can display Acceleration, Speed, Displacement three parameters at the same time, in line with ISO2954 national standard.
LANDTEK
VM-6370
-
SMART SENSOR AS63B split VibratIon Meter Acceleration 0.1~ 199.9m/s2
$ 231.00 -
LANDTEK VM6360 Vibration Meter Frequency up to 10Hz~ 10KHz
$ 428.00 -
DUBAN DB22-VM260A08 Vibrator, displacement D 0.001~ 8.0mm
$ 515.00 -
SMART SENSOR AR63B VibratIon Meter Acceleration 0.1~ 199.9m/s ²
$ 297.00 -
DUBAN DB22-VM260DET Vibrator, Piezoelectric Vibration Sensors Displacement 0.001~ 4.0mm
$ 596.00
Applications
Applied to periodic motion measurement to detect imbalance and deviation of moving machinery. It is specially designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
Features
* It can display three parameters of acceleration, velocity and displacement at the same time.
* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation of moving machinery.
* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
* Use high-performance accelerometers to achieve accurate and reproducible measurements.
* Wide frequency range, in the acceleration mode, the frequency can reach 10Hz~10KHz.
* With AC signal output, it is convenient for auscultation and recording.
* Optional earphones can be used as a stethoscope.
* Use "USB data line output" and "RS-232 data line output" to communicate with PC.
* Provide Bluetooth data output option.

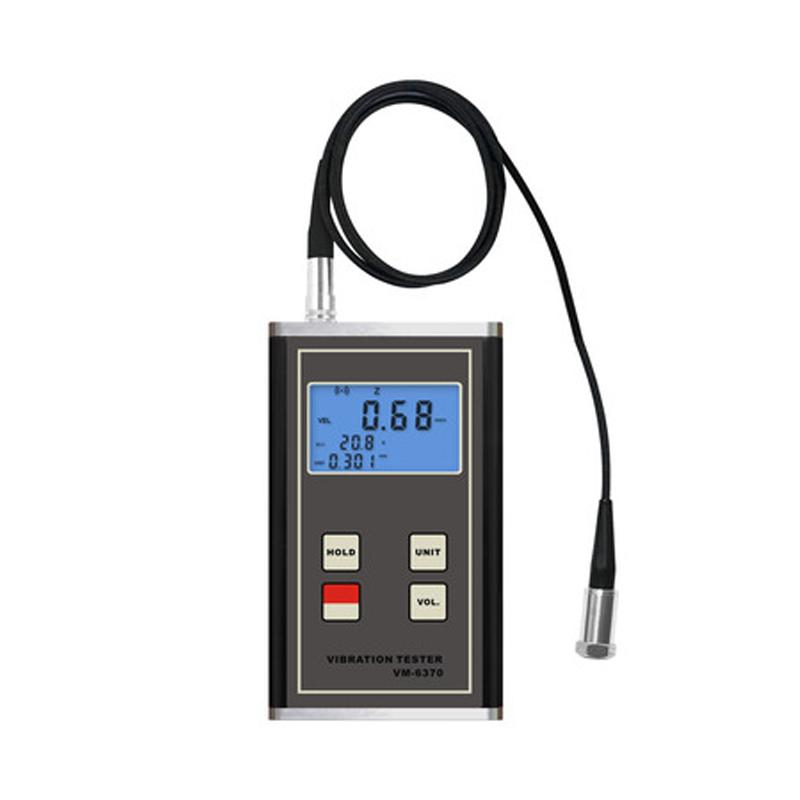

real shot
LANDTEK VM-6370 VibratIon Meter (enhanced)Specifications
| LIST | VALUE |
|---|---|
| Acceleration Measurement range | Piezoelectric Vibration Sensors |
| Speed Measurement range | 0.01~ 199.9mm/s true RMS |
| Displacement Measurement range | 0.001~ 1.999mm peak-peak |
| Acceleration frequency range | 10Hz~10kHz |
| Speed frequency range | 10Hz~1kHz |
| Displacement frequency range | 10Hz~1KHz |
| Accuracy | ± (5% n + 2) words |
| Operating Temperature | 0~50°C |
| Operating Humidity | <90%RH |
| Power | 4 AA batteries |
| Dimensions | 160*68*32mm |
| Weight | 181G (without battery) |
LANDTEK VM-6370 VibratIon Meter (enhanced) Packing list
Host X1, magnetic suction seat X1, Piezoelectric Sensors X1, probe (cone) X1, probe (ball) X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
