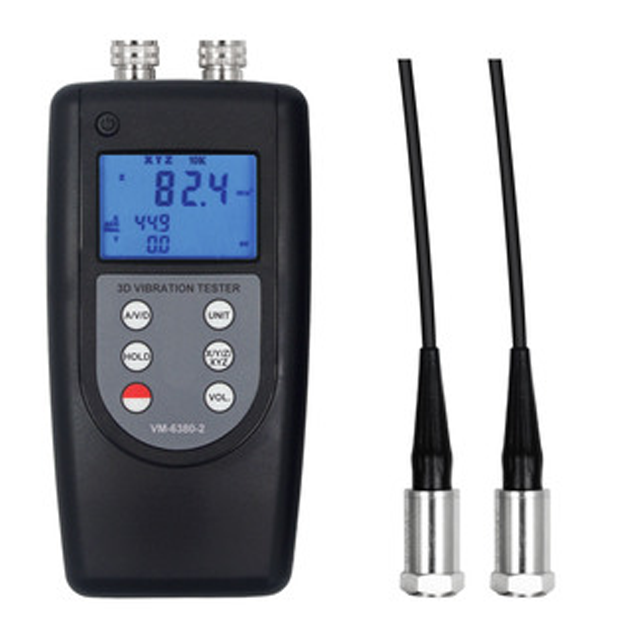

LANDTEK VM-6380-2 Vibration Meter (Dual Channel)

The LANDTEK vibratIon Meter VM-6380-2 adds a channel on the basis of the VM-6380 model. It is a dual-channel vibratIon Meter. The VM-6380-2 can display unified parameters on two measurement points at the same time.

Brand

SKU: NB020703

LANDTEK

Model

VM-6380-2

Price

$ 553.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

LANDTEK shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Vibrator AMITTARI AV-160B displays three parameters of "Displacement", "Speed" and "Acceleration"

$ 459.00
LANDTEK VM6360 Vibration Meter, Probe Line 6 Meters Long Frequency up to 10KHz

$ 444.00
3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters

$ 658.00
DUBAN DB22-VM260B Vibrator, three-parameter display, displacement 0.001~ 4.0mm

$ 475.00
DUBAN DB22-VM260A16 Vibrator, displacement D 0.001~ 16.0mm

$ 677.00

Genuinegoods

LANDTEK VM-6380-2 VibratIon Meter (dual channel)Overview
Specifications
Comments
FAQs

VM-6380-2

VibratIon Meter (dual channel)

Applications

Applied to periodic motion measurement to detect imbalance and deviation of moving machinery. It is specially designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.

Features

* Can simultaneously display the same parameter on two measurement points, or three parameters (acceleration, velocity, displacement) on any one measurement point.

* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation of moving machinery.

* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.

* Use high-performance accelerometers to achieve accurate and reproducible measurements.

* Wide frequency range, in the acceleration mode, the frequency can reach 10Hz~10KHz.

* With AC signal output, it is convenient for auscultation and recording.

* Optional earphones can be used as a stethoscope.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC.

* Provide Bluetooth data output option.

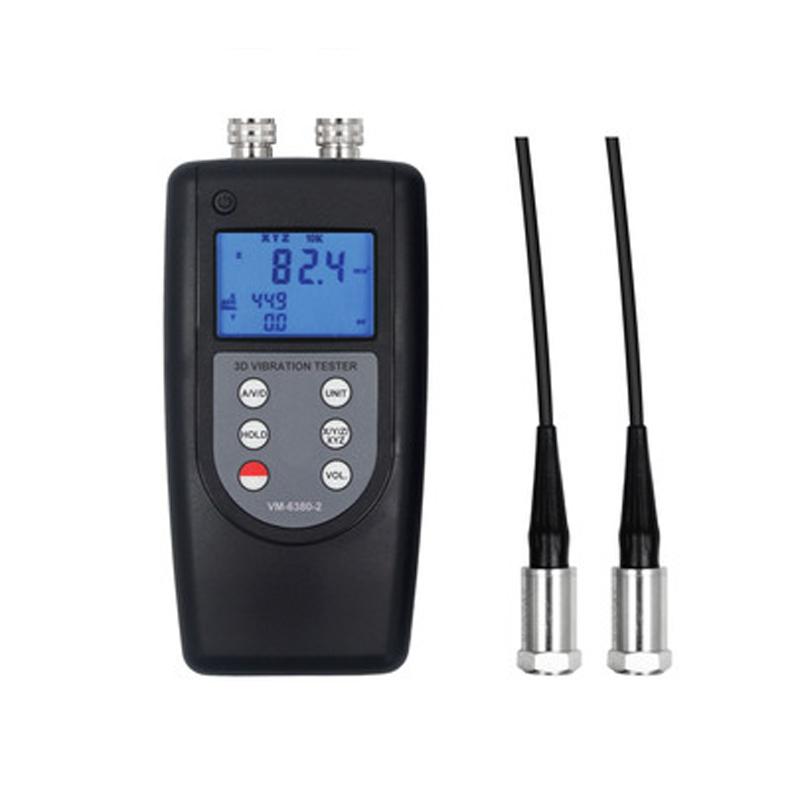

real shot

LANDTEK VM-6380-2 Vibration Meter (Dual Channel)

LANDTEK VM-6380-2 VibratIon Meter (dual channel)Specifications

LIST	VALUE
Sensors Type	Two Piezoelectric Vibration Sensors
Acceleration Measurement range	0.1~400m/s² 峰值0.3~1312ft/s² 0.0~40g
Speed Measurement range	0.01~ 400mm/s True RMS 0.004~ 16.0inch/s
Displacement Measurement range	0.001~ 4.0mm Peak-Peak 0.04~ 160.0mil
Acceleration frequency range	10Hz~10kHz
Speed frequency range	10Hz~1kHz
Displacement frequency range	10Hz~1KHz
Accuracy	± (5% n + 2) words
Operating Temperature	0~50°C
Power	4 AA batteries
Dimensions	1407335mm
Weight	415G (without battery)
Operating Humidity	<90%RH

LANDTEK VM-6380-2 VibratIon Meter (dual channel) Packing list

Host X1, magnetic suction seat X1, Piezoelectric Sensors X1, probe (cone) X1, probe (ball) X1, portable case X1, instruction manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
