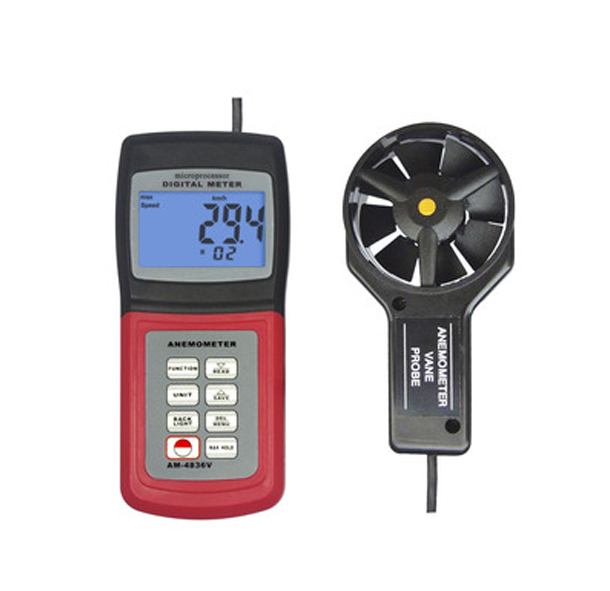

LANDTEK AM-4836V Multifunctional Anemometer
LANDTEK AM-4836V multi-function Anemometer adopts low friction bearing impeller wind speed Sensors, Sampling rate is 1s, AM-4836V multi-function Anemometer is suitable for boiler, refrigeration, HVAC, ventilated pipeline and other industries to do data collection.
LANDTEK
AM-4836V
Applications
Widely used in boilers, refrigeration, HVAC, ventilation pipes, environmental monitoring, data acquisition in marine surveys, as well as data acquisition in weather forecasts, field operations and fire departments.
Features
* Not only can measure wind speed, but also can measure wind temperature, wave height, wind level and wind volume, etc.
* Multiple measurement unit conversion.
* High sensitivity and accurate measurement, the sensor adopts ultra-low friction bearing.
* The wind speed measuring handle can be separated from the fuselage for easy measurement.
* With maximum value hold function.
* With storage function, can store 24 sets of data.
* The automatic shutdown function can be set by yourself (adjustable from 0 to 9 minutes).
*Using USB data line output, RS-232C data connection line and software to communicate with PC.
* Optional Bluetooth™ data output option is also available.
real shot
LANDTEK AM-4836V Multifunctional AnemoMeterSpecifications
| LIST | VALUE |
|---|---|
| display | 13mm 4-bit liquid crystal |
| Measurement Units - Speed | M/s, km/h, ft/min, knots |
| Measurement Units - Flow | CMM (m ³/min), CFM (ft ³/min) |
| Measurement Units - Wind Grades | Beaufort scale |
| Measurement Units - Wave Height | rice |
| Measurement Units - Temperature | °C，°F |
| data retention | MAX Maximum |
| Memory | 24 groups |
| Sampling rate | About 1 second |
| Sensors - Wind Speed | Low Friction Bearing Impeller |
| Sensors - Temperature | thermistor |
| Automatic shutdown | Set arbitrarily between 0 and 9 minutes |
| Operating temperature | 0~50°C (32~122°F) |
| Relative Humidity | <80% RH |
| Power | 4 AA batteries |
| Dimensions | 156*67*28mm |
| Dimensions - Sensors | Impeller: Diameter 72mm |
| Weight | 260G (including battery) |
| Wind speed range | 0.4~45m/s |
| Wind speed resolution | 0.1m/s |
| Wind speed Accuracy | ±(2%n+0.1m/s) |
| Flow rate | 0~9999CＭＭ |
| Flow Accuracy | ± (2% n + 0.1CMM) |
LANDTEK AM-4836V Multifunctional AnemoMeter Packing list
Host X1, portable case (B10) X1, instruction manual X1, impeller X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
