TQC Sheen SH0326 wire-wound drawdown Bar 100 µm film thickness 180mm film width
The TQC Sheen SH0326 wire-wound drawdown Bar is made of stainless steel and has good abrasion resistance. The film thickness of the SH0326 wire-wound drawdown Bar is 100μm and the film width is 180mm.
TQC sheen
SH0326
-
Japan OSP-18/400 formed applicator rod WFT 18μm length 400mm
$ 172.00 -
Japan OSP OSP-150T L250 Applicator rod wire-wound drawdown Bar WFT 150μm length 250mm
$ 152.00 -
Japan OSP OSP-180T L60 Applicator rod wire-wound drawdown Bar WFT 180μm length 60mm
$ 115.00 -
Formed rod coating, Meyer coating rod No. 35, material stainless steel, continuous wire
$ 95.00 -
Experimental wire rod Printing ink Scraping wire rod 180μm leather proofing coating bar
$ 95.00
Introduction
The coating width of the Dutch TQC filament wound experimental coating wire rod is 180mm, and the thickness of the wet film that can be prepared is 0~300μm, which supports customization.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC imported scraper is made of stainless steel, which has good acid and alkali resistance. The imported scraper can be used for the automatic coating machine.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| SH0632 | 0μm | 180 mm | 440mm | < 50 μm | stainless steel | Winding |
| SH0168 | 4μm | |||||
| SH0232 | 6μm | |||||
| SH0262 | 8μm | |||||
| SH0631 | 10μm | |||||
| SH0676 | 12μm | |||||
| SH0700 | 14μm | |||||
| SH0728 | 16μm | |||||
| SH0751 | 18μm | |||||
| SH0799 | 20μm | |||||
| SH0856 | 24μm | |||||
| SH0897 | 26μm | |||||
| SH0921 | 28μm | |||||
| SH0941 | 30μm | |||||
| SH0965 | 32μm | |||||
| SH0978 | 34μm | |||||
| SH0994 | 36μm | |||||
| SH1018 | 42µm | |||||
| SH1042 | 40μm | |||||
| SH1091 | 46μm | |||||
| SH8007 | 48μm | |||||
| SH1144 | 50μm | |||||
| SH1216 | 56μm | |||||
| SH1231 | 60μm | |||||
| SH1266 | 66μm | |||||
| SH1280 | 70μm | |||||
| SH1314 | 76μm | |||||
| SH1341 | 80μm | |||||
| SH1372 | 88μm | |||||
| SH0326 | 100μm | |||||
| SH0797 | 120μm | |||||
| SH0919 | 128μm | |||||
| SH1686 | 150μm | |||||
| SH0329 | 200μm | |||||
| SH0338 | 300μm | |||||
| SH2005 | customize |
Optional
|
|
|

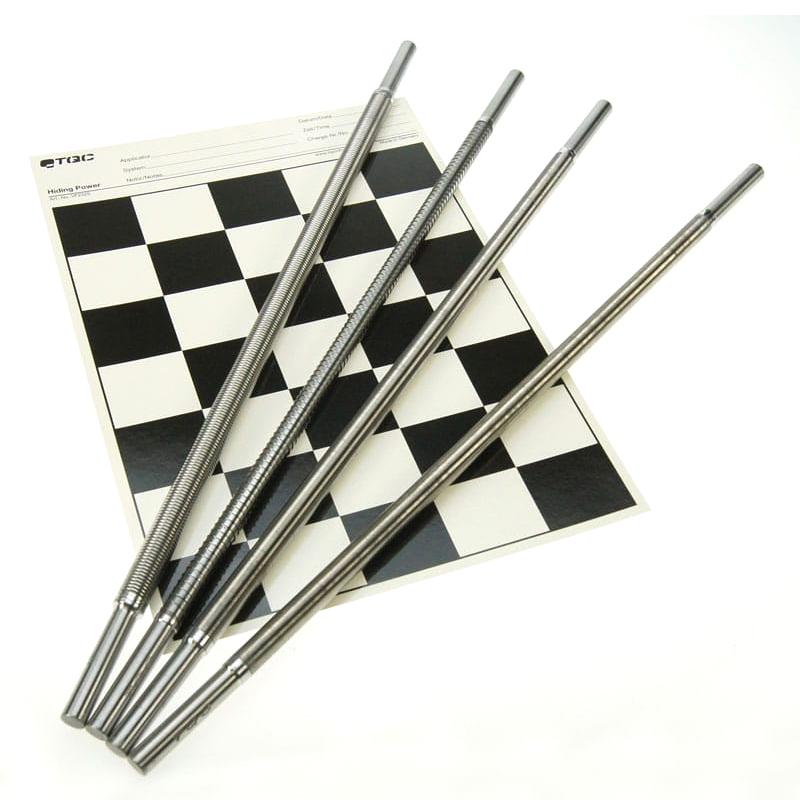

TQC sheen SH0326 Mayer RodsSpecifications
| LIST | VALUE |
|---|---|
| Production process | Wire-wound |
| WFT | 100μm |
| Total length | 300mm |
| Application width | 180mm |
| grip width | 60+60mm |
| material | stainless steel |
TQC sheen SH0326 Mayer Rods Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
