      Home> Drying Oven> Kenton> Kenton 101-2S Pointer type electric Forced Air Drying Oven

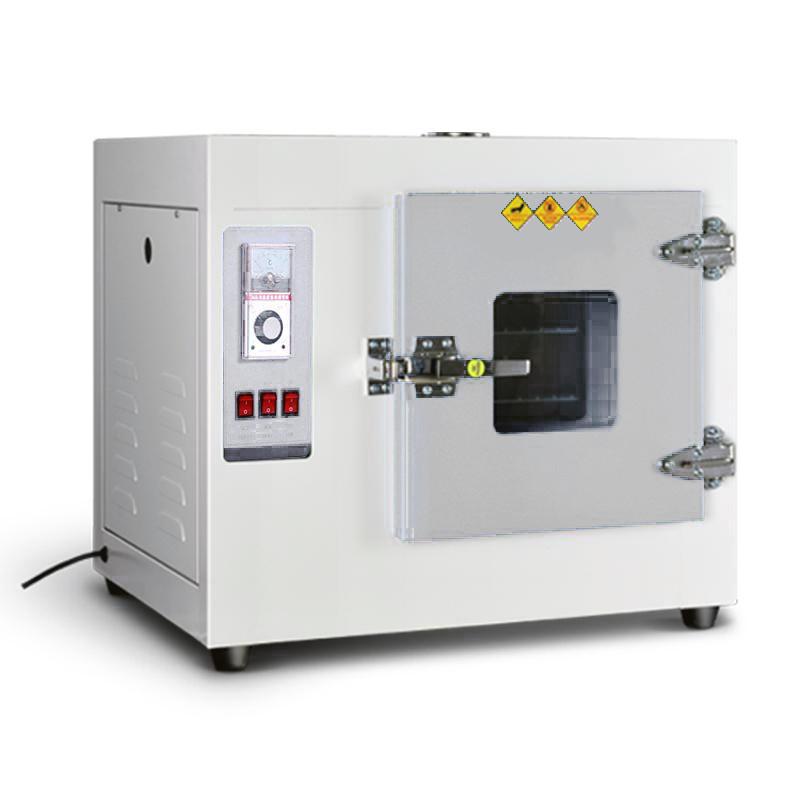

      Kenton 101-2S Dial-Type electric Forced Air Drying Oven, stainless steel 101 oven 300 ℃/136L

      Kenton 101-2S pointer electric Forced Air Drying Oven (stainless steel inner tank) is designed with 550 × 550 × 450mm inner tank space, temperature range: room temperature + 5~ 300, 101-2S has ± 1 ℃ Accuracy and ± 1% fluctuation, this series uses Fan forced convection.

      Brand
      SKU: NB021099
      China Kenton
      Stock
      Loading…
      Price
      $ 490.00
      Promotion
      Service
        Service
        The delivery and service By NBchao.Com
        VS
        Genuinegoods
        • Kenton 101-2S Pointer type electric Forced Air Drying OvenOverview

        • Specifications
        • Comments
        • FAQs
        101-2S
        Pointer type electric Forced Air Drying Oven



        Detailed picture of electric Forced Air Drying Oven 3

        Detailed picture of electric Forced Air Drying Oven 4

        Detailed picture of electric Forced Air Drying Oven 5

        Detailed picture of electric Forced Air Drying Oven 6


        Detailed picture of electric Forced Air Drying Oven 8

        Recommendations

        It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops. It is not recommended for long-term uninterrupted use. It is not recommended for samples with high temperature uniformity requirements and large moisture content. For more expensive samples, it is recommended to install an independent temperature limit controller.

        Application

        It is used for drying, baking, heat treatment, and heating by industrial and mining enterprises, laboratory scientific research units, etc., but it is not suitable for volatile, flammable, explosive and other items to avoid causing explosions.

        Structural features

        1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;

        2. The outer casing is spray-painted with metallic paint, and the overall design is beautiful and elegant;

        3. The hot air circulation system consists of low-noise fans and air ducts;

        4. The inner tank is divided into two types: mirror stainless steel and galvanized steel plate;

        5. The height and number of shelves in the studio can be adjusted to facilitate access to samples of different specifications;

        6. The box door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.

        Optional :

        1. Intelligent digital display temperature controller with timing function;

        2. Independent temperature limit controller.

        product specifications

        model

        Studio specificationsmm

        (Height × Width × Depth)

        Voltage

        power

        Temperature control range

        Accuracy

        Volatility

        Pointer type electric blast Drying Oven (galvanized inner tank)

        101-0

        350×350× 350mm

        220V

        0.8~1.6Kw

        RT+5~300

        ±1

        ±1 %

        101-1

        450×450× 350mm

        0.8~ 1.6Kw

        101-2

        550×550× 450mm

        1.6~2.4 Kw

        101-3

        750×600× 500mm

        2~ 3Kw

        ±2 %

        101-4

        1000×800× 800mm

        380V

        3~ 4.8Kw

        101-5

        1000×1000× 1000mm

        4~6

        Digital display electric Forced Air Drying Oven (galvanized liner)

        101-0A

        350×350× 350mm

        220V

        0.8~ 1.6Kw

        RT+5~300

        ±1

        ±1 %

        101-1A

        450×450× 350mm

        0.8~ 1.6Kw

        101-2A

        550×550× 450mm

        1.6~2.4 Kw

        101-3A

        750×600× 500mm

        2~ 3Kw

        ±2 %

        101-4A

        1000×800× 800mm

        380V

        3~ 4.8Kw

        101-5A

        1000×1000× 1000mm

        4~ 6Kw

        Pointer type electric Forced Air Drying Oven (stainless steel liner)

        101-0S

        350×350× 350mm

        220V

        0.8~ 1.6Kw

        RT+5~300

        ±1

        ±1 %

        101-1S

        450×450× 350mm

        0.8~ 1.6Kw

        101-2S

        550×550× 450mm

        1.6~2.4 Kw

        101-3S

        750×600× 500mm

        2~ 3Kw

        101-4S

        1000×800× 800mm

        380V

        3~ 4.8Kw

        ±2 %

        101-5S

        1000×1000× 1000mm

        4~ 6Kw

        Digital display electric Forced Air Drying Oven (stainless steel liner)

        101-0AS

        350×350× 350mm

        220V

        0.8~ 1.6Kw

        RT+5~300

        ±1

        ±1 %

        101-1AS

        450×450× 350mm

        0.8~ 1.6Kw

        101-2AS

        550×550× 450mm

        1.6~2.4 Kw

        101-3AS

        750×600× 500mm

        2~ 3Kw

        ±2 %

        101-4AS

        1000×800× 800mm

        380V

        3~ 4.8Kw

        101-5AS

        1000×1000× 1000mm

        4~ 6Kw

        VS

        Kenton 101-2S Pointer type electric Forced Air Drying OvenSpecifications

        LIST VALUE
        Temperature range RT+5~300°C
        Temperature fluctuation ±1%
        Accuracy ±1℃
        Interior size 550*550*450mm
        Inner chamber material stainless steel
        Enclosure Material Metallic paint spraying
        thermostat Pointer
        Viewing Window Yes.
        Power 220V
        Input power 1.6 ~ 2.4Kw
        Dimensions 790*870*640mm

        Kenton 101-2S Pointer type electric Forced Air Drying Oven Packing list

        complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Our laboratory needs a drying oven, which is mainly used for drying and heat treatment of conventional materials. The budget is limited. Do you have any recommendations?
        [A]
        The Kenton 101-2S Dial electric air blowing dryer is recommended. It uses Dial thermostat, which is easy to operate and low cost, and is suitable for routine testing in industrial and mining enterprises and basic laboratories. The liner is made of stainless steel, which is corrosion-resistant and easy to clean. The hot air circulation system ensures uniform temperature, which can meet the daily drying and heat treatment needs.
        [Q]
        To deal with some ordinary metal parts in the workshop, it needs to be heated to about 200 ° C. Which drying oven is suitable?
        [A]
        It is recommended to choose the 101-2S model. Temperature range RT + 5~ 300 ℃, fully covers your needs, temperature accuracy +/- 1 ℃, Fluctuation +/- 1%, can stably handle metal parts. Stainless steel liner is durable, and Inner chamber dimensions 550 × 550 × 450mm, shelf adjustable, easy to place parts of different specifications, suitable for routine heating applications in workshops.
        [Q]
        Our samples are relatively expensive, and we are worried that the temperature will get out of control. Does the drying oven have a safety protection function?
        [A]
        For valuable samples, it is highly recommended to install an independent temperature limiter as an Optional accessory. The 101-2S itself has Dial temperature control, but the independent temperature limiter can provide additional protection against temperature overruns. At the same time, it is recommended to avoid uninterrupted use for a long time, and pay attention to the sample moisture content should not be too high to ensure safe operation.
        [Q]
        Is the 101 series fan forced convection or natural?
        [A]
        101 Series with forced convection
        [Q]
        Can this drying oven be applied to GB/T16592?
        [A]
        OK
