Germany IKA T65 Pilot Disperser Basic Set 50L/7200rpm
Germany IKA T65 Disperser high-power Disperser, Processing capacity of 2~ 50l (H2O), suitable for pilot workshops. The fixed Rotation speed of the IKA T65 is 7200 rpm to ensure that users can work at high line speed even with small diameter rotors, electronic overload protection
IKA
T65 basic set
-
MODERNER P-80 dispersion blade, diameter 80mm
Login -
MUXUAN XD-E750 Laboratory Disperser frequency conversion speed regulation dispersed ground mixing equipment
$ 709.00 -
Qiwei JFS-550 Pigment high-speed variable frequency Disperser electric lift, with 2.5-liter single-layer drum
$ 557.00 -
PUSHEN PS 2816/1 Blue Devil Kuaishou Coating Rapid Dispersion Testing Machine, Floor Clip Bottle
$ 1497.00 -
Qiwei JFS-750 Coating High Speed Inverter Disperser Electric Lifting
$ 701.00
The T series dispersers are used to mix and disperse a variety of samples of different viscositiesProduct. This range of dispersers makes any application possibleVery good effect, and improve product quality and stability.

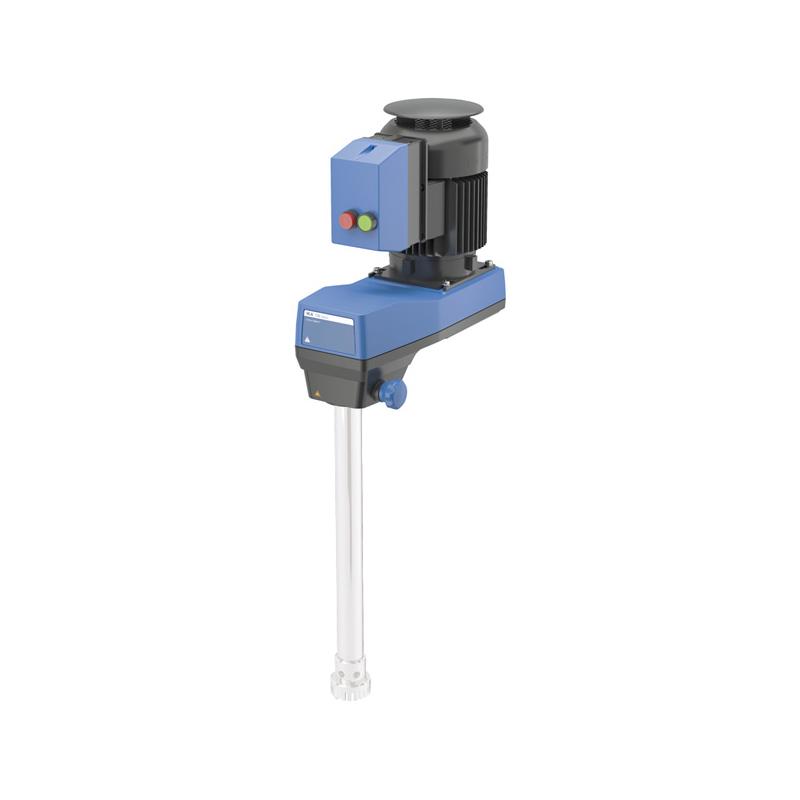

T65 basic ULTRA-TURRAX disperser
High-power disperser with a capacity of 2 - 50 l (H2O) for pilot plants. The fixed speed of 7,200 rpm ensures that the user can work at high linear speeds, even with small diameter rotors. Three stator-rotor combinations to suit different applications. The rotational speed is constant even when the viscosity changes, which effectively guarantees the repeatability of the operation.
Features
Electronic overload protection
The cord and plug are not included in the accessories and should be ordered separately if needed
The dispersion tool adopts the plug-in connection method, which is easy to disassemble
Stainless steel dispersing knives can be used in vacuum or pressure environments
IKA T65 basic set DisperserSpecifications
| LIST | VALUE |
|---|---|
| Motor Input Power | 1800W |
| Motor output power | 1500W |
| Processing Capacity | 2~50L |
| Max. Processing Viscosity | 5000mPa.s |
| Speed regulation range | 7200rpm |
| Display mode | none |
| Speed regulation mode | Rotation speed |
| Noise level | 75dB (A) when no-load |
| Extension arm diameter | flange |
| Extend arm length | flange |
| Process type | batch processing |
| Dimension | 185*400*450mm |
| Weight | 26kg |
| Environmental temperature | 5~40℃ |
| Allowable Relative Humidity | 80% |
| Protection level | IP54 DIN EN 60529 |
| Power supply Voltage | 3×400V 50Hz |
IKA T65 basic set Disperser Packing list
T65 Basic host, T653 bracket, S65 KG-HH- 65G dispersion cutter head, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
