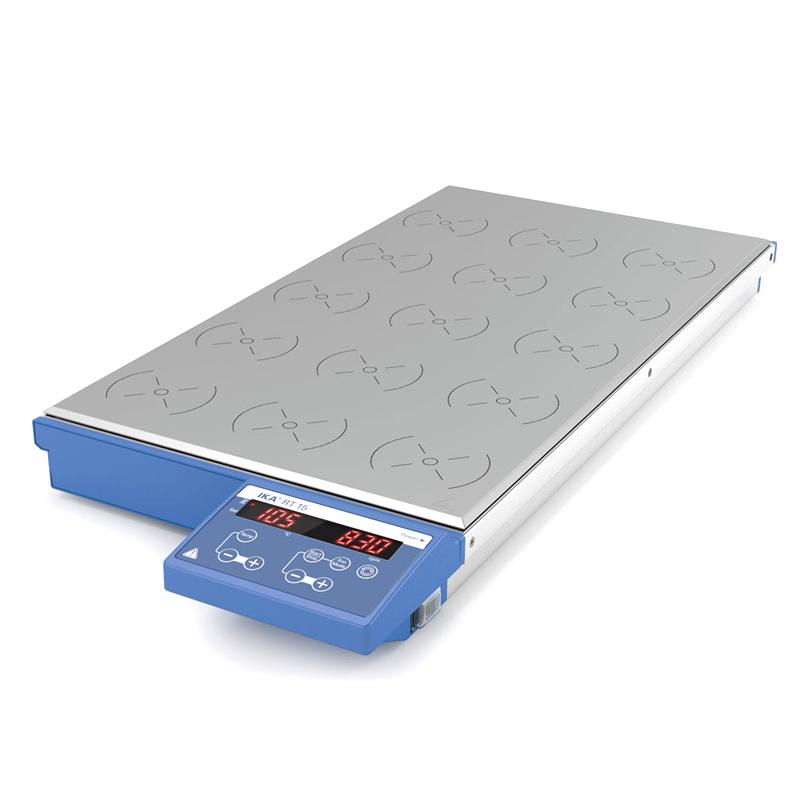

IKA RT 15 Digital heating Magnetic Stirrer 15 stations
The IKA RT 15 digital heating Magnetic Stirrer has 15 stirring stations for simultaneous stirring and heating, and the RT 15 has a BigInt display function for heating temperatures up to 120 ℃.
IKA-
BDJK HMS-10 Magnetic Stirrer
$ 980.00 -
QIWEI MC-SCL-T Mini Magnetic Stirrer Digital Display Timing Charging Model
$ 111.00 -
RONGHUA DF-4 Thermal Magnetic Stirrer 4 station independent temperature control, anti-dry burning/Oil Bath/Water Bath
$ 581.00 -
CHIJIU 85-2A Magnetic Stirrer Single Stir Type, Capacity 5000ml
$ 164.00 -
Qiwei M-SCL Mini Magnetic Stirrer, Digital Display
$ 97.00
Introduction
15-point digital display heating magnetic stirrer, suitable for simultaneous stirring and heating applications. Magnetic coil technology provides consistent, noiseless stirring at multiple points. Consistent reproducibility is achieved at all sites. The temperature of the Heating Plate is infinitely adjustable up to 120 ℃, allowing the sample temperature to be heated up to 70 ℃ (depending on the container type). The rotational speed is constant, even if the load capacity changes.
The temperature of the Heating Plate is evenly distributed
Adjustable forward and reverse operation
Economic mode Heating Plate can automatically heat at low temperatures
Wear-free magnetic coil
Error code display function
Touch keys for easy operation
Suitable for continuous operation
The speed is adjustable in steps of 10 rpm

IKA RT series magnetic stirrer model comparison
| model | RT 5 | RT 10 | RT 15 |
| Number of stirring points | 5 | 10 | 15 |
| Stirring point spacing | 90 mm | ||
| Rotation speed deviation of a single stirring point | 0% | ||
| Maximum stirring volume (H2O) | 0.4 l | ||
| Speed ââcontrol | 10 RPM Steps | ||
| speed range | 0-1000rpm | ||
| Stirrer length | 25-30mm | ||
| Heating output power | 175W | 375W | 580W |
| Heating temperature range | Room temperature - 120 ℃ | ||
| Heating temperature control | led | ||
| Heating speed | 3 K/min | ||
| Adjustable safety temperature circuit min. | 50-150℃ | ||
| Work plate material | Aluminum alloy | ||
| Overall dimensions of work plate | 110x495mm | ||
| Dimensions | 120x60x610mm | ||
| weight | 4kg | 7.5kg | 10.5kg |
| allowable ambient temperature | 5-40℃ | ||
| allowed Relative Humidity | 80% | ||
| DIN EN 60529 protection methods | IP 40 | ||
| Voltage | 230/115/100V | ||
| frequency | 50/60 Hz | ||
| Instrument input power | 200W | 410W | 620W |
IKA RT 15 Magnetic StirrerSpecifications
| LIST | VALUE |
|---|---|
| station number | 15 stations |
| Max. Capacity of stirring | 400mL |
| Stirring speed | 0~1000rpm |
| Speed regulation mode | 10 RPM Steps |
| Temperature range | RT+~120℃ |
| Safety protection temperature | 50~150℃ |
| Heating power | 580W |
| Input Power | 620W |
| Mixer size | 25~30mm |
| Pan size | 270*495mm |
| Panel Material | aluminum alloy |
| Dimensions | 280*60*610mm |
| Power | 230/115/100V 50/60 Hz |
| Machine Weight | 10.5kg |
| Protection level | IP40 |
| Ambient Temperature | 5~40℃ |
| Allowable Relative Humidity | 80% |
| Mixing point spacing | 90mm |
| Temperature control mode | LED |
| Heating speed | 3 K/min |
IKA RT 15 Magnetic Stirrer Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
