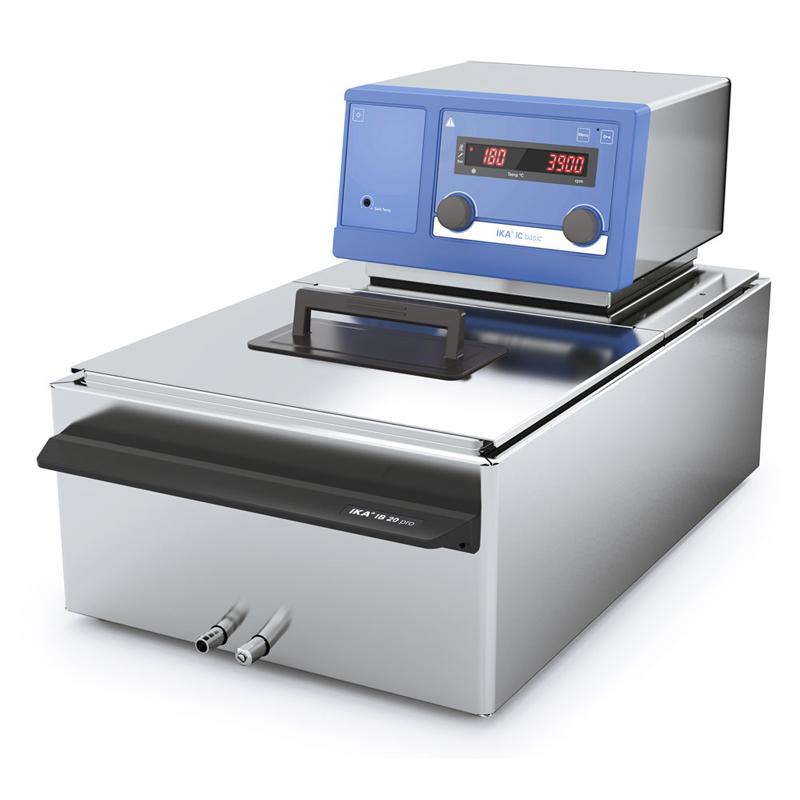

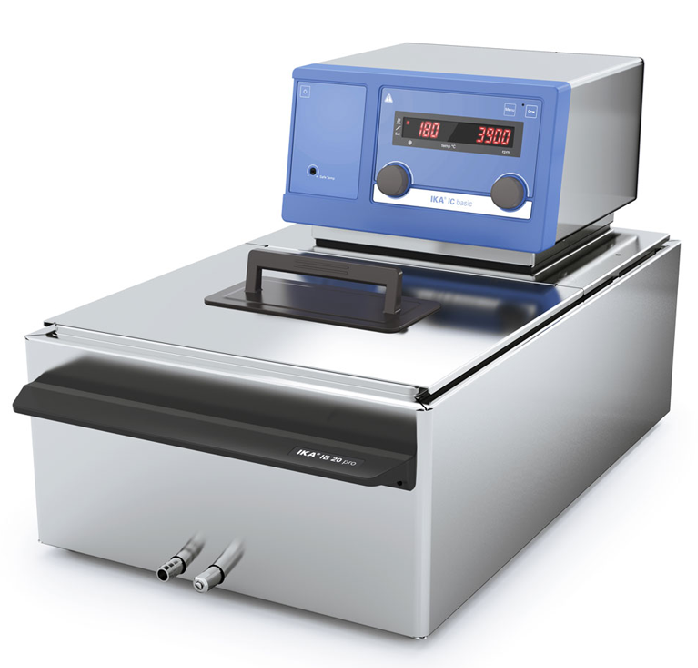

IKA IC basic pro 20 c immersion heating circulator
Germany IKA IC basic pro 20 c uses IB 20 pro stainless steel bath (size L), is a basic immersion heating circulator, IC basic pro 20 c Temperature range is 0~200 ℃.
IKA
IC basic pro 20 c
-
BOZHEN BZ-300 Low temperature Thermostatic Water Bath -5~ 95 ℃/15L
$ 1449.00 -
NELE DC-3010 Thermostatic Bath vertical 10L/-30 ℃ +/- 0.05 ℃
$ 1252.00 -
NELE DC-3030 Thermostatic Bath Vertical 30L/-30 ℃ +/- 0.05 ℃
$ 2919.00 -
SDPTOP DC-2020 Low Temperature Thermostat -20~95 ℃/20L
$ 1750.00 -
Shangtian Jingyi DHC-2020N (0.01) High-low temperature Thermostatic Bath Cyclic refrigeration Thermostatic Bath -20~160 ℃/20L
$ 2232.00
Introduction
IKA offers a "complete" package that includes all the necessary accessories to greatly simplify the configuration of the temperature control system.
Products include:
IC Basic Immersion Heating Circulator
IB 20 pro Stainless Steel Bath (Size L)
PT 100.30 temperature sensor
CC1 Cooling Spiral
CM.IC medium cap
BS. IC S Bath Bridge
Dimensions: 354 x 641 x 359 mm
Available bath opening dimensions: 255 x 262 mm *
Maximum bath opening size: 292 x 278 mm **
Suitable immersion depths for matching baths: 95 mm–135 mm
*The maximum size that can be placed on the bottom of the bath.
*Maximum opening size on the upper edge of the bath
Maximum temperature in stainless steel baths ("pro" series): 200 °C
IKA IC basic pro 20 c ThermostatSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | 200℃ |
| Temperature sensor | Pt100 |
| Temperature sensor | Pt100 |
| Tank opening Dimensions | 255*262mm |
| Pump type | Pressure/suction pump |
| Flow rate of pump | Adjustable |
| Power supply Voltage | 230 / 115 V |
| Dimensions | 285*313*291mm |
| Net Weight of the whole machine | 26.06kg |
IKA IC basic pro 20 c Thermostat Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
