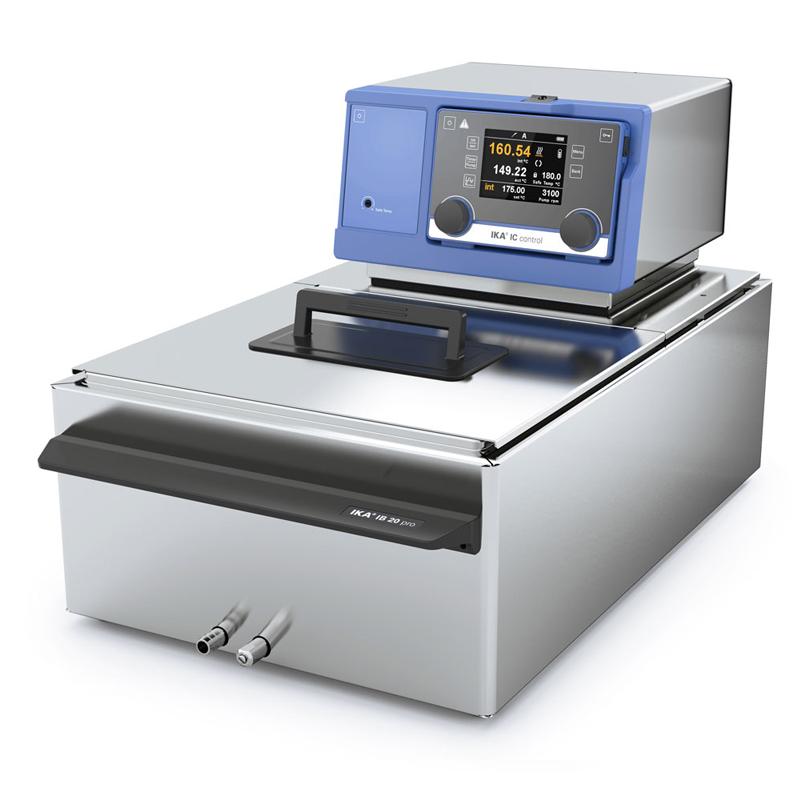

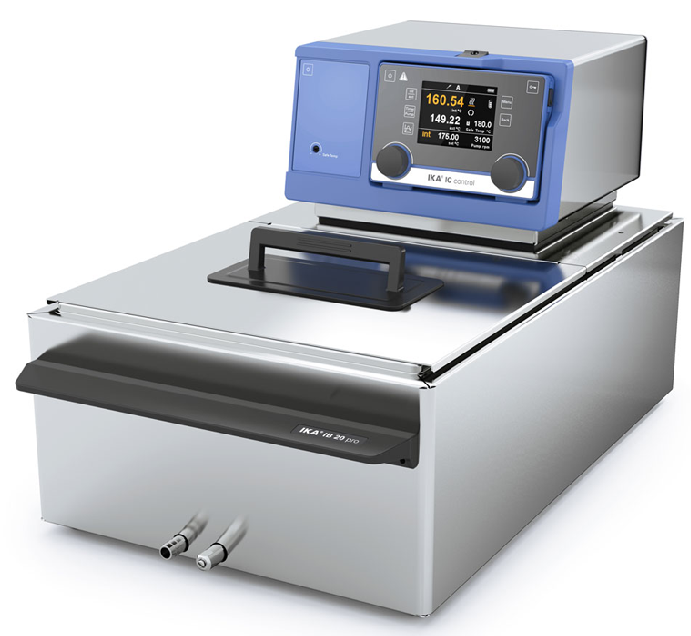

IKA IC control pro 20 c immersion heating circulator

Introduction

IKA offers a "complete" package that includes all the necessary accessories to greatly simplify the configuration of the temperature control system.

Products include:

IC-controlled immersion heating circulator

IB 20 pro Stainless Steel Bath (Size L)

PT 100.30 temperature sensor

CC1 Cooling Coils (available with IC-controlled equipment)

CM.IC medium cap

BS. IC S Bath Bridge

Dimensions: 354 x 641 x 359 mm

Available bath opening dimensions: 255 x 262 mm *

Maximum bath opening size: 292 x 278 mm **

Suitable immersion depths for matching baths: 95 mm–135 mm

*The maximum size that can be placed on the bottom of the bath.

*Maximum opening size on the upper edge of the bath

Maximum temperature in stainless steel baths ("pro" series): 200 °C

Technical data on temperature control instruments included in the package

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
