KSJ MG268-F2 Intelligent Gloss Meter

KSJ MG268-F2 intelligent Gloss meter is a three-angle Glossiness Meter, also known as a light meter. The measurement Gloss range is 0~2000GU. The MG268-F2 intelligent Gloss meter can complete multi-angle measurement with one key.

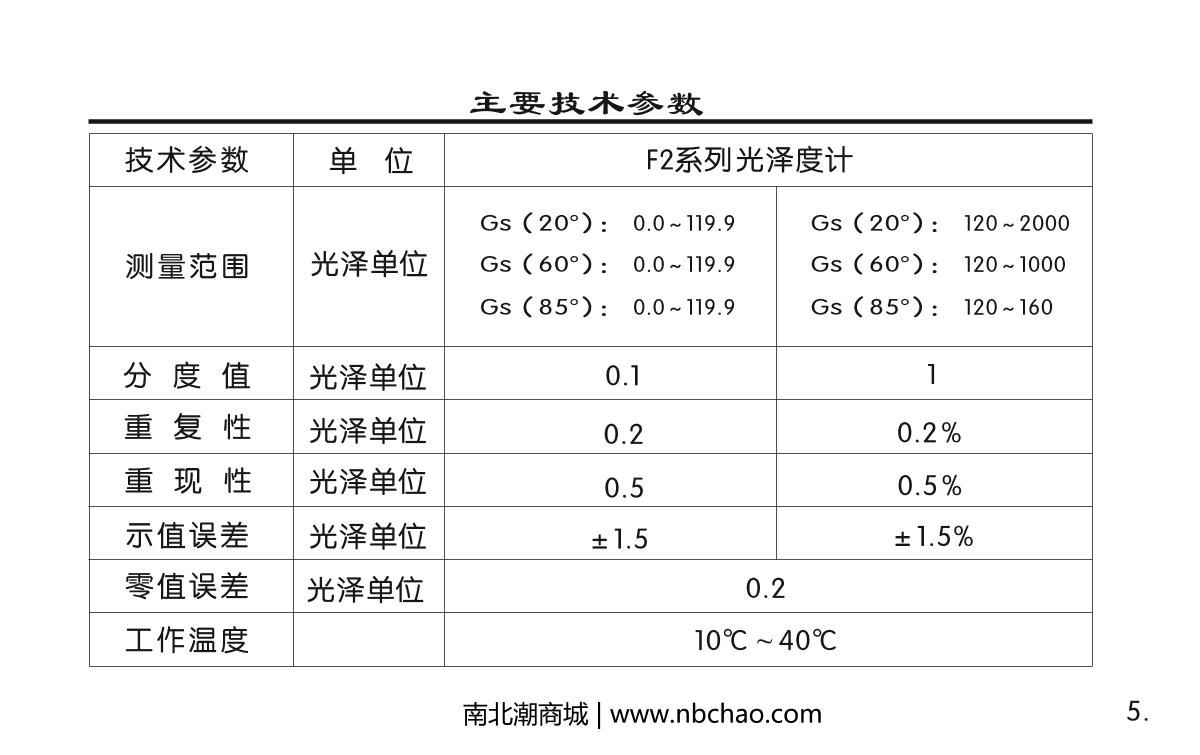

KSJ MG268-F2 Intelligent Gloss MeterKey Spec.

Geometry
20°/60°/85°
Measuring range
Gs(20°)：0~119.9、 Gs(60°)：0~119.9、 Gs(85°)：0~119.9；Gs(20°)：120~2000、 Gs(60°)：120~1000 、Gs(85°)：120~160
Measuring Areas
9*10mm(20°)；9*16mm(60°)；5*39mm(85°)
MG268-F2 Intelligent Gloss Meter
Details

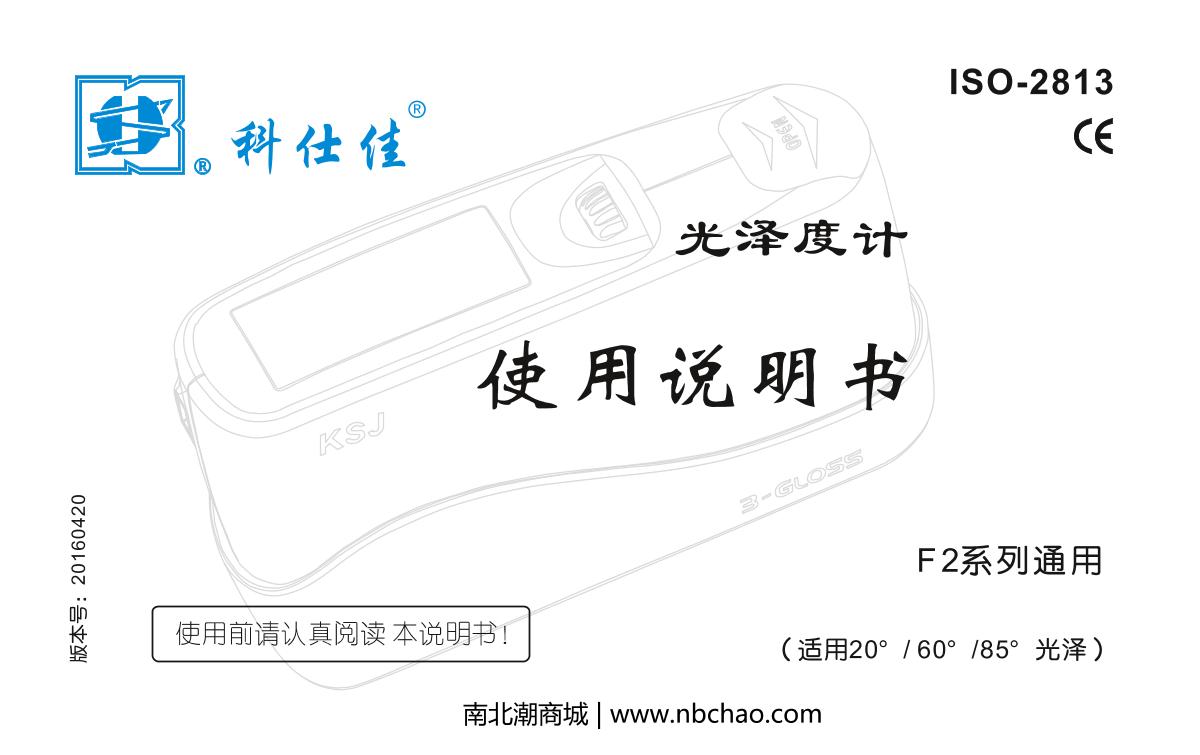

KSJ MG268-F2 Intelligent Gloss MeterManual page 1
KSJ MG268-F2 Intelligent Gloss MeterManual page 2
KSJ MG268-F2 Intelligent Gloss MeterManual page 3
KSJ MG268-F2 Intelligent Gloss MeterManual page 4
KSJ MG268-F2 Intelligent Gloss MeterManual page 5
36 page unread, continue reading?
This manual is collected and sorted by the NBCLab, and does not guarantee the timeliness and accuracy. It is only for reference.
