KSJ WGG60-Y4 gloss meter Reading Range 0.0~199.9GU

KSJ WGG60-Y4 gloss meter Measuring Area is 36x18mm, is a portable digital gloss meter, WGG60-Y4 display is 31/2 digital display, WGG60-Y4 gloss meter is suitable for paints, paint, architectural coatings, marble, ceramics, water paint, metal, plastic and other surface gloss measurement.

Brand

SKU: NB002167

KSJ

Model

Get Quote

KSJ shop

Information

Datasheet Catalog Manual

What else did others buy

QILI FMN268 Transcendent Glossmeter

$ 1322.00
QILI MN75 paper Glossmeter paper Glossmeter

$ 487.00
AMITTARI AG-126B 20 ° & 60 ° dual angle portable Glossmeter

$ 312.00
3NH NHG60M gloss Measurement Instrument 60 degree microporous precision gloss Measurement Instrument

Login
QILI MN60-D Glossmeter metal, paint dual-use mirror Glossiness Tester

$ 389.00

Genuinegoods

KSJ Gloss meterOverview
Specifications
Comments
FAQs

Gloss meter

product description

Palm size, easy to carry.

Built-in rechargeable battery pack. A full charge can last for more than 24 hours.

Application scope

âMeasurement of surface gloss of paint, baking varnish, paint, ink, etc.

âBuilding decoration materials: surface gloss measurement of marble, granite, vitrified polished tiles, ceramic tiles, etc.

âMeasurement of surface gloss of plastic, paper, bamboo and wood.

âSurface gloss measurement of various other non-metallic and metallic materials.

Structure diagram

Cosjia WGG60-Y4 gloss meter structure diagram

Cosjia WGG60-Y4 gloss meter working plate

Standards compliant

WGG60-Y4 gloss meter complies with the standards ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Plate" metrological verification regulations for first and second level working machines. Require. The gloss value of the WGG60-Y4 gloss meter can be traced to the Shanghai Institute of Metrology and Testing Technology (SIMT) glossiness international benchmark.

plan

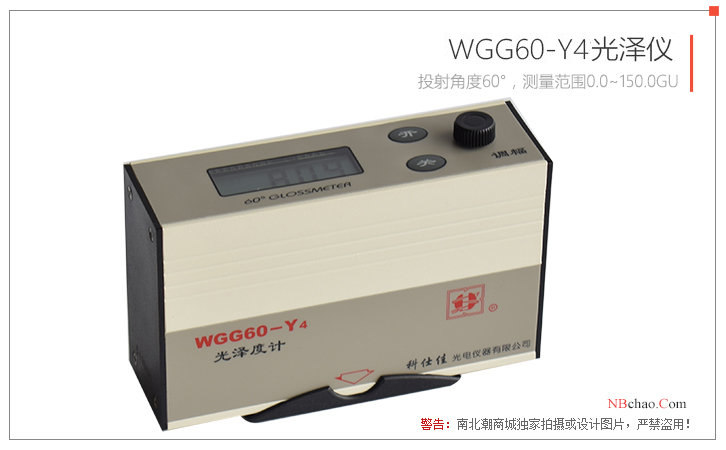

Koshijia WGG60-Y4 gloss meter display picture

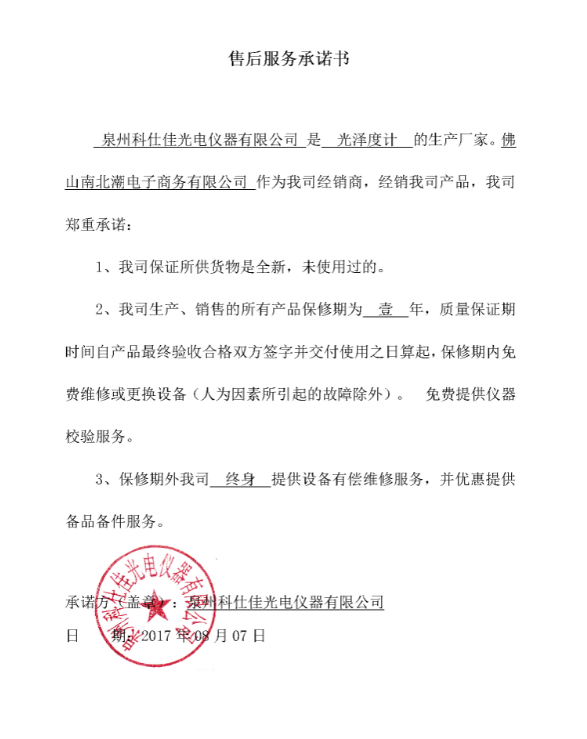

Ke Shijia after-sales service commitment letter

KSJ Gloss meterSpecifications

LIST	VALUE
Measurement angle	60°
Measurement range	0~199.9GU
Measuring Areas	18*36mm
Error of indication	±1.2GU
Graduation	0.1GU
Standards	ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Display	31/2 digit digital display
Dimensions	1304080mm
Weight	430g
Power	Built-in Ni-MH battery pack 4x1.2V
Measurement port size	20*50mm
Reading Range	0~199.9GU
Zero Error	0.2GU
Stability	0.4GU
Operating Time	Power-on continuous use time > 48h
Charging time	14~16h
Charger	AC 187~ 242 (50Hz)

KSJ Gloss meter Packing list

Host x1, Certificate x1, Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Test Marble Glossiness, Can You Use KSJ Y4?

[A]

Sure.

[Q]

How is this WGG60-Y4 gloss instrument adjusted?

[A]

Hello, adjustment method: Turn on the power supply, remove the dust cover, and place the measuring port on the adjustment work board (black Glass). After half a minute, adjust the "adjustment" button to make the displayed value equal to the verification value of the black work board. Note that the measuring port of the Gloss meter needs to be buckled into the positioning frame of the work board, and the adjustment indication is valid.

[Q]

How long can the WGG60-Y4 Gloss meter last on a single charge?

[A]

Hello, the WGG60-Y4 gloss meter can be turned on and used for more than 24 hours after being fully charged.
