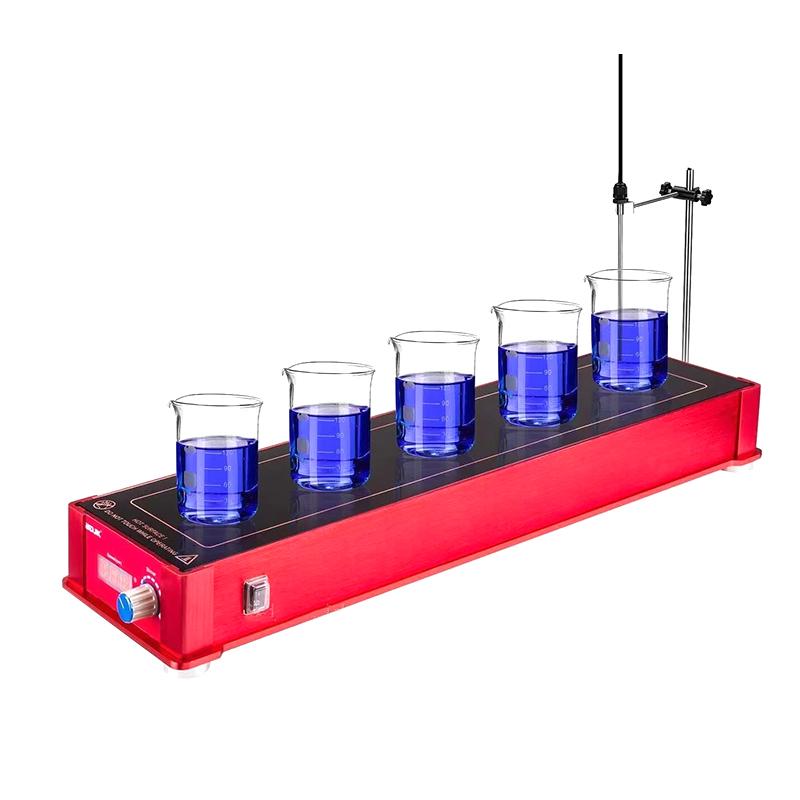

BDJK HMS-5H Five-station heating Magnetic Stirrer Hexavalent Chromium Testing Stirrer
The heating module of BDJK HMS-5H multi-point heating Magnetic Stirrer adopts nano thermal energy technology and can heat and stir containers of various shapes and sizes of 1~ 500ml standard or non-standard. The stirring speed of HMS-5H is 0~1100rpm.
bdjk-
HUXI HMS-8MD Synchronous Control 8 Station Magnetic Stirrer Timing 8 × 1000ml/2200rpm
$ 576.00 -
RONGHUA Instrument 99-1 Dual digital display high power thermostatic magnetic heating Stirrer 10L
$ 221.00 -
HUXI HMS-10 Digital Magnetic Stirrer 10L/1800rpm
$ 221.00 -
RONGHUA JB-15 Multi-connection Bidirectional Magnetic Stirrer 15 Station, Bidirectional Timing Stir
$ 1081.00 -
CHIJIU 84-1A (4) Four-station Magnetic Stirrer Stir Capacity 1500mlx4
$ 349.00
Product Description
HMS series multi-point digital display magnetic stirrer has 5 working positions, 10 working positions and 15 working positions respectively, with and without heating functions. It has a novel and beautiful appearance design, easy operation, continuously adjustable stirring speed, and stable operation of the instrument. Smooth and quiet, Heating Plate temperature can be set arbitrarily from room temperature to 200 ℃, and the sample temperature can be heated up to 100 ℃.
The heating module adopts nano thermal energy technology, which has fast heating, large heating area and uniform heating; it is suitable for experiments such as large-scale sample screening, culture, sample concentration, solvent evaporation, etc.
It is widely used in medical, biological, petroleum, chemical, environmental protection and other fields. It is a good helper in major and middle schools, scientific research units, inspection and quarantine, health and epidemic prevention and other experiments;
Features
1. The heating module adopts nano thermal energy technology, has no mechanical heating components, can be dry-fired, has no electromagnetic field interference and hazards, has a large heating area, is heated evenly, and can heat up very quickly;
2. Can heat and stir containers of various shapes and sizes from 1 to 500ml standard or non-standard;
3. Using DC motor, it has stable performance, low noise, long life, stable at low speed and strong at high speed;
4. The body is made of aluminum oxide alloy and has a novel and beautiful appearance design;
5. The working panel is made of German microcrystalline ceramics, which is acid, alkali and high temperature resistant and easy to clean;

Specifications
model | HMS-05/HMS-05H | HMS-10/HMS-10H | HMS-15/HMS-15H |
Voltage(VAC) | 220V/110V | 220V/110V | 220V/110V |
frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Rotating speed | 0rpm,100~1100rpm | ||
temperature range | --/ Board surface temperature: Ambient ~200℃, Sample temperature: Ambient ~120℃ | ||
Maximum mixing volume | 2.5L | 5L | 7.5L |
maximum capacity | 500ml | ||
Standard stirrer size | Φ12Ã35mm | ||
Working surface size | 140Ã540mm | 240Ã540mm | 340Ã540mm |
Work panel material | Microcrystalline ceramics | ||
Number of stirring positions | 5 | 10 | 15 |
Stirring point spacing | 90mm | ||
Maximum stirrer length | â¤40mm | ||
maximum power | --/300W | --/600W | --/800W |
Motor input power | 7.2 W | 14W | 30W |
Motor output power | 1.8 W | 4W | 6W |
ambient temperature | 5℃~40℃ | ||
environment humidity | <90% | ||
weight | 4.2kg | 6.7kg | 7.2kg |
Dimensions | 160Ã560Ã80mm | 260Ã560Ã80mm | 360Ã560Ã80mm |
bdjk HMS-5H Multi-point heating Magnetic StirrerSpecifications
| LIST | VALUE |
|---|---|
| station number | 5 stations |
| Max. Capacity of stirring | 2.5L |
| Stirring speed | 100~1100rpm |
| Temperature range | Plate Temperature: Ambient~ 200 ℃, Sample Temperature: Ambient~ 120 ℃ |
| Heating power | 300W |
| Input Power | 7.2W |
| Mixer size | Φ12*35mm |
| Pan size | 140*540mm |
| Panel Material | microcrystalline ceramics |
| Dimensions | 160*560*80mm |
| Power | 220V/110V |
| Machine Weight | 4.2kg |
| Ambient Temperature | 5~40℃ |
| Allowable Relative Humidity | <90% |
| Rated Frequency | 50/60Hz |
| Max. Capacity of stirring | 500mL |
| Mixer size | ≤40mm |
| output power | 1.8W |
bdjk HMS-5H Multi-point heating Magnetic Stirrer Packing list
host x1, stirrer x1, Sensors x2, power cable x1, bracket x1 set, instruction manual x1, warranty card x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
