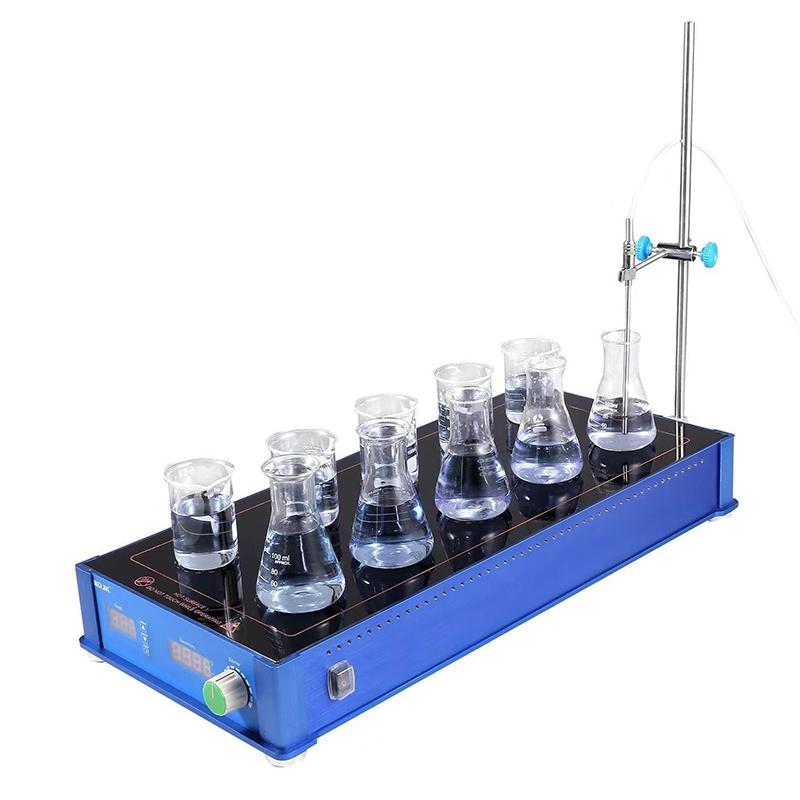

      bdjk HMS-10H Multi-point heating Magnetic Stirrer

      BDJK HMS-10H Multi-point heating Magnetic Stirrer

      BDJK HMS-10H multi-point heating Magnetic Stirrer has a Max. stirring Capacity of 5L and 10 working stations. The HMS-10H multi-point heating Magnetic Stirrer can heat and stir containers of various shapes and sizes from 1 to 500ml standard or non-standard.

      Brand
      SKU: NB021700
      China bdjk
      Model
      Stock
      Loading…
      Price
      $ 1213.00
      Promotion
      Service
        Service
        The delivery and service By NBchao.Com
        VS
        Genuinegoods
        • bdjk HMS-10H Multi-point heating Magnetic StirrerOverview

        • Specifications
        • Comments
        • FAQs
        HMS-10H
        Multi-point heating Magnetic Stirrer

        Product Description

        HMS series multi-point digital display magnetic stirrer has 5 working positions, 10 working positions and 15 working positions respectively, with and without heating functions. It has a novel and beautiful appearance design, easy operation, continuously adjustable stirring speed, and stable operation of the instrument. Smooth and quiet, Heating Plate temperature can be set arbitrarily from room temperature to 200 ℃, and the sample temperature can be heated up to 100 ℃.

        The heating module adopts nano thermal energy technology, which has fast heating, large heating area and uniform heating; it is suitable for experiments such as large-scale sample screening, culture, sample concentration, solvent evaporation, etc.

        It is widely used in medical, biological, petroleum, chemical, environmental protection and other fields. It is a good helper in major and middle schools, scientific research units, inspection and quarantine, health and epidemic prevention and other experiments;

        Features

        1. The heating module adopts nano thermal energy technology, has no mechanical heating components, can be dry-fired, has no electromagnetic field interference and hazards, has a large heating area, is heated evenly, and can heat up very quickly;

        2. Can heat and stir containers of various shapes and sizes from 1 to 500ml standard or non-standard;

        3. Using DC motor, it has stable performance, low noise, long life, stable at low speed and strong at high speed;

        4. The body is made of aluminum oxide alloy and has a novel and beautiful appearance design;

        5. The working panel is made of German microcrystalline ceramics, which is acid, alkali and high temperature resistant and easy to clean;

        Specifications

        model

        HMS-05/HMS-05H

        HMS-10/HMS-10H

        HMS-15/HMS-15H

        Voltage(VAC)

        220V/110V

        220V/110V

        220V/110V

        frequency

        50/60 Hz

        50/60 Hz

        50/60 Hz

        Rotating speed

        0rpm,100~1100rpm

        temperature range

        --/     Board surface temperature: Ambient ~200℃, Sample temperature: Ambient ~120℃

        Maximum mixing volume

        2.5L

        5L

        7.5L

        maximum capacity

        500ml

        Standard stirrer size

        Φ12×35mm

        Working surface size

        140×540mm

        240×540mm

        340×540mm

        Work panel material

        Microcrystalline ceramics

        Number of stirring positions

        5

        10

        15

        Stirring point spacing

        90mm

        Maximum stirrer length

        ≤40mm

        maximum power

        --/300W

        --/600W

        --/800W

        Motor input power

        7.2 W

        14W

        30W

        Motor output power

        1.8 W

        4W

        6W

        ambient temperature

        5℃~40℃

        environment humidity

        <90%

        weight

        4.2kg

        6.7kg

        7.2kg

        Dimensions

        160×560×80mm

        260×560×80mm

        360×560×80mm


        VS

        bdjk HMS-10H Multi-point heating Magnetic StirrerSpecifications

        LIST VALUE
        station number 10 workstations
        Max. Capacity of stirring 5L
        Stirring speed 100~1100rpm
        Temperature range Plate Temperature: Ambient~ 200 ℃, Sample Temperature: Ambient~ 120 ℃
        Heating power 600W
        Input Power 14W
        Mixer size Φ12*35mm
        Pan size 240*540mm
        Panel Material microcrystalline ceramics
        Dimensions 260*560*80mm
        Power 220V/110V
        Machine Weight 6.7kg
        Ambient Temperature 5~40℃
        Allowable Relative Humidity <90%
        Rated Frequency 50/60Hz
        Max. Capacity of stirring 500mL
        Mixer size ≤40mm
        output power 4W

        bdjk HMS-10H Multi-point heating Magnetic Stirrer Packing list

        host x1, stirrer x1, Sensors x2, power cable x1, bracket x1 set, instruction manual x1, warranty card x1.

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Does this Magnetic Stirrer comply with GB/T33546 standard?
        [A]
        The multi-point heating Magnetic Stirrer is suitable for GB/T33546. Please consult customer service for detailed application definition.
